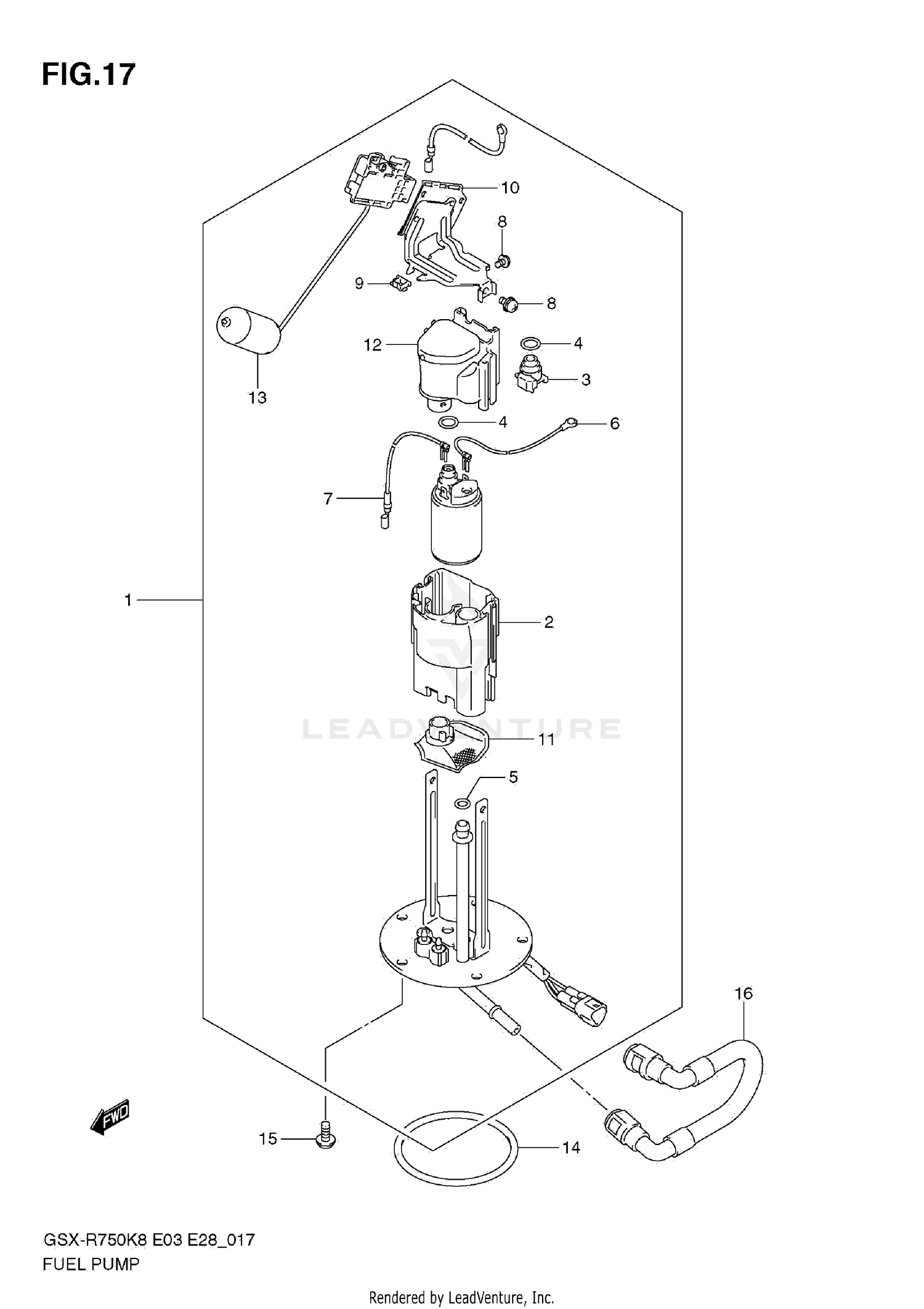

2009 Suzuki GSX-R 750 FUEL PUMP OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PUMP ASSY,FUEL
15100-37H00
Superseded by 15100-37H01
|
$760.67 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
CUP, RESERVOIR
15111-27G00
|
$37.17 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
JOINT
15112-05H00
|
$24.75 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
O RING
15113-05H00
|
$20.68 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
O RING
15113-35F00
|
$9.22 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
WIRE, EARTH
15114-27G00
|
$23.56 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
WIRE, LEAD
15115-27G00
|
$24.76 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
SCREW
15116-10F00
|
$4.89 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
SADDLE, EDGE
15119-23H00
|
$8.94 | ||
|
Unavailable |
|||
|
#10
BRACKET, GAUGE
15181-37H00
|
$27.40 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
STRAINER
15420-05H00
|
$42.62 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
REGULATOR
15610-27G00
|
$170.75 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
GAUGE ASSY, FUEL LEVEL
34810-37H00
|
$189.18 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
O-RING
15201-35F00
|
$28.58 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
BOLT
07120-0612A
|
$2.47 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
HOSE,FUEL
15810-37H00
Superseded by 15810-37H01
|
$68.62 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
