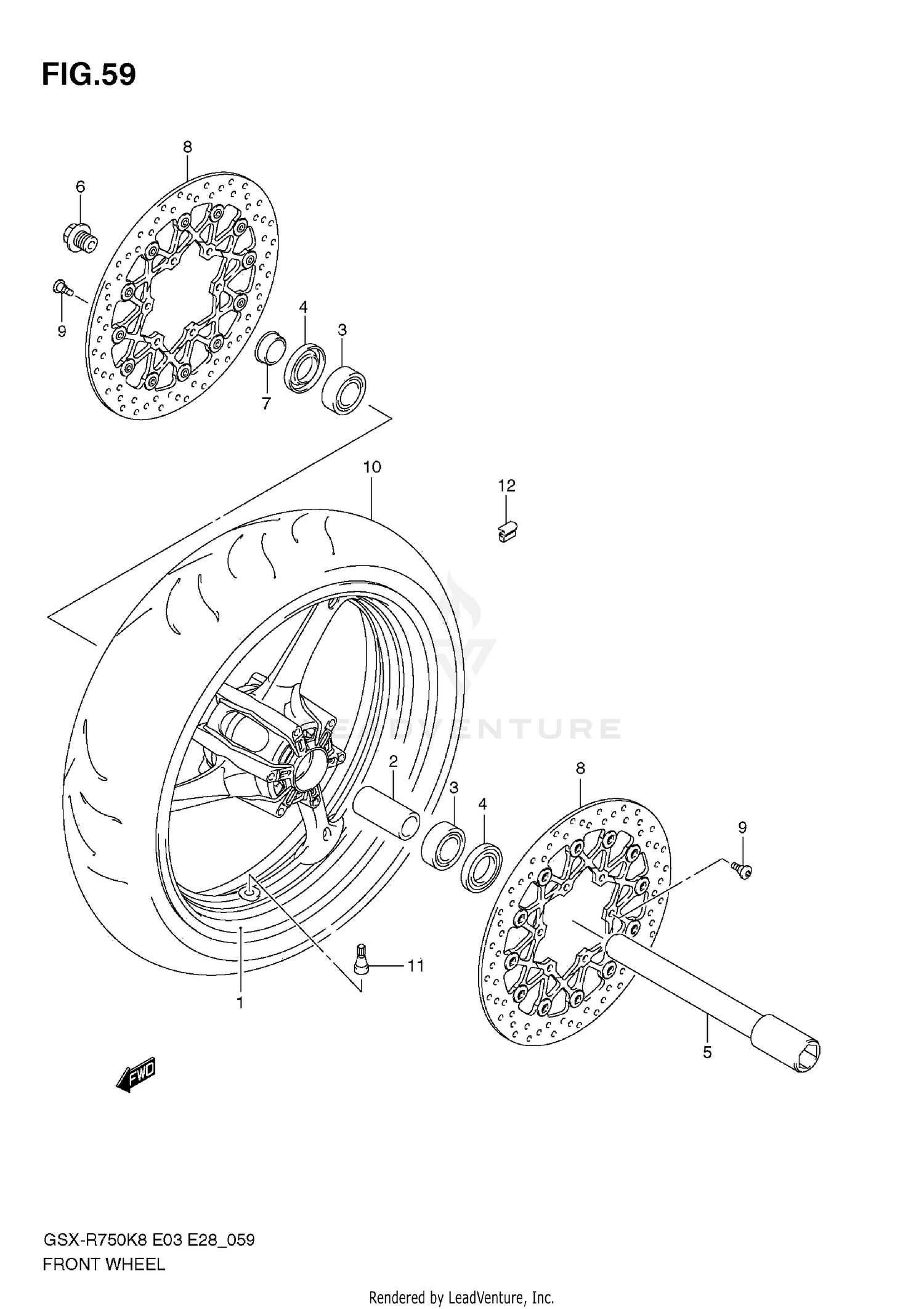

2009 Suzuki GSX-R 750 FRONT WHEEL OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WHEEL, FRONT (17M/CXMT3.50) (BLACK)
54111-37H00-019
|
$889.94 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#1
WHEEL, FRONT (17M/CXMT3.50) (BLUE)
54111-37H00-YLY
|
$889.94 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#1
WHEEL, FRONT (17M/CXMT3.50) (SILVER)
54111-37H00-YMY
|
$889.94 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
SPACER,FR HUB BEARING
54731-35F10
|
$38.77 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
BEARING (25X52X15)
09262-25061
|
$33.04 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
SEAL (32X52X7)
09285-32004
|
$7.94 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
AXLE, FRONT
54711-41G00
|
$142.26 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
BOLT, FRONT AXLE
54712-41G00
Superseded by 54712-41G10
|
$16.75 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
SPACER, FRONT AXLE, RH
54751-41G00
Superseded by 54751-41G10
|
$20.36 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
DISC,FRONT BRAKE
59210-37H00
Superseded by 59210-37H01
|
$418.03 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
BOLT
09106-06124
|
$3.41 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
TIRE, FRONT, 120/70 ZR17M/C (58W)(BRIDGESTONE)
55110-38H00
|
$301.57 | ||
|
Unavailable |
|||
|
#11
VALVE ASSY, WHEEL RIM (TR412)
43130-24A00
|
$9.16 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
BALANCER, WHEEL NO.1
55411-22H00
|
$7.54 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
BALANCER, WHEEL NO.2
55412-22H00
|
$8.82 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
BALANCER, WHEEL NO.3
55413-22H00
|
$10.03 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
