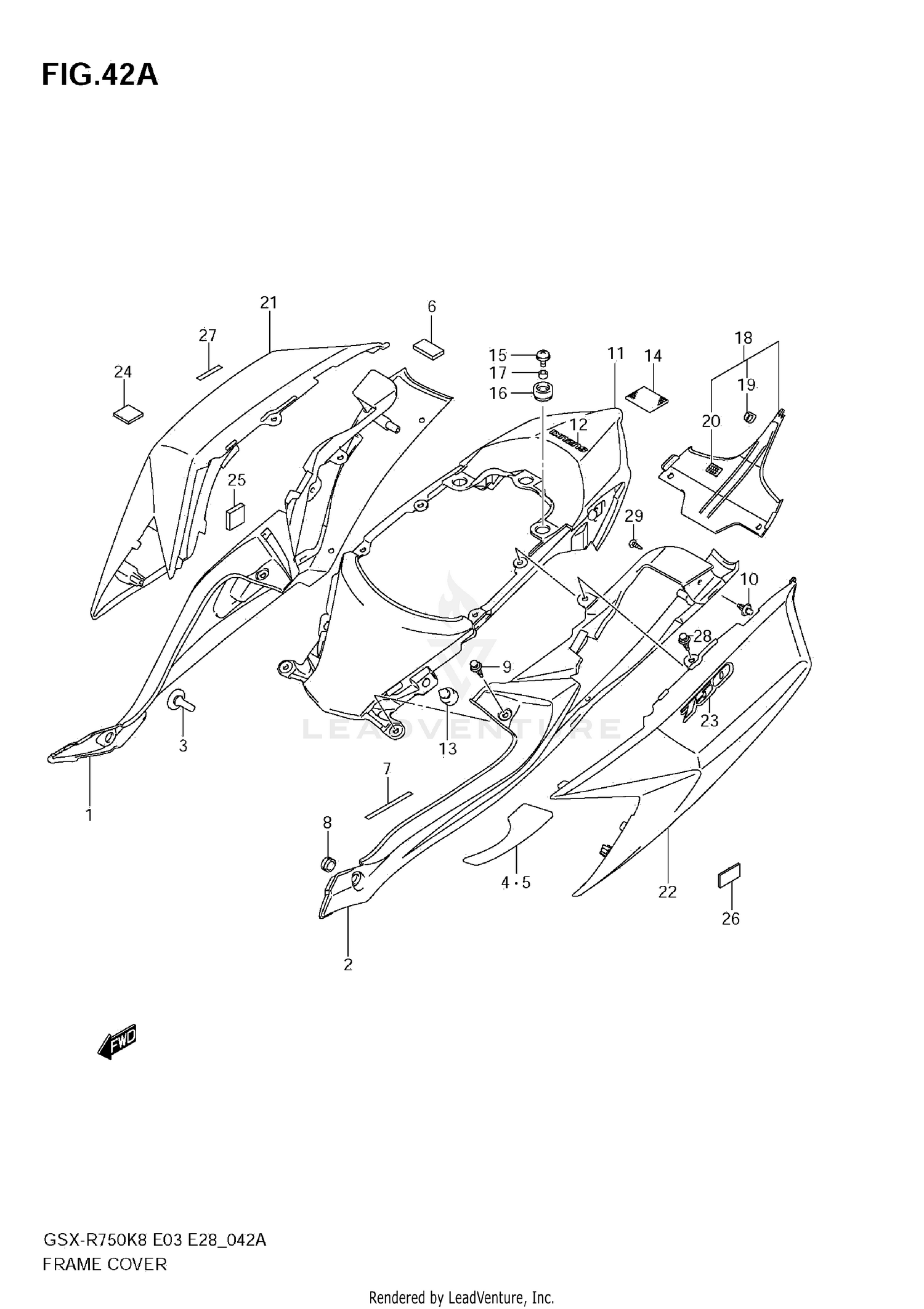

2009 Suzuki GSX-R 750 FRAME COVER (MODEL K9) OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, FRAME RH (BLACK)
47110-37H00-019
|
$189.18 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#1
COVER, FRAME RH (SILVER)
47110-37H00-YMD
|
$192.75 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
COVER, FRAME LH (BLACK)
47210-37H00-019
|
$189.18 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
COVER, FRAME LH (SILVER)
47210-37H00-YMD
|
$192.75 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
CUSHION
09321-06026
|
$2.77 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
TAPE, RH
47112-37H00
|
$14.77 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
TAPE, LH
47212-37H00
|
$14.77 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
CUSHION
47114-37H00
|
$4.39 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
CUSHION
47115-37H00
|
$9.60 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
CUSHION, FRONT
47113-37H00
|
$3.87 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
CLIP, FRONT
09409-06328
|
$3.21 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
CLIP, REAR
09409-06314-5PK
|
$2.63 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
COVER,FRAME CTR
47310-37H00-019
Superseded by 47310-37H01-019
|
$232.20 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
COVER COMP,FRAM
47310-37H00-YPA
Superseded by 47310-37H01-YPA
|
$232.01 | ||
|
Unavailable |
|||
|
#11
COVER, FRAME CENTER (GOLD)
47310-37H00-YMG
|
|||
|
Unavailable |
|||
|
#11
COVER,FRAME CTR
47310-37H00-YSF
Superseded by 47310-37H01-YSF
|
$248.16 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
EMBLEM,SUZUKI
68131-21H00-YU8
Superseded by 68131-21H01-YU8
|
$9.14 | ||
|
Unavailable |
|||
|
#12
EMBLEM (GRAY)
68131-21H00-17U
|
$11.22 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
EMBLEM,SUZUKI
68131-21H00-019
Superseded by 68131-21H01-019
|
$8.32 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
EMBLEM,SUZUKI
68131-21H00-YBD
Superseded by 68131-21H01-YBD
|
$8.85 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
CUSHION
09321-10002
|
$1.88 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
FASTENER
44572-13G10
|
$13.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
BOLT, CENTER
09136-06105
|
$1.94 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
CUSHION (10X24X13)
47312-37H00
Superseded by 47312-37H10
|
$2.86 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
SPACER
09180-06283
|
$1.88 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
COVER, FRAME REAR (BLACK)
47910-37H00-YKV
|
$85.01 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
COVER, FRAME REAR (WHITE)
47910-37H00-YPA
|
$85.01 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
COVER, FRAME REAR (GOLD)
47910-37H00-YMG
|
|||
|
Unavailable |
|||
|
#18
COVER, FRAME REAR (BLUE)
47910-37H00-YSF
|
$85.01 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
CUSHION
47913-37H00
|
$4.84 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
FASTENER
47912-37H00
|
$10.52 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
COVER, FRAME REAR RH (BLACK)
47710-38H00-019
|
$204.38 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
COVER, FRAME REAR RH (WHITE)
47710-38H00-YPA
|
$204.38 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
COVER, FRAME REAR RH (BLACK)
47710-38H00-02X
|
|||
|
Unavailable |
|||
|
#21
COVER, FRAME REAR RH (WHITE)
47710-38H00-YBD
|
$204.38 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#22
COVER, FRAME REAR LH (BLACK)
47810-38H00-019
|
$204.38 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#22
COVER, FRAME REAR LH (WHITE)
47810-38H00-YPA
|
$204.38 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#22
COVER, FRAME REAR LH (BLACK)
47810-38H00-02X
|
|||
|
Unavailable |
|||
|
#22
COVER, FRAME REAR LH (WHITE)
47810-38H00-YBD
|
$204.38 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#23
EMBLEM, "750"
68131-38H00-GWM
|
$11.22 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#23
EMBLEM,FRAME CO
68131-38H00-GUB
Superseded by 68131-38H01-GUB
|
$6.90 | ||
|
Unavailable |
|||
|
#23
EMBLEM, "750"
68131-38H00-GUC
|
|||
|
Unavailable |
|||
|
#23
EMBLEM, "750"
68131-38H00-LV8
|
$11.22 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#24
CUSHION, COVER UPPER
47712-37H00
|
$5.03 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#25
CUSHION, SIDE
47713-37H00
|
$5.53 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#26
CUSHION, REAR
45516-01H00
|
$4.64 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#27
TAPE
45517-16G00
|
$7.04 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#28
CLIP
09409-06328
|
$3.21 | ||
|
Unavailable |
|||
|
#29
SCREW
03541-0512A
|
$1.34 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
