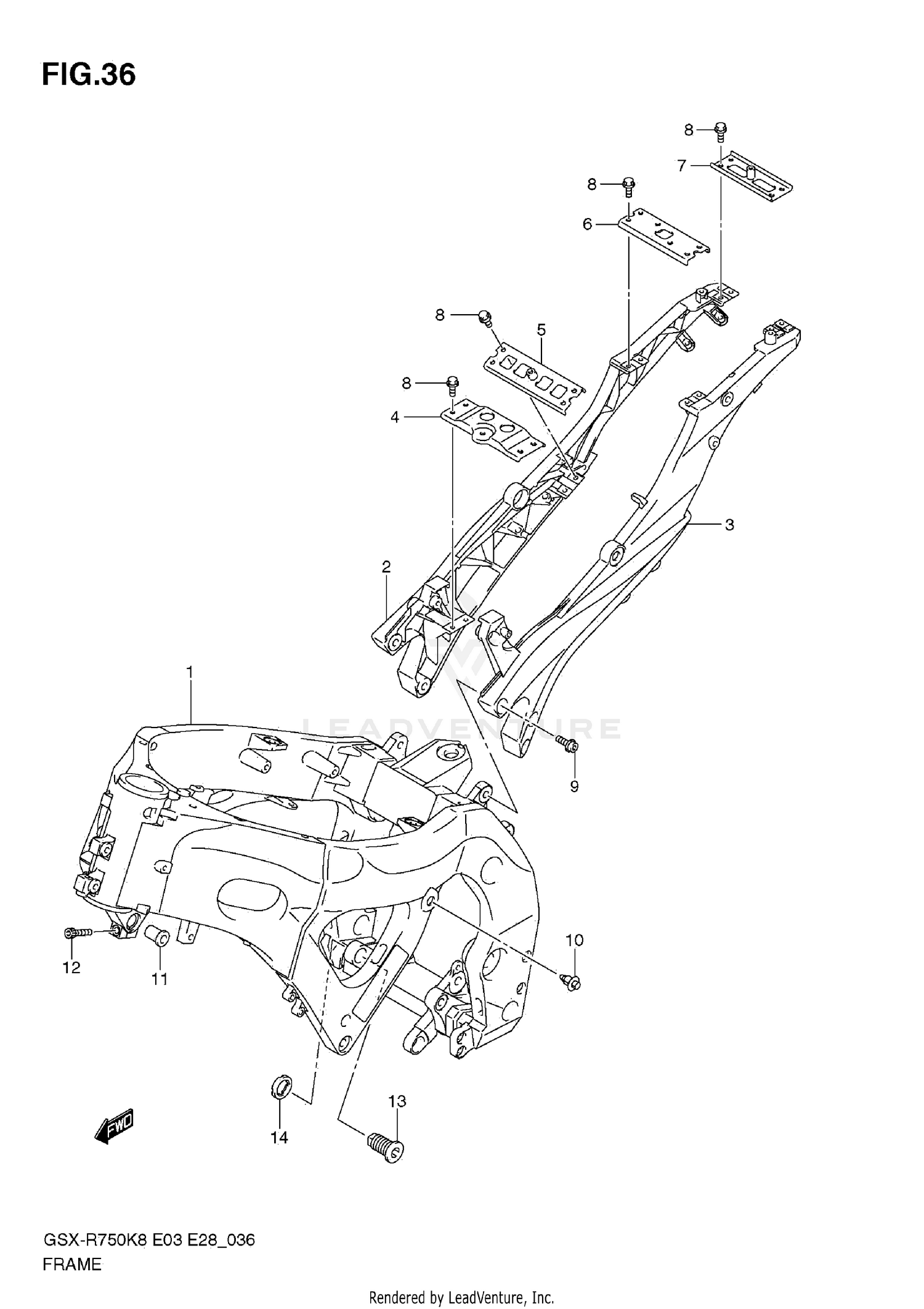

2009 Suzuki GSX-R 750 FRAME OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRAME (BLACK)
41100-02H10-YAP
|
$3,919.51 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
RAIL, SEAT RH (BLACK)
41211-37H00-YUG
|
$461.88 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
RAIL, SEAT LH (BLACK)
41221-37H00-YUG
|
$461.88 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
BRIDGE, SEAT RAIL FRONT
41770-01H00
|
$53.56 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
BRIDGE,SEAT RAIL LOWER
42740-37H00
|
$36.70 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
BRIDGE, SEAT RAIL UPPER
42730-37H00
|
$41.41 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
BRIDGE, SEAT RAIL REAR
42750-37H00
|
$34.18 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
BOLT
09103-06285
|
$1.94 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
BOLT,SEAT RAIL
41233-18G20
|
$8.94 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
PLUG, TANK RAIL
43585-01H01
|
$4.94 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
SPACER, ENGINE MOUNT
41911-40F01
|
$23.24 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
BOLT
09106-08185
|
$2.68 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
BOLT, ADJUST
41921-35F00
|
$48.04 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
NUT, ADJUST
41922-18G00
|
$32.17 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
