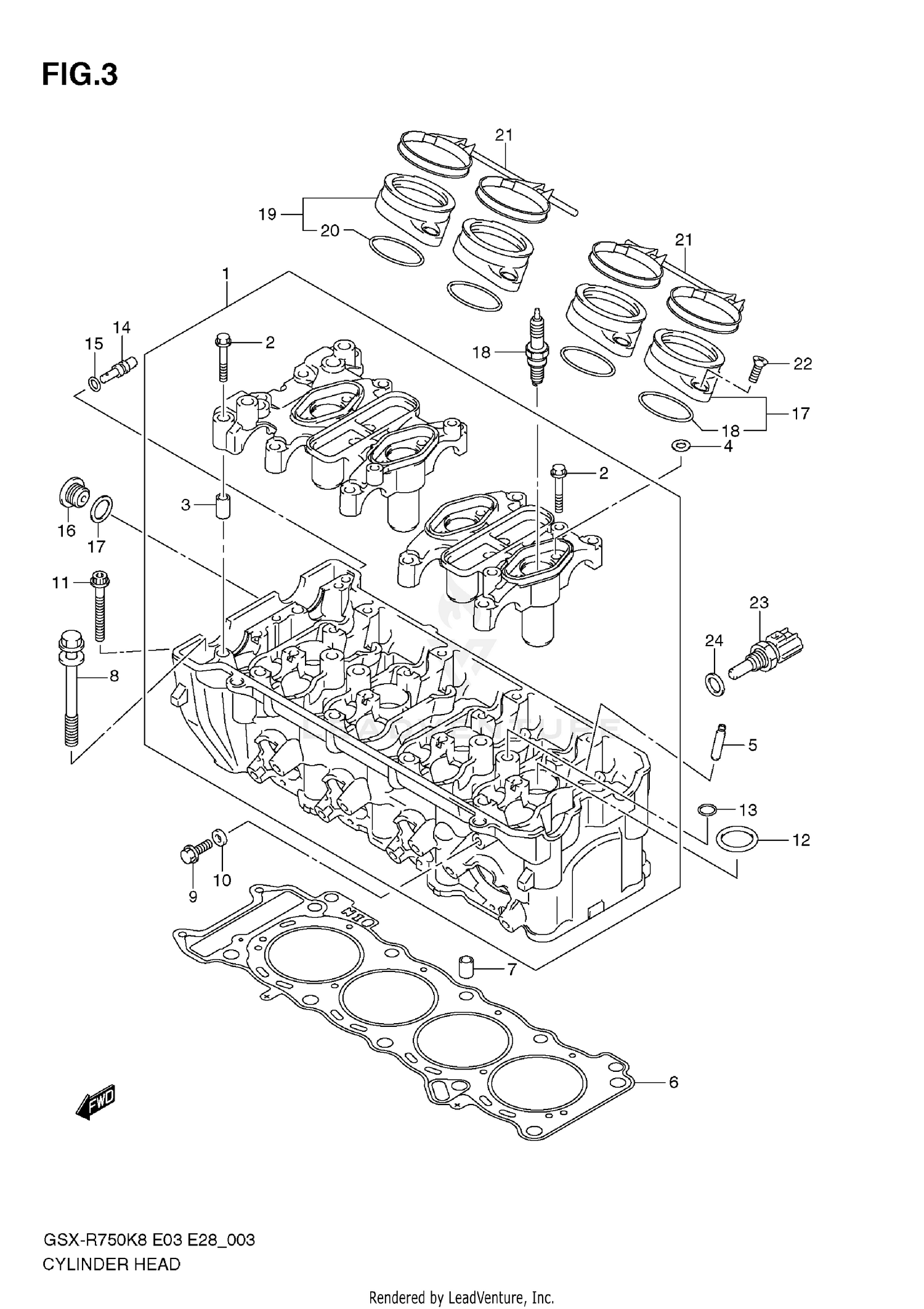

2009 Suzuki GSX-R 750 CYLINDER HEAD OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HEAD ASSY,CYLINDER
11100-38H00
|
$2,221.82 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
BOLT
09103-06266
|
$2.15 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
PIN
09206-08007
|
$2.55 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
WASHER
09168-06018
|
$1.62 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
GUIDE, VALVE (OS 0.5)
11115-29G70
|
$33.87 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
GASKET, CYLINDER HEAD
11141-02H00
|
$79.95 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
PIN
04211-11169
|
$1.75 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
BOLT (10X95)
11117-29G00
|
$9.25 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
BOLT, OIL GALLERY
09103-06222
|
$2.21 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
GASKET
09168-06023
|
$2.00 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
BOLT, CYLINDER HEAD
07120-0650A
|
$3.12 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
O-RING,SPARK PLUG PIPE
11179-81402
|
$4.34 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
O RING
09280-11001
|
$1.98 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
JET, OIL
09493-80005
|
$14.23 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
O RING
09280-04004
|
$1.62 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
PLUG
09248-16012
|
$4.62 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
GASKET
09168-16009
|
$2.47 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
SPARK PLUG (NGK,CR9EIA-9)
09482-00558
|
$10.21 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
SPARK PLUG (DENSO,IU27D)
09482-00557
|
$17.95 | ||
|
Unavailable |
|||
|
#18
SPARK PLUG (NGK,CR8EIA-9)
09482-00556
|
$11.71 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
SPARK PLUG (NGK,CR10EIA-9)
09482-00560
|
$11.71 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
SPARK PLUG (DENSO,IU24D)
09482-00555
|
$21.68 | ||
|
Unavailable |
|||
|
#18
SPARK PLUG (DENSO,IU31D)
09482-00559
|
$20.76 | ||
|
Unavailable |
|||
|
#19
PIPE, INTAKE
13101-38H00
|
$60.79 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
.O RING (D:2.4,ID:47X42)
09280-46006
Superseded by 09280-46007
|
$6.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
CLAMP, INTAKE PIPE
13826-02H12
|
$27.14 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#22
SCREW
09120-06007
|
$3.12 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#23
SENSOR, WATER TEMPERATURE
13650-49X00
|
$93.40 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#24
GASKET
09168-12017
|
$1.93 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
