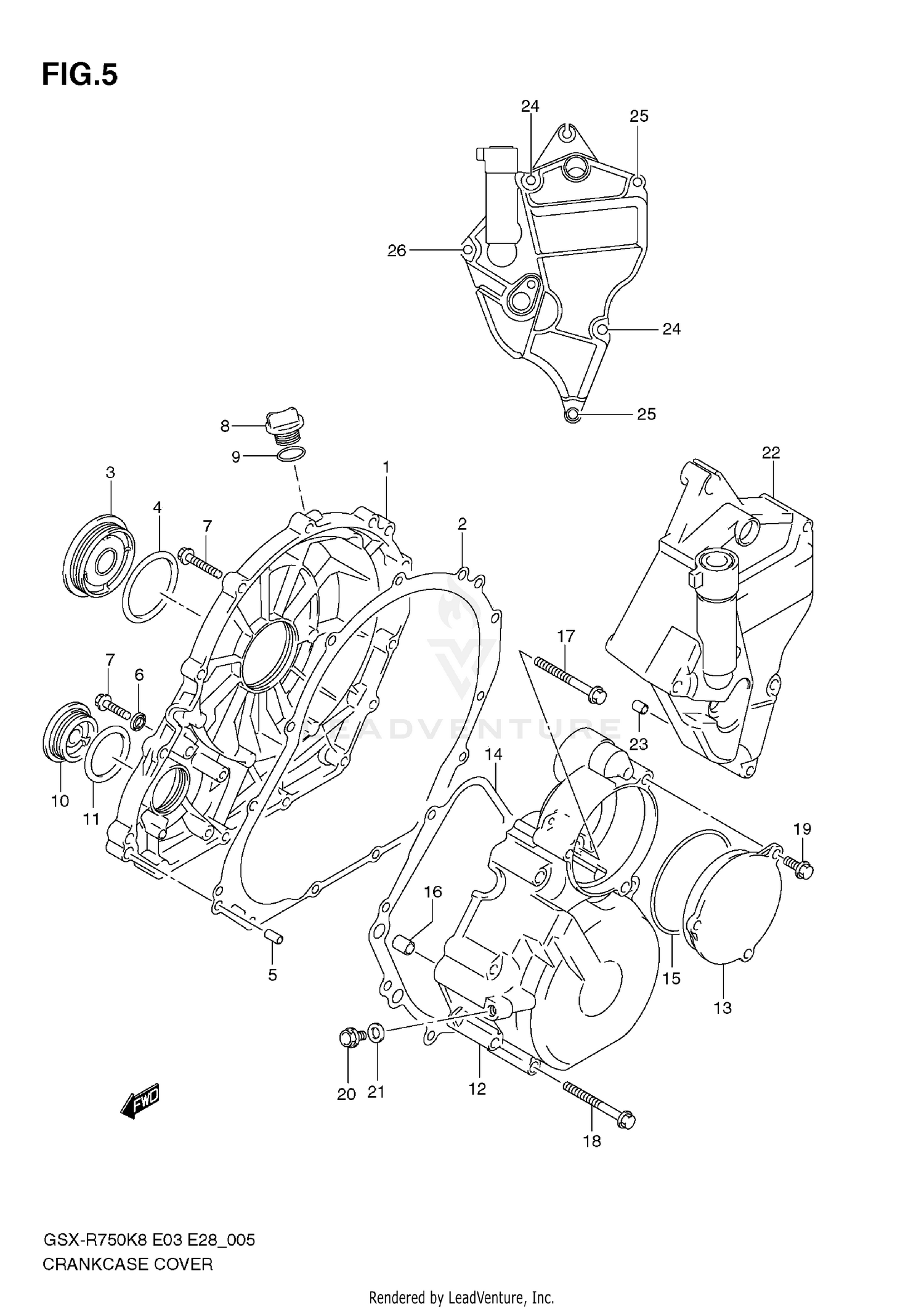

2009 Suzuki GSX-R 750 CRANKCASE COVER OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER,CLUTCH
11341-37H00
|
$255.20 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
GASKET, CLUTCH COVER
11482-01H00
|
$22.73 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
CAP,CLUTCH RELEASE ADJUST
11342-41G10
|
$25.91 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
O RING (D:2.4,ID:52.6)
09280-54001
|
$3.75 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
PIN
04211-09189
|
$1.62 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
GASKET (5.8X13X1.2)
09168-06023
|
$2.00 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
BOLT
09103-06213
|
$2.34 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
PLUG, ENGINE OIL FILTER
11971-25D00
|
$5.28 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
O RING (D:3.1,ID:16.8)
09280-17003
|
$1.62 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
PLUG, SHAFT HOLE
09259-36021
|
$13.77 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
O RING (D:3.1,ID:32.7)
09280-33004
|
$2.21 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
COVER,GENERATOR
11351-01H02
|
$269.71 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
CAP,STARTER IDLE GEAR
11352-01H00
|
$57.70 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
GASKET
11483-01H00
|
$11.69 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
O RING
09280-71008
|
$6.88 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
PIN
04211-09149
|
$1.62 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
BOLT
09103-06212
|
$2.34 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
BOLT
09103-06238
|
$2.62 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
BOLT
09103-06274
|
$2.00 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
PLUG, OIL GALLERY
09103-06222
|
$2.21 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
GASKET
09168-06018
|
$1.62 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#22
COVER,ENG SPROCKET
11361-01H00
|
$266.97 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#23
PIN
04211-09129
|
$1.62 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#24
BOLT (6X45)
09103-06224
|
$2.55 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#25
BOLT (6X65)
09103-06239
|
$2.62 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#26
BOLT (6X75)
09103-06257
|
$3.12 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
