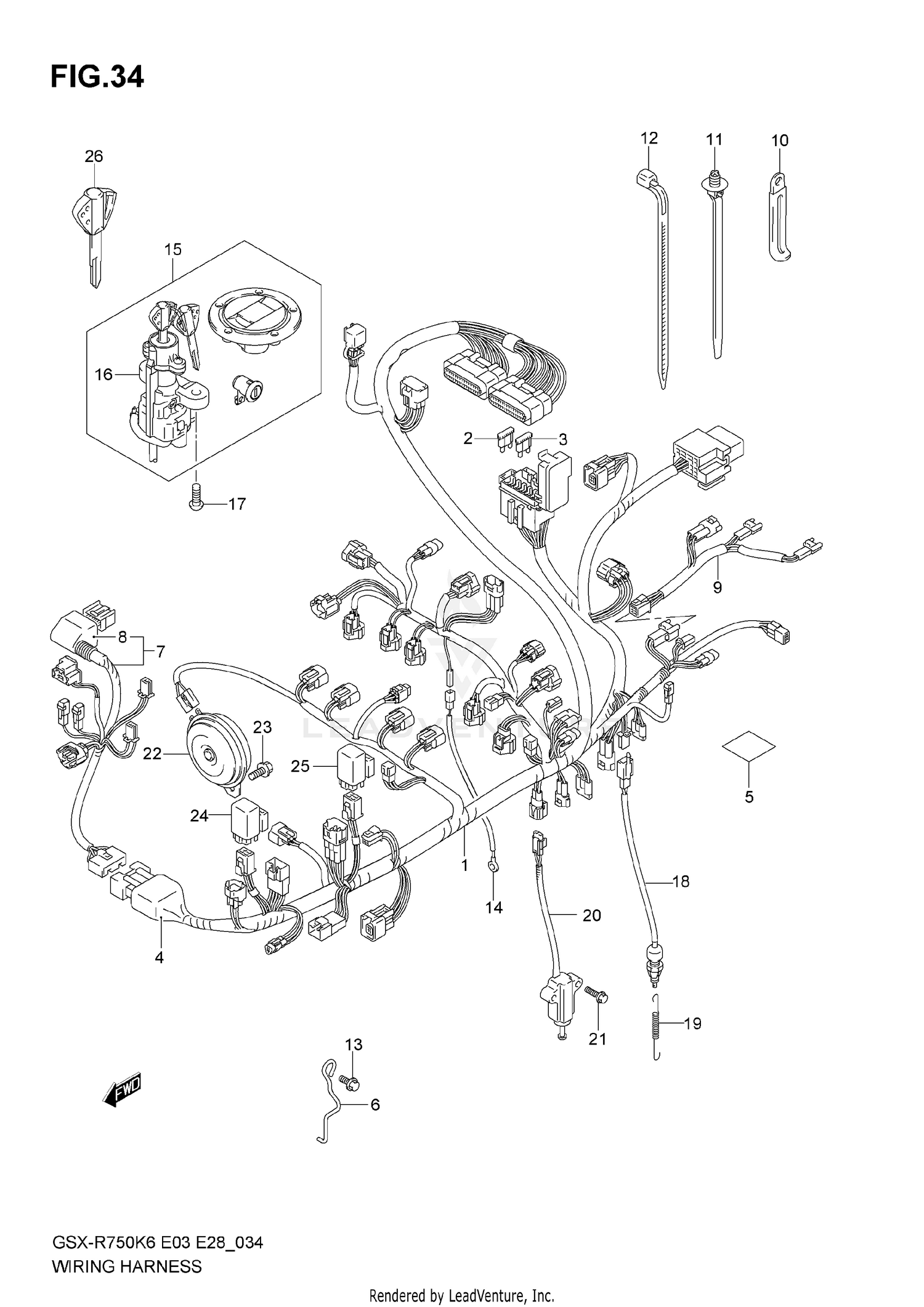

2007 Suzuki GSX-R 750 WIRING HARNESS OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HARNESS,WIRING
36610-01H30
Superseded by 36610-01H31
|
$779.71 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
FUSE (10A)
09481-10501
|
$2.00 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
FUSE (15A)
09481-15501
|
$2.00 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
COVER
36618-18G00
|
$9.12 | ||
|
Unavailable |
|||
|
#5
PROTECTOR (30X80X1)
33652-29F00
|
$3.12 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
GUIDE, WIRING HARNESS
36619-01H00
|
$7.38 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
HARNESS, WIRING NO.2
36620-01H00
|
$207.36 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
COVER, SPEEDOMETER
36618-41G00
|
$6.75 | ||
|
Unavailable |
|||
|
#9
WIRE, REAR COMB
36855-01H00
|
$53.56 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
CLAMP (L:45)
09404-06429
|
$1.80 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
CLAMP (L:170)
09407-17403
|
$5.04 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
CLAMP (L:125)
09407-14403
|
$2.21 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
BOLT
01550-0612A
|
$1.94 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
WIRE,OIL PRESSU
36851-01H00
Superseded by 36851-01H01
|
$10.74 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
LOCK SET
37101-40820
Superseded by 37101-40822
|
$443.02 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
LOCK SET
37101-40830
Superseded by 37101-40832
|
$492.83 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
LOCK ASSY, STEERING
37100-41G10
Superseded by 37100-41G11
|
$236.19 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
SCREW
09139-08016
|
$3.34 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
SWITCH ASSY, STOP LAMP
37740-45D00
|
$15.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
SPRING
09443-06087-A05
Superseded by 09443-06087
|
$3.46 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
SWITCH ASSY,SID
37840-35F10
Superseded by 37840-35F11
|
$72.84 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
BOLT
01550-0616A
|
$1.94 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#22
HORN ASSY
38500-01H00
|
$76.83 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#23
BOLT
01550-0816A
|
$2.28 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#24
RELAY ASSY, FAN MOTOR
38740-24X50
|
$46.80 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#25
RELAY ASSY, FUEL PUMP
38740-24X50
|
$46.80 | ||
|
Unavailable |
|||
|
#26
KEY,BLANK (IMMOBI)
37146-41G10
Superseded by 37146-41G00
|
$44.79 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
