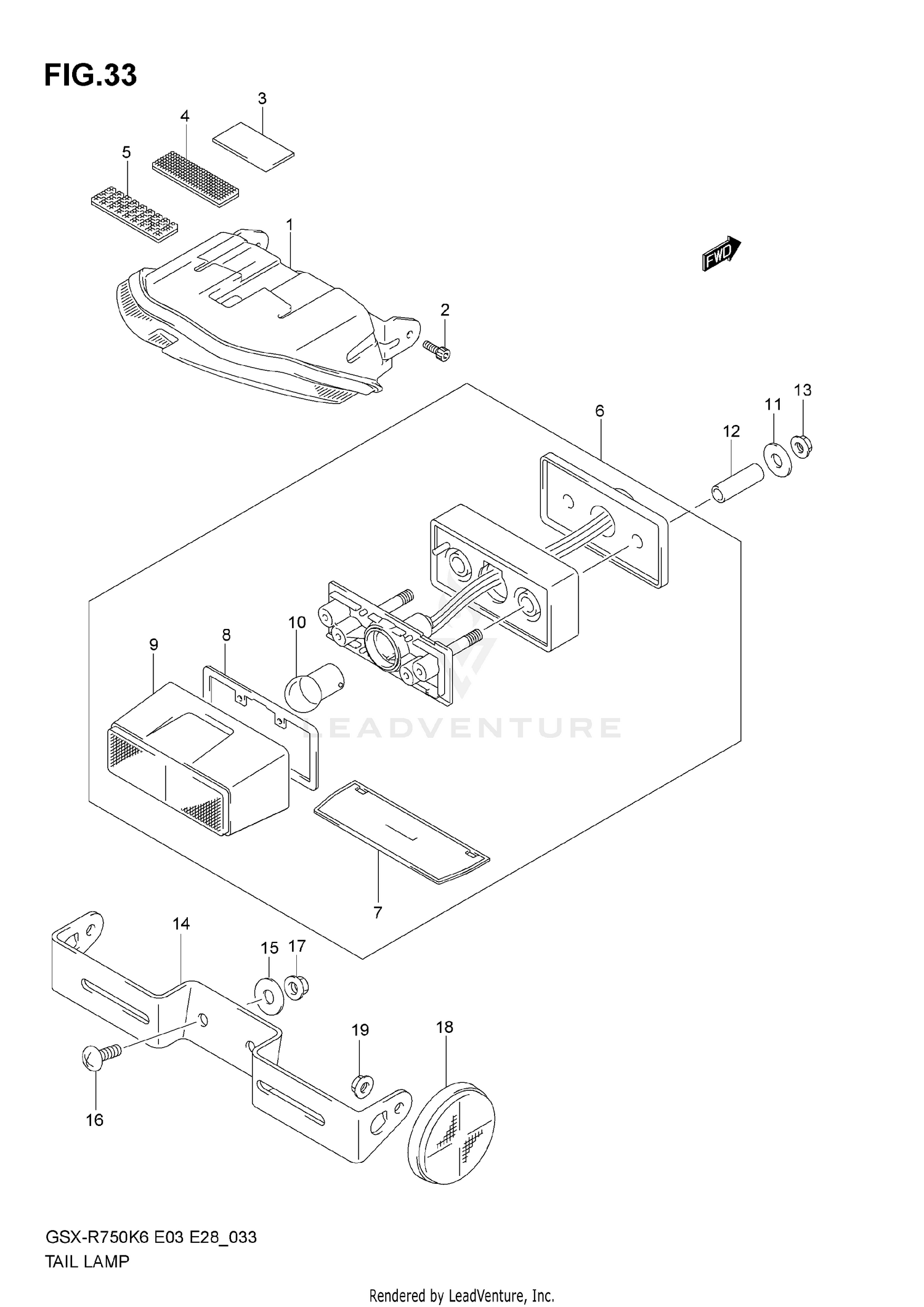

2007 Suzuki GSX-R 750 TAIL LAMP OEM Parts Diagram

< Back to Assembly Types

Item	MSRP	Qty
#1 LAMP ASSY, REAR COMBINATION 35710-01H30	$273.43
Available: Ships in 7-12 days. Add to View Price
#2 SCREW, REAR COMBINATION 07120-0512A	$2.22
Available: Ships in 7-12 days. Add to View Price
#3 PROTECTOR (100X70X3) 33652-24D00	$3.23
Available: Ships in 7-12 days. Add to View Price
#4 FASTENER (15X60X2) 35784-01H00	$13.79
Available: Ships in 7-12 days. Add to View Price
#5 FASTENER (15X60X1.6) 35784-01H10	$13.79
Available: Ships in 7-12 days. Add to View Price
#6 LAMP ASSY, LICENSE 35910-41G30 Superseded by 35910-41G32	$76.06
Available: Ships in 7-12 days. Add to View Price
#7 LENS, LICENSE 35912-41G00 Superseded by 35912-41G01	$11.63
Available: Ships in 7-12 days. Add to View Price
#8 GASKET 35913-41G00	$9.96
Available: Ships in 7-12 days. Add to View Price
#9 COVER 35917-41G00	$30.93
Available: Ships in 7-12 days. Add to View Price
#10 BULB (12V5W) 09471-12140 Superseded by 09471-12058	$1.39
Available: Ships in 7-12 days. Add to View Price
#11 WASHER (6.5X20X1.2) 09160-06077	$1.88
Available: Ships in 7-12 days. Add to View Price
#12 SPACER (6.5X9.0X33.3) 09180-06278	$3.81
Available: Ships in 7-12 days. Add to View Price
#13 NUT 08316-1006A	$2.15
Available: Ships in 7-12 days. Add to View Price
#14 BRACKET, LICENSE PLATE 35927-41G30	$13.29
Available: Ships in 7-12 days. Add to View Price
#15 WASHER (0.5X20X1.2) 09160-06077	$1.88
Unavailable
#16 SCREW 02142-0616A	$1.34
Available: Ships in 7-12 days. Add to View Price
#17 NUT 08316-1006A	$2.15
Unavailable
#18 REFLECTOR ASSY, REAR SIDE 35970-14A20	$15.63
Available: Ships in 7-12 days. Add to View Price
#19 NUT 08316-1005A	$2.15
Available: Ships in 7-12 days. Add to View Price
