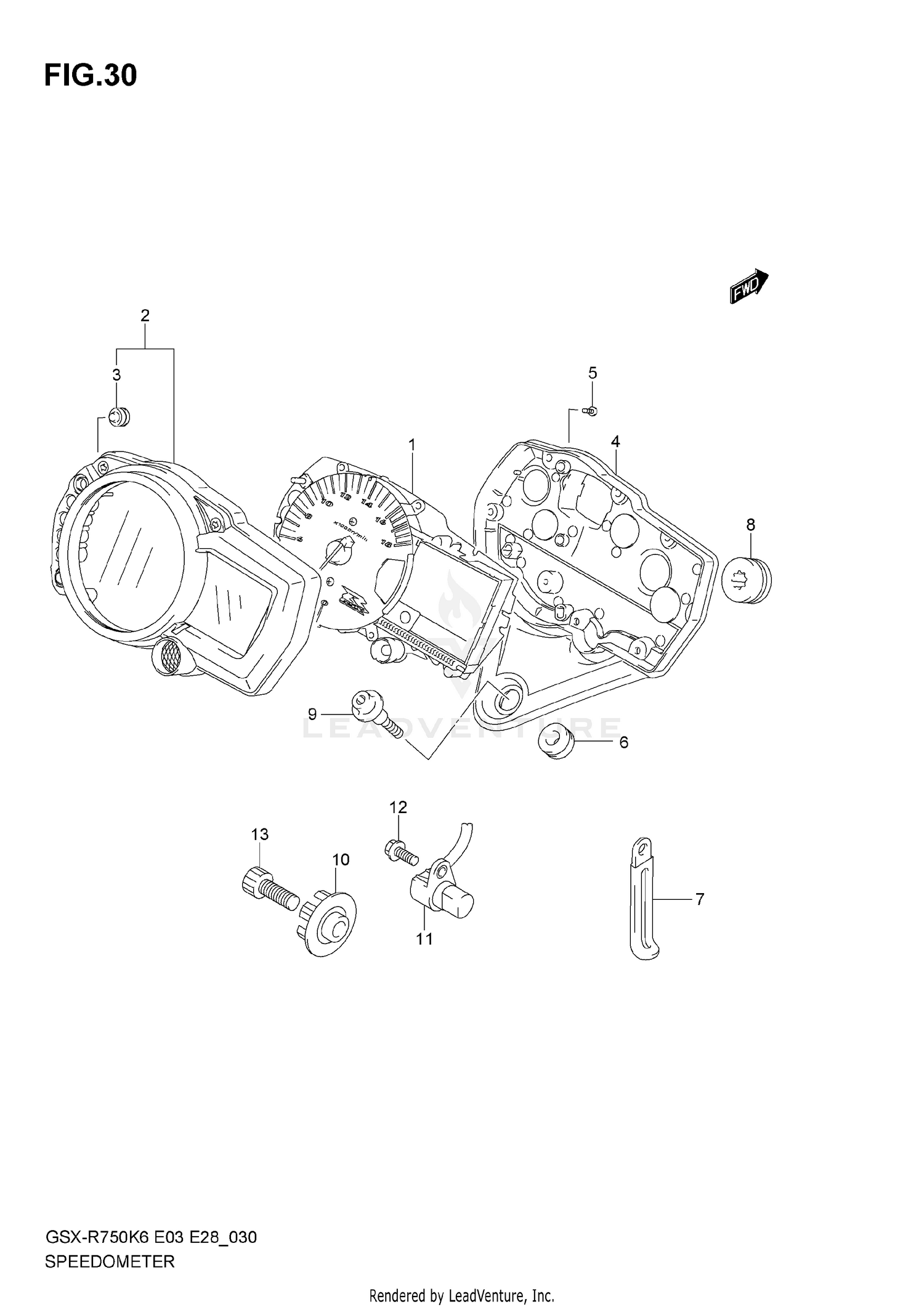

2007 Suzuki GSX-R 750 SPEEDOMETER OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SPEED & TACHOMETER ASSY
34120-02H20
|
$895.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#1
SPEED & TACHOMETER ASSY
34120-02H30
|
|||
|
Unavailable |
|||
|
#2
CASE, UPPER
34150-01H20
|
$143.50 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
SWITCH, RUBBER
34124-39G00
|
$8.68 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
CASE, LOWER
34111-01H00
|
$76.15 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
SCREW (3X16)
09132-03008
|
$1.46 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
CUSHION
34955-33E00
|
$3.69 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
CLAMP (L:45)
09404-06429
|
$1.80 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
CUSHION,SPEEDOMETER
34955-13E00
Superseded by 34955-13E01
|
$2.92 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
SCREW
34149-18G00
|
$2.47 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
ROTOR,SPEED
34981-35F00
Superseded by 34981-38G01
|
$18.55 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
SENSOR, SPEED
34990-35F00
|
$132.26 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
BOLT, SPEED SENSOR
07120-0512A
|
$2.22 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
BOLT, SPEED ROTOR
07130-0825A
|
$3.02 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
