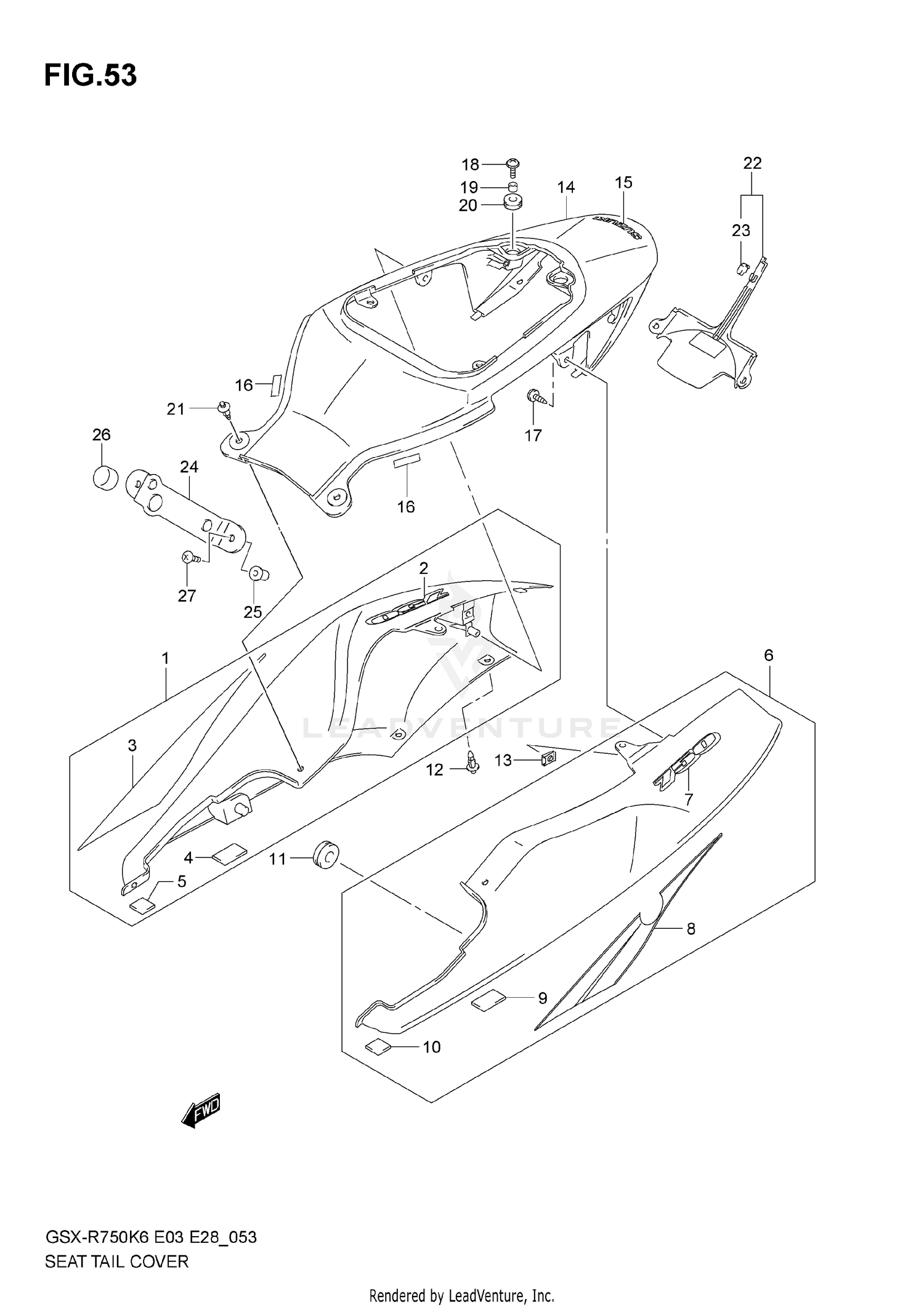

2007 Suzuki GSX-R 750 SEAT TAIL COVER (MODEL K6) OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER,SEAT TAIL
45501-02H00-YBD
Superseded by 45501-02H01-YBD
|
$138.37 | ||
|
Unavailable |
|||
|
#1
COVER,SEAT TAIL
45501-02H10-YEC
Superseded by 45501-02H11-YEC
|
$128.47 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#1
COVER,SEAT TAIL
45501-02H10-YHL
Superseded by 45501-02H11-YHL
|
$146.23 | ||
|
Unavailable |
|||
|
#1
COVER,SEAT TAIL
45501-02H10-YKV
Superseded by 45501-02H11-YKV
|
$142.16 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
EMBLEM, 750, R
68161-02H00-LV8
|
$17.14 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
EMBLEM, 750, R
68161-02H00-CVZ
|
$17.14 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
TAPE, SEAT TAIL COVER, R
68165-02H00-DBZ
|
$45.75 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
CUSHION, RR
45516-01H00
|
$4.64 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
CUSHION, FR
45517-01H00
|
$4.73 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
COVER,SEAT TAIL
45502-02H00-YBD
Superseded by 45512-01H00
|
$60.91 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
COVER, SEAT TAIL, L (YELLOW)
45502-02H10-YEC
|
$183.26 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
COVER,SEAT TAIL
45502-02H10-YHL
Superseded by 45512-01H00
|
$60.91 | ||
|
Unavailable |
|||
|
#6
COVER,SEAT TAIL
45502-02H10-YKV
Superseded by 45502-02H11-YKV
|
$131.63 | ||
|
Unavailable |
|||
|
#7
EMBLEM, 750, L
68171-02H00-LV8
|
$17.14 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
EMBLEM, 750, L
68171-02H00-CVZ
|
$17.14 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
TAPE, SEAT TAIL COVER, L
68175-02H00-DBZ
|
$45.75 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
CUSHION, RR
45516-01H00
|
$4.64 | ||
|
Unavailable |
|||
|
#10
CUSHION, FR
45517-01H00
|
$4.73 | ||
|
Unavailable |
|||
|
#11
CUSHION, SEAT TAIL COVER FR
09320-08028
|
$3.02 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
CLIP, SEAT TAIL COVER
09409-06314-5PK
|
$2.63 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
NUT, SEAT TAIL COVER CTR
09148-05038
|
$1.94 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
COVER,SEAT TAIL
45503-01H00-YKY
Superseded by 45503-01H02-YKY
|
$215.52 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
COVER,SEAT TAIL
45503-01H00-3WX
Superseded by 45503-01H02-3WX
|
$215.52 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
COVER,SEAT TAIL
45503-01H00-019
Superseded by 45503-01H02-019
|
$207.61 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
EMBLEM,"SUZUKI"
68280-04F00-YD8
Superseded by 68280-04F01-YD8
|
$11.93 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
EMBLEM, SUZUKI (GRAY)
68280-04F00-YU8
|
$16.84 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
TAPE, SEAT TAIL COVER CTR
94443-06G00
|
$3.34 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
SCREW, SEAT TAIL COVER
03241-1516A
|
$1.94 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
BOLT (6X20)
09116-06011-A05
Superseded by 09116-06115
|
$1.94 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
SPACER (6.5X10X7)
09180-06283-A05
Superseded by 09180-06283
|
$1.88 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
CUSHION, SEAT TAIL COVER
09320-10059
|
$3.80 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
CLIP, SEAT TAIL COVER UPPER
09409-06314-5PK
|
$2.63 | ||
|
Unavailable |
|||
|
#22
COVER,SEAT TAIL
45504-01H00-YKY
Superseded by 45514-01H00
|
$19.97 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#22
COVER,SEAT TAIL
45504-01H00-019
Superseded by 45514-01H00
|
$19.97 | ||
|
Unavailable |
|||
|
#23
CUSHION, SEAT TAIL COVER
45515-01H00
|
$5.66 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#24
BRACKET, SEAT TAIL COVER
45250-01H00
|
$15.84 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#25
NUT, SEAT TAIL COVER BRACKET
09159-05019
|
$7.10 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#26
CUSHION, SEAT TAIL COVER BRKT
09321-10011
|
$2.75 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#27
SCREW, SEAT TAIL COVER BRKT
02142-0520A
|
$1.37 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
