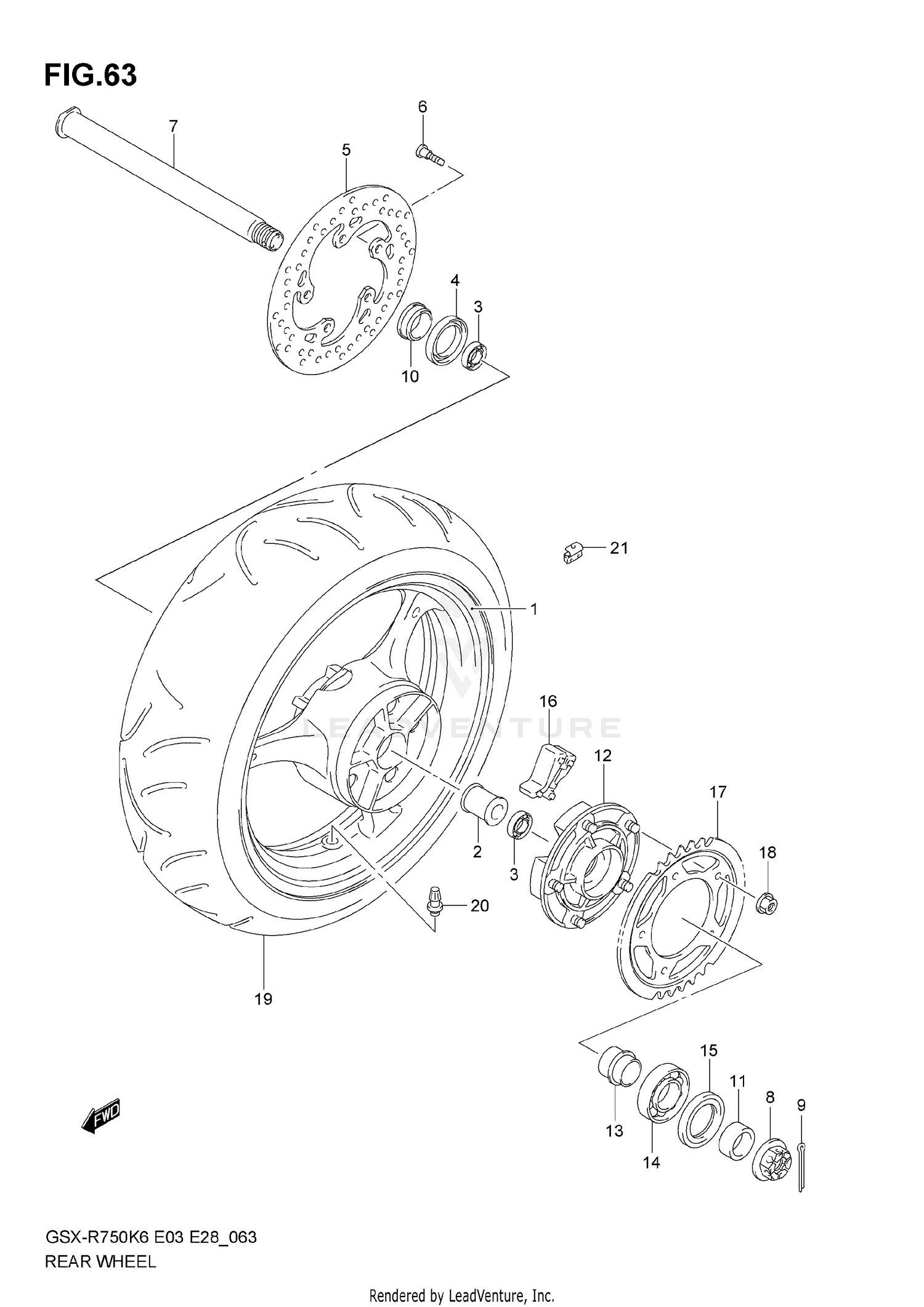

2007 Suzuki GSX-R 750 REAR WHEEL OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WHEEL, REAR (17M/CXMT5.50) (BLACK)
64111-01H00-019
|
$1,210.80 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
SPACER, HUB BEARING
64731-01H00
|
$54.26 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
BEARING
09262-28043
Superseded by 09262-28063
|
$21.57 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
SEAL,OIL (37X52X8)
09284-37001
Superseded by 09284-37002
|
$8.13 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
DISC,REAR BRAKE
69211-18G00
|
$279.53 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
BOLT
09106-08160
|
$3.56 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
AXLE, REAR
64711-49G10-A05
Superseded by 64711-49G10
|
$153.47 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
NUT, REAR AXLE
09141-25001-A05
Superseded by 09141-25001
|
$23.88 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
COTTER PIN
04111-4035A
|
$1.34 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
SPACER,REAR AXLE,R
64741-35F00
Superseded by 64741-35F10
|
$13.96 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
SPACER, AXLE LH
64751-35F00
|
$23.73 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
DRUM, REAR SPROCKET
64610-44G00-E00
Superseded by 64610-44G00
|
$273.43 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
RETAINER, SPROCKET DRUM
64733-35F00-A05
Superseded by 64733-35F00
|
$27.56 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
BEARING (32X65X17)
09262-32007
Superseded by 09262-32024
|
$39.31 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
SEAL (39X65X7)
09285-39001
|
$10.58 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
ABSORBER, HUB SHOCK
64651-44G00
|
$18.36 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
SPROCKET, REAR (NT:45)
64511-39F00-A05
Superseded by 64511-39F00
|
$78.16 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
NUT
08319-3110A
|
$2.68 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
TIRE, REAR, 180/55 ZR17M/C (73W)(BRIDGESTONE)
65110-02H00
|
$350.19 | ||
|
Unavailable |
|||
|
#20
VALVE ASSY, WHEEL RIM (TR412)
43130-24A00
|
$9.16 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
BALANCER (10G)
43222-73H10-A05
Superseded by 43222-73H10
|
$5.10 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
BALANCER (20G)
43224-73H10-A05
Superseded by 43224-73H10
|
$5.66 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
BALANCER (30G)
43226-73H10-A05
Superseded by 43226-73H10
|
$6.60 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
