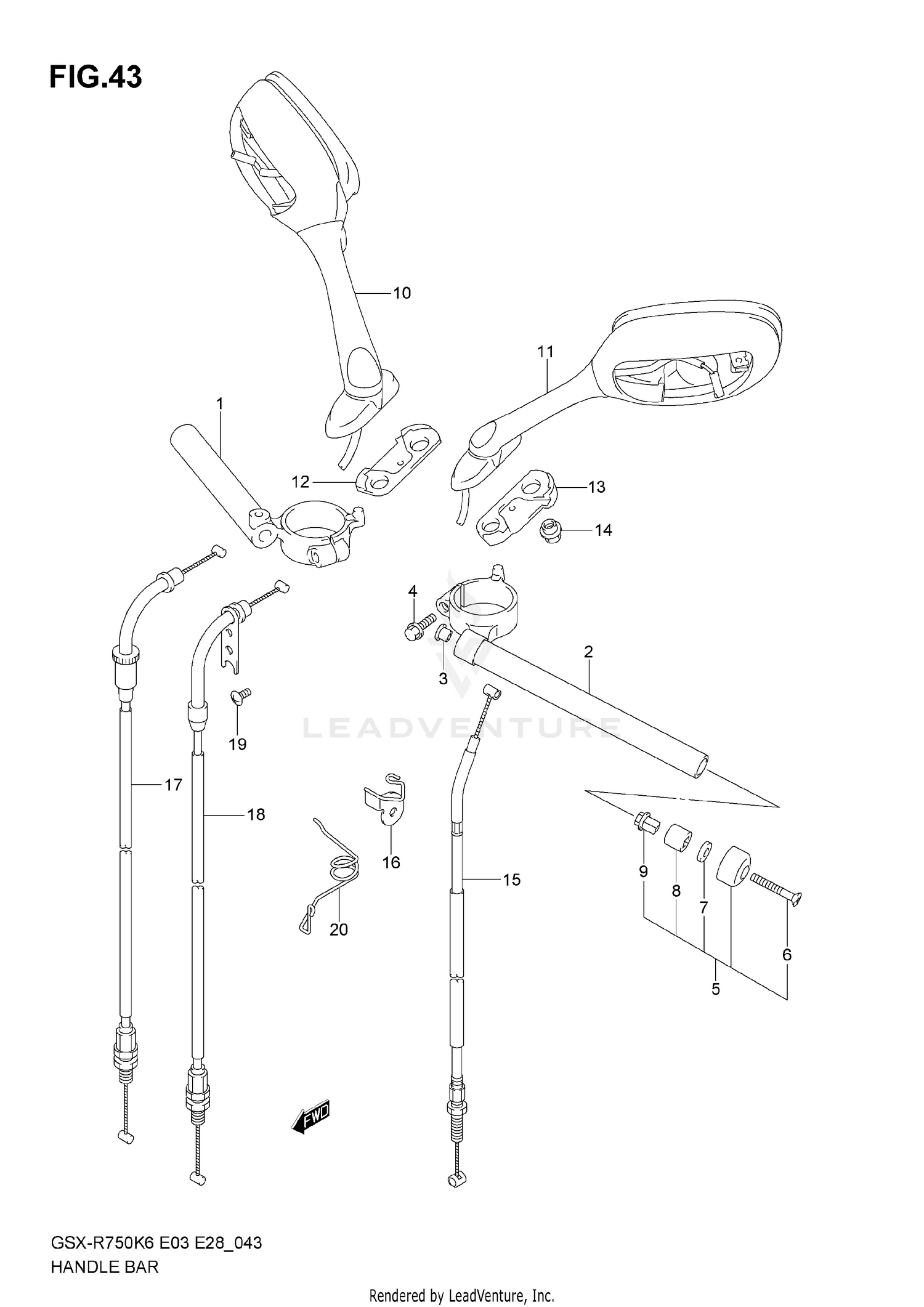

2007 Suzuki GSX-R 750 HANDLEBAR OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HANDLEBAR, RH
56111-01H00
|
$276.01 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
HANDLEBAR, LH
56151-01H01
|
$281.21 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
CAP,HANDLEBAR
56131-29G00
|
$4.21 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
BOLT
56123-35F00
|
$5.39 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
BALANCER SET,HANDLEBAR
56200-41820
Superseded by 56200-41823
|
$32.22 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
SCREW
02122-06403
Superseded by 02122-0640A
|
$2.38 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
WASHER
09160-06131
|
$2.47 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
.EXPANDER,HANDLE BALANCER
56272-10G00
Superseded by 56272-10G01
|
$4.88 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
NUT
56273-10G00
Superseded by 56273-10G10
|
$8.94 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
MIRROR ASSY,REA
56500-41G10
Superseded by 56500-41G12
|
$206.18 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
MIRROR ASSY,REA
56500-41G11
Superseded by 56500-41G12
|
$206.18 | ||
|
Unavailable |
|||
|
#11
MIRROR ASSY,REA
56600-41G10
Superseded by 56600-41G12
|
$203.26 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
MIRROR ASSY,REA
56600-41G11
Superseded by 56600-41G12
|
$203.26 | ||
|
Unavailable |
|||
|
#12
CUSHION, RH
94575-01H00
|
$8.36 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
CUSHION, LH
94576-01H00
|
$8.36 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
NUT,RR VIEW MIRROR
56619-41G00-A05
Superseded by 56619-41G01
|
$9.62 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
CABLE ASSY, CLUTCH
58200-01H00
|
$47.86 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
GUIDE, CLUTCH CABLE
58620-01H00
|
$16.27 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
CABLE ASSY, THROTTLE NO.1
58300-01H00
|
$45.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
CABLE ASSY, THROTTLE NO.2
58300-02H10
|
$45.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
SCREW
02142-05103
Superseded by 02142-0510B
|
$1.75 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
GUIDE, THROTTLE CABLE
58622-01H10
|
$15.50 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
