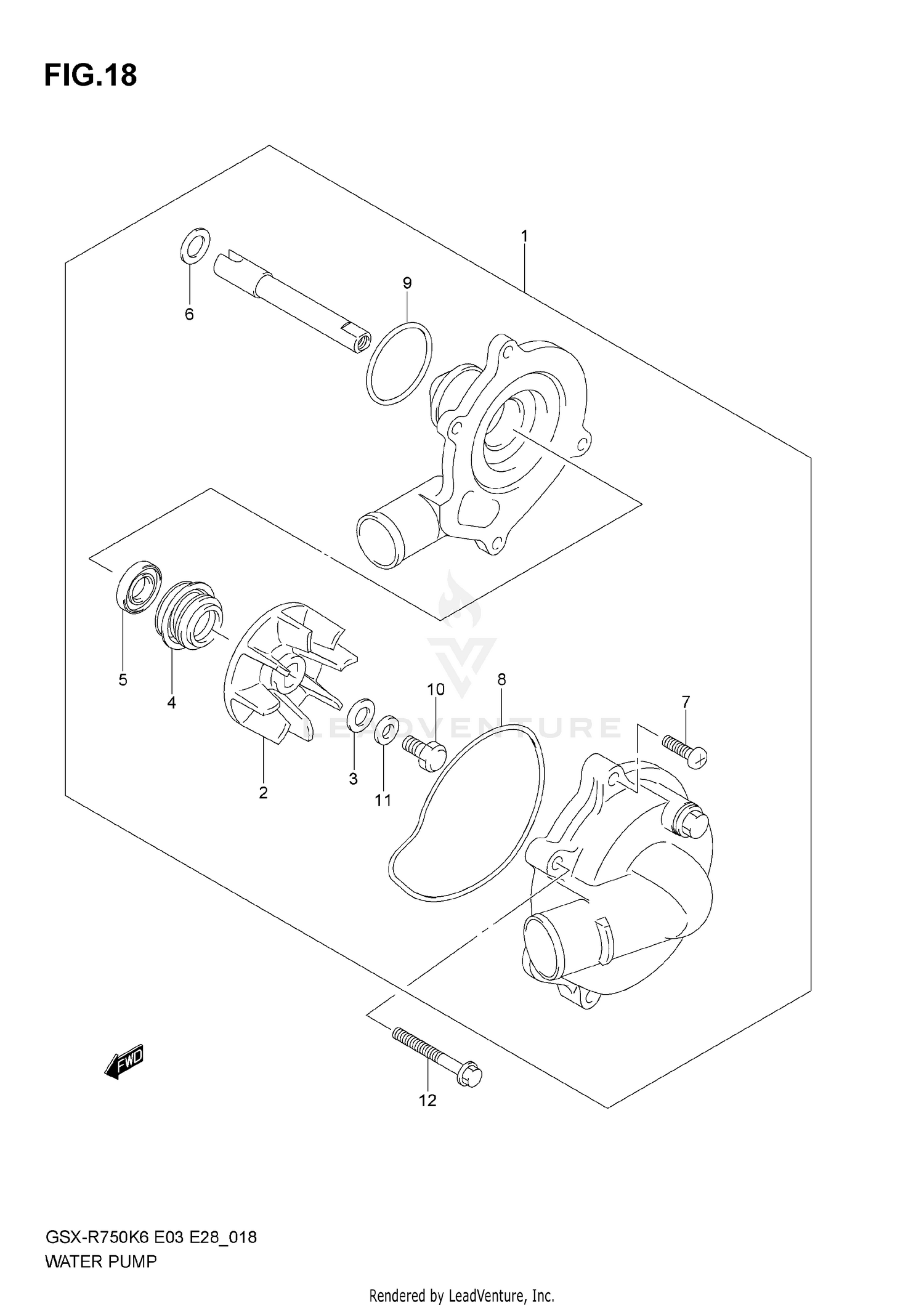

2006 Suzuki GSX-R 750 WATER PUMP OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PUMP ASSY,WATER
17400-01H00-E00
Superseded by 17400-01H01
|
$288.84 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
IMPELLER
17491-17E01
|
$27.59 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
GASKET
09168-06025
|
$2.75 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
.SEAL,WATER PUMP SHAFT MECH
17470-02F10
Superseded by 17470-02F11
|
$30.27 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
OIL SEAL
17461-01H00
|
$18.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
WASHER
09181-10167
|
$1.94 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
SCREW
02112-06163
Superseded by 02112-0616A
|
$1.40 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
.O-RING
17418-33400
Superseded by 17418-33401
|
$4.62 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
O RING
17435-33400
|
$15.82 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
BOLT (6X13)
09100-06099
|
$1.88 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
LOCK WASHER
09164-06006
|
$2.47 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
BOLT
01547-0635A
|
$2.28 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
