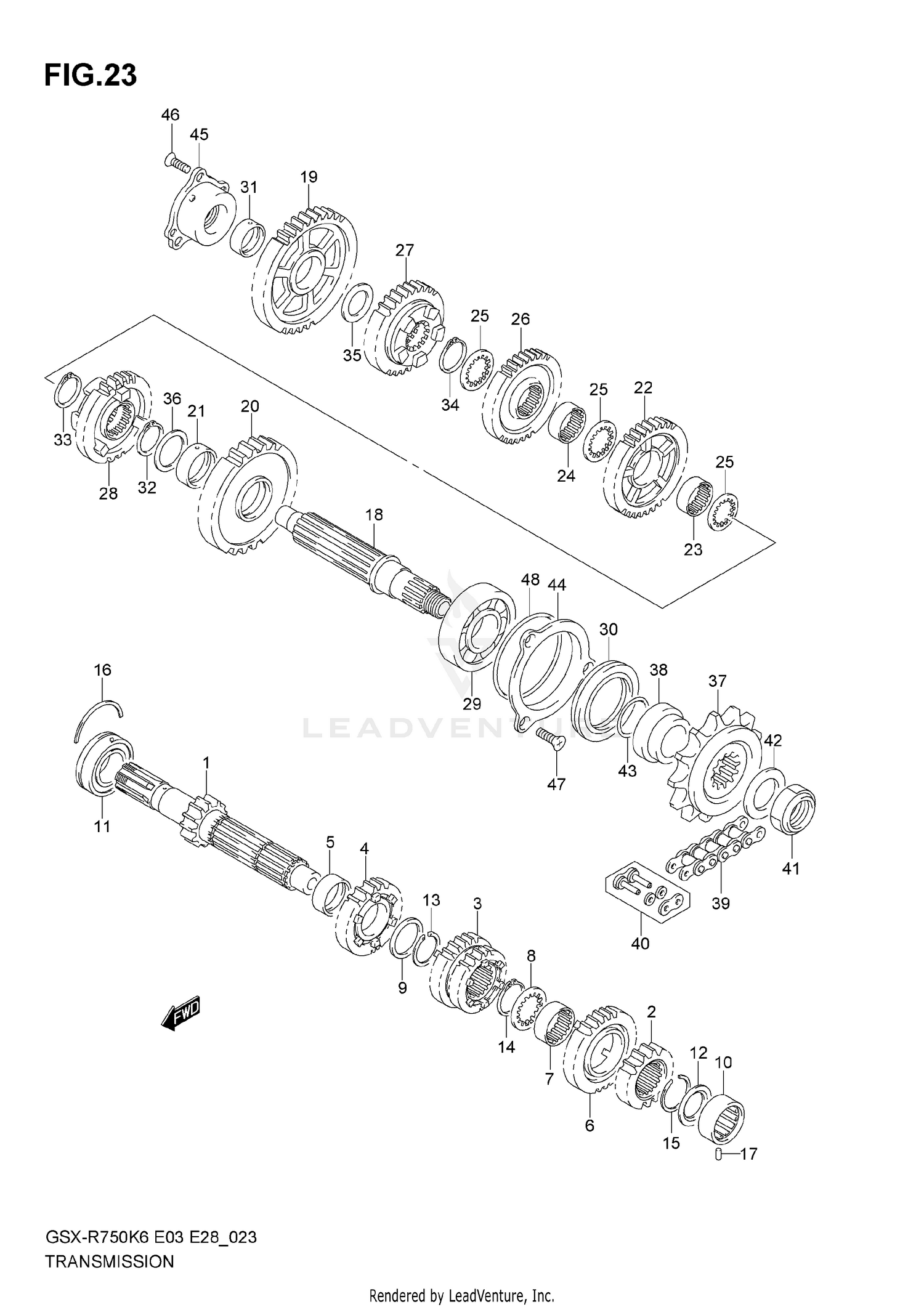

2006 Suzuki GSX-R 750 TRANSMISSION OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHAFT, COUNTER (NT:14)
24120-01H00
|
$289.43 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
GEAR,2ND DRIVE (NT:19)
24221-35F00
|
$102.92 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
GEAR,3RD & 4TH DRIVE (NT:21/2
24231-01H00
|
$185.46 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
GEAR, 5TH DRIVE (NT:23)
24251-01H00
|
$147.66 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
BUSH 5TH DRIVE GEAR
24252-35F00
|
$21.65 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
GEAR,6TH DRIVEN (NT:24)
24261-01H01
|
$147.66 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
BUSH, 6TH DRIVE GEAR
24262-35F00
|
$25.06 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
WASHER, 6TH DRIVE
09167-27001
|
$3.61 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
WASHER, 5TH DRIVE
09160-27008
|
$3.10 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
BEARING, CNTR LH
09263-20087
|
$42.34 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
BEARING, CNTR RH
09262-25150
|
$69.74 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
SEAL, OIL (20X31.2X2.7)
09285-20006
|
$6.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
CIRCLIP, 5TH DRIVE
09380-27006
|
$2.68 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
CIRCLIP, 6TH DRIVE
09380-27006
|
$2.68 | ||
|
Unavailable |
|||
|
#15
CIRCLIP, 2ND DRIVE
09380-27004
|
$3.69 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
C RING, CNTR RH
09390-62012
|
$7.28 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
PIN, COUNTER SHAFT, LH
09261-06003
|
$1.46 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
SHAFT, DRIVE
24131-01H00
Superseded by 24131-01H01
|
$285.81 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
GEAR,1ST DRIVEN (NT:39)
24311-35F20
|
$140.84 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
GEAR,2ND DRIVEN (NT:39)
24321-35F10
Superseded by 24321-35F11
|
$119.09 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
BUSH, 2ND DRIVEN
24322-35F00
|
$18.07 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#22
GEAR,3RD DRIVEN (NT:36)
24331-40F20
Superseded by 24331-40F30
|
$147.03 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#23
BUSH, 3RD DRIVEN
24262-17E01
|
$33.82 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#24
BUSH, 4TH DRIVEN GEAR
24262-17E01
|
$33.82 | ||
|
Unavailable |
|||
|
#25
WASHER, 3RD & 4TH DRIVEN
24333-02F00
|
$5.15 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#26
GEAR,4TH DRIVEN (NT:36)
24341-40F20
|
$153.47 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#27
GEAR, 5TH DRIVEN (NT:31)
24351-01H01
|
$149.80 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#28
GEAR, 6TH DRIVEN (NT:26)
24361-01H00
|
$153.47 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#29
BEARING, DRIVE SHAFT, LH
09262-28045
|
$87.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#30
SEAL, DRIVE SHAFT, OIL
09283-42017
|
$44.34 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#31
BUSH, 1ST DRIVEN GEAR
09300-22008
|
$12.58 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#32
CIRCLIP, 2ND DRIVEN GEAR
09380-27006
|
$2.68 | ||
|
Unavailable |
|||
|
#33
CIRCLIP, 3RD DRIVEN GEAR
09380-27006
|
$2.68 | ||
|
Unavailable |
|||
|
#34
CIRCLIP, 4TH DRIVEN GEAR
09380-27006
|
$2.68 | ||
|
Unavailable |
|||
|
#35
WASHER, 1ST DRIVEN LH
09181-22223
|
$3.09 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#36
WASHER, 2ND DRIVEN
09160-27008
|
$3.10 | ||
|
Unavailable |
|||
|
#37
SPROCKET,ENGINE
27510-20A20
Superseded by 27510-20A22
|
$69.47 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#38
SPACER, ENGINE SPROCKET
27531-01H00
|
$35.65 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#39
CHAIN ASSY (RK GB525ROZ5Y)
27600-33E40-116
|
$461.88 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#40
JOINT SET
27620-33E40
|
$18.48 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#41
NUT, ENGINE SPROCKET
09159-20004
|
$15.63 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#42
WASHER (25X41X3)
09160-25009
|
$5.34 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#43
O RING (D:2.4,ID:23.7)
09280-24010
|
$5.62 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#44
RETAINER, DRIVE SHAFT, L
24751-01H00
Superseded by 24751-01H10
|
$112.75 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#45
HOUSING, DRIVE SHAFT, SET
24771-01810
|
$146.21 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#46
SCREW, DRIVE SHAFT (6X20)
09139-06159-A05
Superseded by 09139-06159
|
$3.46 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#47
SCREW, DRIVE SHAFT (6X20)
09139-06159-A05
Superseded by 09139-06159
|
$3.46 | ||
|
Unavailable |
|||
|
#48
O RING
09280-68009
|
$20.70 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
