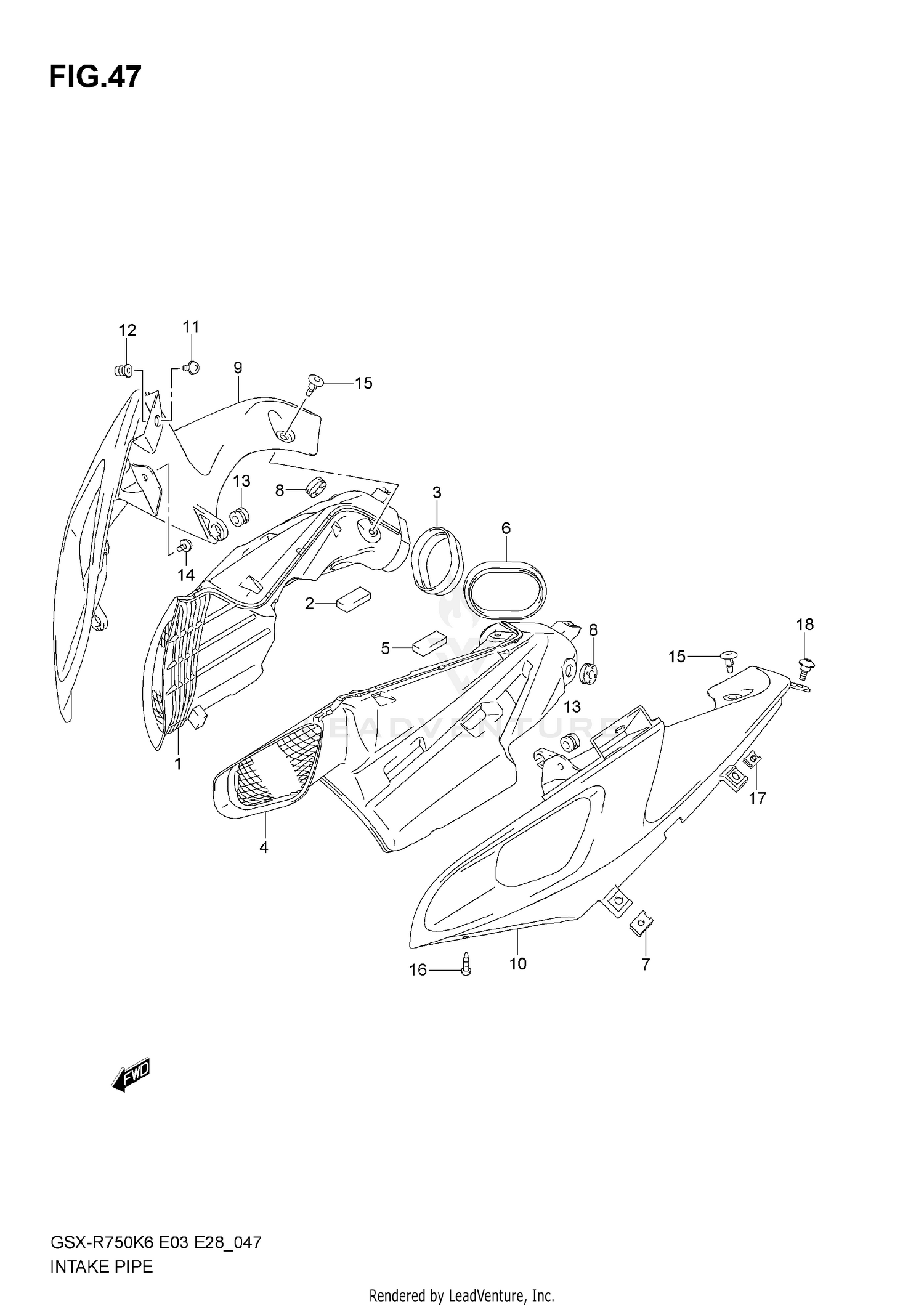

2006 Suzuki GSX-R 750 INTAKE PIPE OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PIPE, AIR INTAKE RH
94420-01H00
|
$105.63 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
CUSHION
92146-01H00
|
$5.23 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
MOLDING, RH
94423-01H00
|
$20.68 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
PIPE, AIR INTAKE LH
94430-01H00
|
$105.63 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
CUSHION
92146-01H00
|
$5.23 | ||
|
Unavailable |
|||
|
#6
MOLDING, LH
94433-01H00
|
$20.68 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
NUT
94484-24F00
|
$4.15 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
CUSHION
09320-08028
|
$3.02 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
COVER, INTAKE RH (BLACK)
94670-01H00-YKV
|
$168.12 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
COVER, INTAKE LH (BLACK)
94680-01H00-YKV
|
$168.12 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
SCREW
02142-15123
Superseded by 02142-1512B
|
$2.29 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
NUT
09159-05048
|
$7.48 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
CUSHION (9X18X14)
09320-09039
Superseded by 09320-09059
|
$3.24 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
SCREW
09136-05062
|
$2.15 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
CLIP
09409-07333
|
$2.26 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
SCREW
03241-15123
Superseded by 03241-1512B
|
$2.34 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
NUT
94484-24F00
|
$4.15 | ||
|
Unavailable |
|||
|
#18
SCREW, REAR
09139-05077
|
$3.34 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
