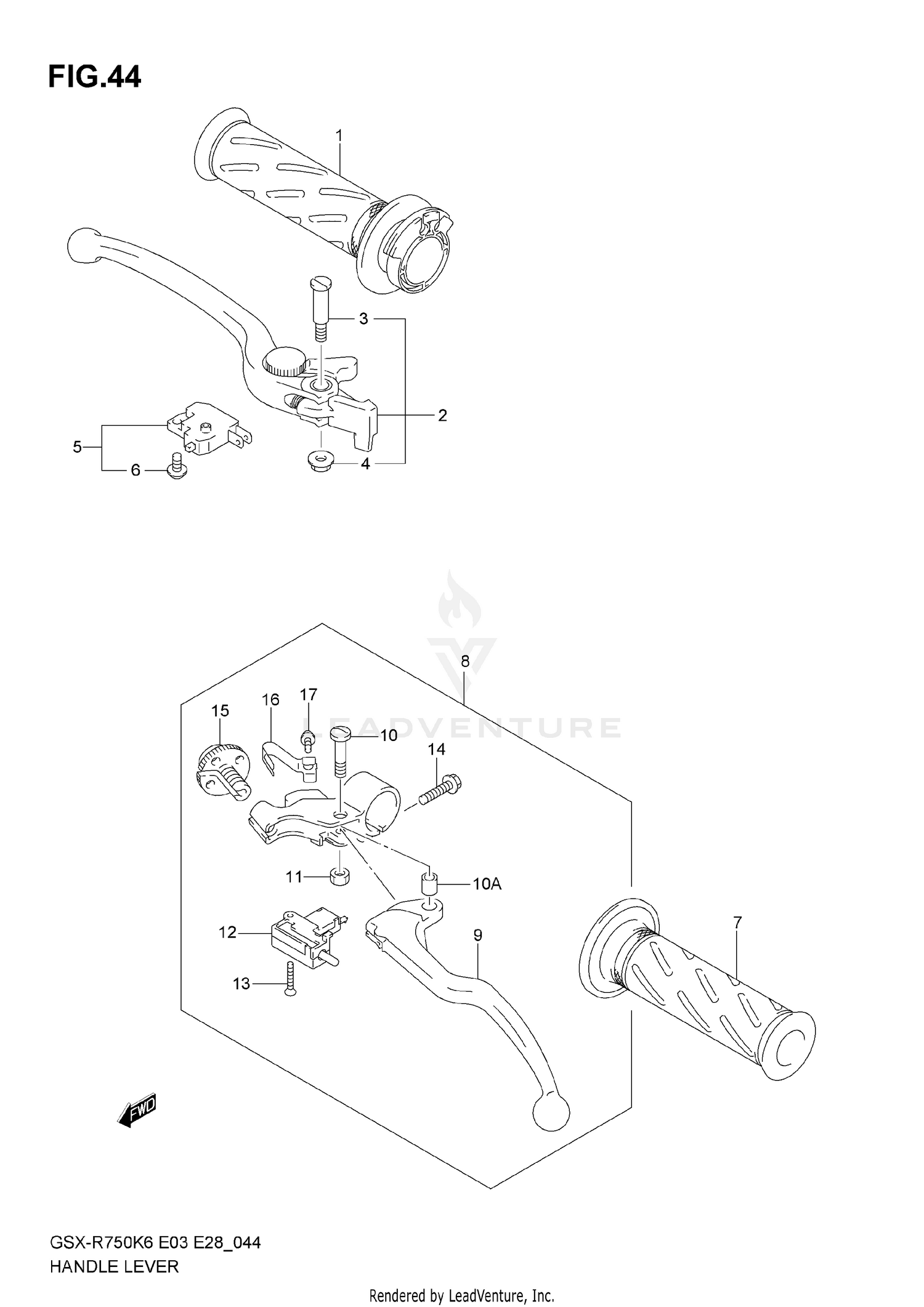

2006 Suzuki GSX-R 750 HANDLE LEVER OEM Parts Diagram

< Back to Assembly Types

Item	MSRP	Qty
#1 GRIP, THROTTLE (BLACK) 57110-29G00 Superseded by 57110-29G02-291	$30.99
Available: Ships in 7-12 days. Add to View Price
#2 LEVER ASSY, BRAKE 57300-29G00 Superseded by 57300-29G01	$71.48
Available: Ships in 7-12 days. Add to View Price
#3 BOLT, PIVOT 57431-29G00	$9.62
Available: Ships in 7-12 days. Add to View Price
#4 NUT 57433-09F00	$3.69
Available: Ships in 7-12 days. Add to View Price
#5 SWITCH ASSY,FRONT BRAKE 57460-17C11 Superseded by 57460-14J02	$39.82
Available: Ships in 7-12 days. Add to View Price
#6 SCREW 57465-17C00	$1.94
Available: Ships in 7-12 days. Add to View Price
#7 GRIP, LH (BLACK) 57211-22D01 Superseded by 57211-22D02-291	$15.06
Available: Ships in 7-12 days. Add to View Price
#8 LEVER ASSY,CLUT 57500-41G10 Superseded by 57500-41G11	$101.01
Available: Ships in 7-12 days. Add to View Price
#9 LEVER, CLUTCH 57621-41G00	$40.08
Available: Ships in 7-12 days. Add to View Price
#10 BOLT 57431-41G00	$12.04
Available: Ships in 7-12 days. Add to View Price
#10A SPACER 57532-41G00	$20.42
Available: Ships in 7-12 days. Add to View Price
#11 .NUT 08319-21063 Superseded by 08319-2106B	$2.28
Available: Ships in 7-12 days. Add to View Price
#12 SWITCH ASSY, CLUTCH 57560-05A00	$12.58
Available: Ships in 7-12 days. Add to View Price
#13 SCREW 02122-03208 Superseded by 02122-0320A	$1.81
Available: Ships in 7-12 days. Add to View Price
#14 BOLT 01547-06203 Superseded by 01547-0620B	$2.41
Available: Ships in 7-12 days. Add to View Price
#15 NUT, CABLE ADJUSTER 57641-33E21	$37.03
Available: Ships in 7-12 days. Add to View Price
#16 SPRING 57644-33E00	$9.33
Available: Ships in 7-12 days. Add to View Price
#17 SCREW, SPRING 57642-33E00	$3.52
Available: Ships in 7-12 days. Add to View Price
