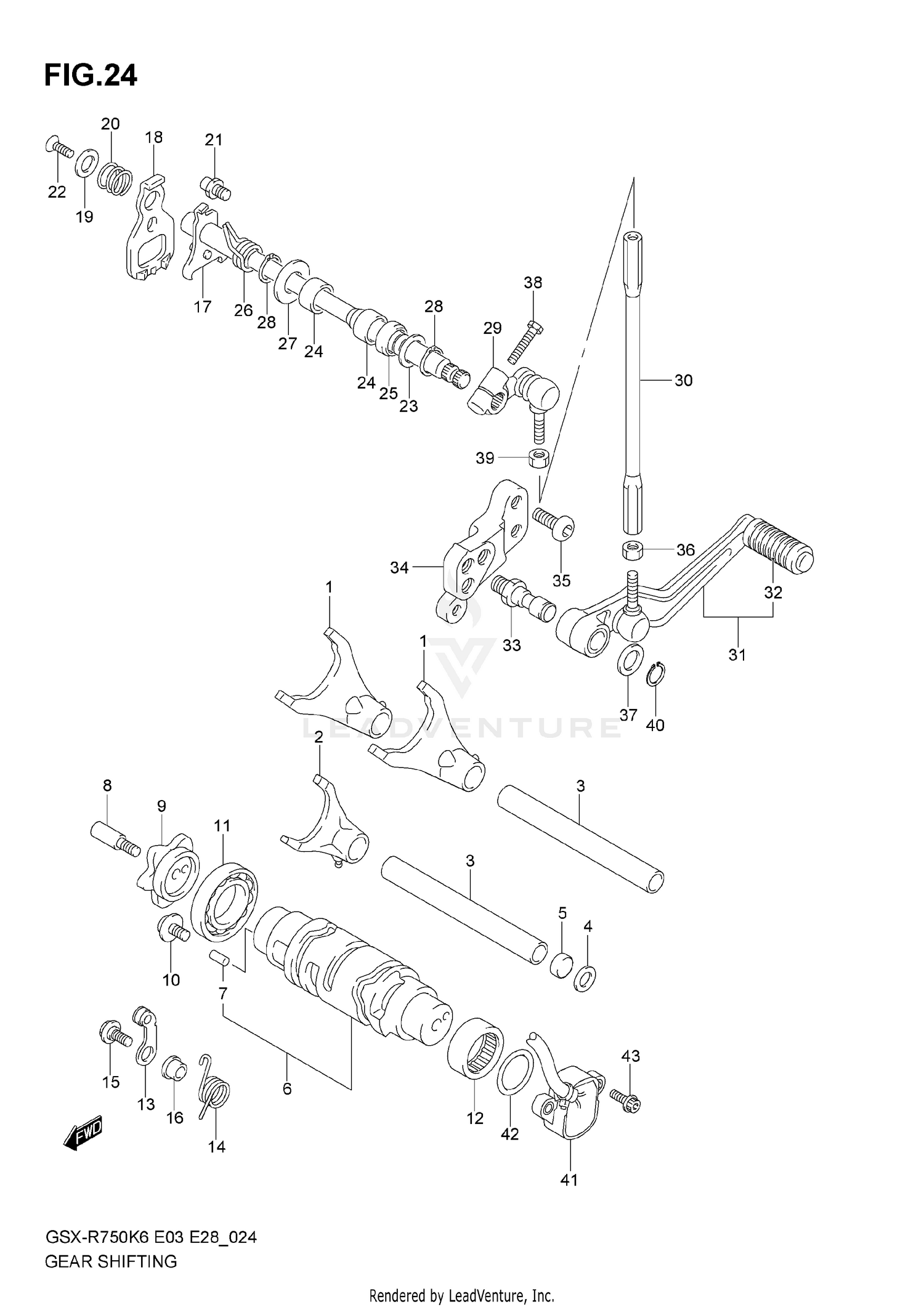

2006 Suzuki GSX-R 750 GEAR SHIFTING OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FORK, GEAR SHIFT, NO.1
25211-01H00
Superseded by 25211-01H01
|
$92.70 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
FORK,GEAR SHIFT NO.3
25231-01H00
Superseded by 25231-01H02
|
$68.93 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
SHAFT, GEAR SHIFT FORK
25411-35F00
|
$25.63 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
WASHER (6.5X16X1.2)
09160-06019-A05
Superseded by 09160-06019
|
$1.34 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
PLUG, GEAR SHIFT FORK
09241-14001
|
$3.12 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
CAM,GEAR SHIFT
25310-01H00
|
$224.73 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
PIN, SHIFT CAM
04221-04089
|
$1.09 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
BOLT, GEAR SHIFT CAM
25312-42F00
Superseded by 25312-42F01
|
$8.22 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
PLATE, GEAR SHIFT CAM
25381-13E30
|
$49.66 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
SCREW, GEAR SHIFT CAM
09136-06147-A05
Superseded by 09136-06147
|
$2.71 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
BEARING, GEAR SHIFT CAM
09262-25006
|
$25.47 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
BEARING, GEAR SHIFT
09263-25018
|
$21.33 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
STOPPER, SHIFT CAM
25350-06G00
|
$31.04 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
SPRING, SHIFT CAM STOPPER
25355-01H00
|
$4.46 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
BOLT,SHIFT CAM STOPPER ARM
25357-01H00
|
$4.23 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
SPACER, CAM STOPPER
25358-01H00
|
$9.60 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
SHAFT,GEAR SHIFT
25510-01H00
|
$102.19 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
PLATE, GEAR SHIFT CAM
25512-06G10
|
$31.77 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
PLATE, GEAR SHIFT CAM
25519-01H00
|
$5.23 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
SPRING, GEAR SHIFT RETURN
25518-01H00
|
$3.25 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
STOPPER, GEAR SHIFT ARM
25671-01011
|
$4.62 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#22
BOLT, GEAR SHIFT END
09126-06014-A05
Superseded by 09126-06014
|
$2.00 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#23
WASHER, GEAR SHAFT, LH
09160-14016
|
$1.88 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#24
BEARING, GEAR SHAFT
09263-14027
|
$13.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#25
SEAL, GEAR SHAFT
09283-14006
|
$6.68 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#26
SPRING, SHIFT RETURN
09444-20001
|
$5.22 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#27
WASHER, GEAR SHAFT
09181-14167
|
$2.47 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#28
CIRCLIP, SHIFT SHAFT
08331-31146
Superseded by 08331-3114A
|
$1.88 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#29
ARM,GEAR SHIFT
25520-01H00
Superseded by 25520-01H01
|
$47.13 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#30
ROD, GEAR SHIFT LINK
25525-01H00
|
$32.52 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#31
LEVER ASSY,GEAR
25600-01H00
Superseded by 25600-01H01
|
$134.91 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#32
RUBBER, GEAR PEDAL
25652-20C00
|
$5.62 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#33
SHAFT, GEAR SHIFT LEVER
25617-03F00-A05
Superseded by 25617-03F10
|
$12.77 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#34
BRACKET, GEAR SHIFT LEVER
25681-01H00
|
$107.38 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#35
BOLT, GEAR BRACKET
09106-08167
|
$3.46 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#36
NUT, LINK ROD, L
09140-06025
|
$1.75 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#37
WASHER (12.5X20X1)
09160-12011-A05
Superseded by 09160-12011
|
$1.40 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#38
BOLT, GEAR SHIFT ARM
01500-0625A
|
$1.75 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#39
.NUT
08310-00067
|
$1.81 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#40
CIRCLIP
08331-3112A
|
$1.75 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#41
SENSOR ASSY,GEAR POSITION
37730-01H00
Superseded by 37730-14J01
|
$76.47 | ||
|
Unavailable |
|||
|
#42
O RING, GEAR SHIFT
09280-26007
|
$6.75 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#43
BOLT, GEAR SHIFT SW
09106-05023
|
$2.71 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
