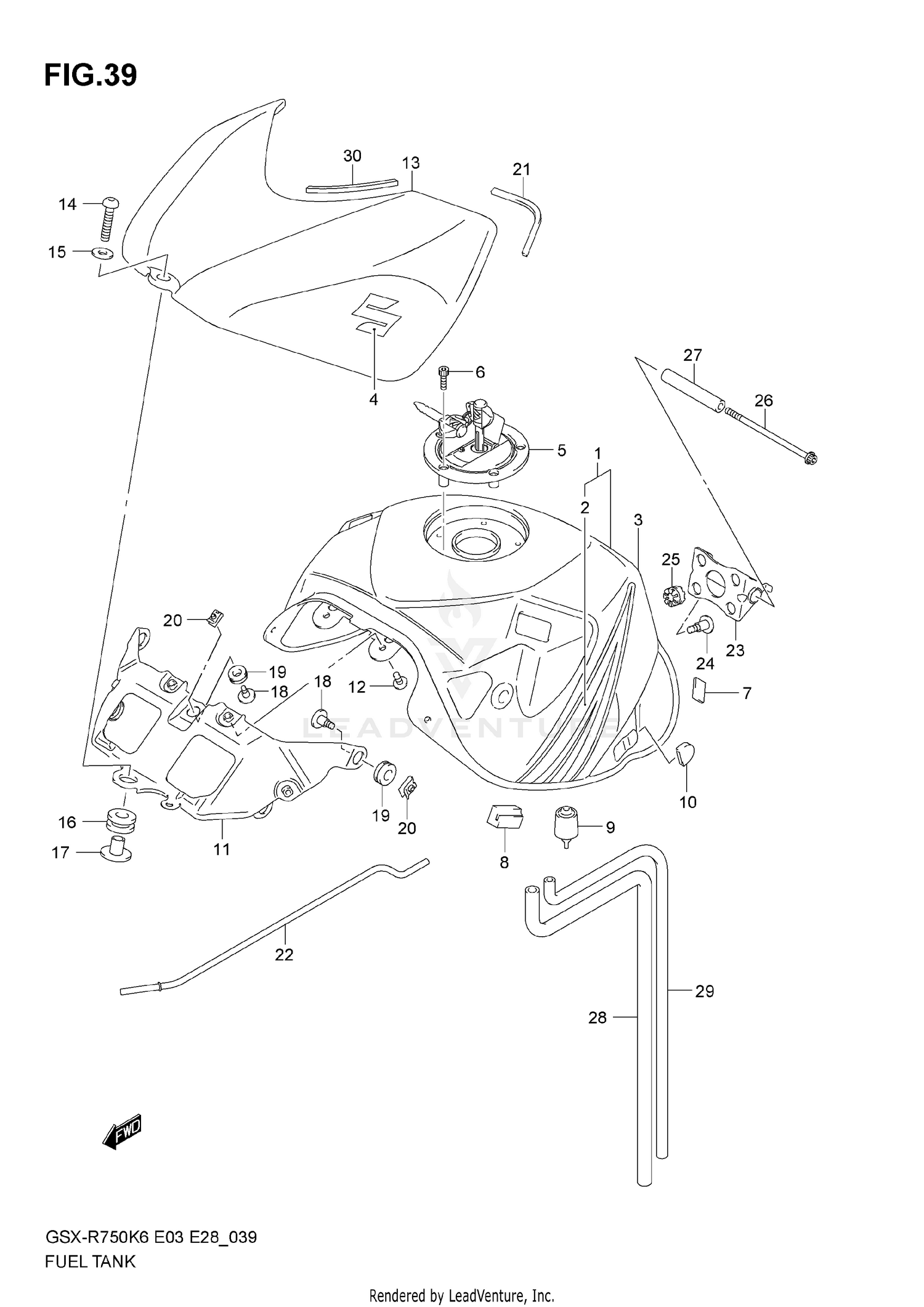

2006 Suzuki GSX-R 750 FUEL TANK (MODEL K6) OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
TANK ASSY, FUEL (BLACK)
44100-02H00-019
|
$961.86 | ||
|
Unavailable |
|||
|
#1
TANK ASSY, FUEL (BLACK)
44100-02H00-1PX
|
$1,030.75 | ||
|
Unavailable |
|||
|
#1
TANK ASSY, FUEL (BLUE)
44100-02H00-YKY
|
$1,030.75 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#1
TANK ASSY, FUEL (BLACK)
44100-02H20-019
|
$961.86 | ||
|
Unavailable |
|||
|
#1
TANK ASSY, FUEL (BLACK)
44100-02H20-1PX
|
$1,313.72 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#1
TANK ASSY, FUEL (BLUE)
44100-02H20-YKY
|
$961.86 | ||
|
Unavailable |
|||
|
#2
TAPE SET
68110-02H00-DBV
|
$45.64 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
TAPE SET
68110-02H00-DBW
|
$45.64 | ||
|
Unavailable |
|||
|
#2
TAPE SET
68110-02H00-DBY
|
$45.64 | ||
|
Unavailable |
|||
|
#3
TANK ASSY, FUEL (BLACK)
44100-01H00-019
|
$1,313.72 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
TANK ASSY, FUEL (BLACK)
44100-01H20-019
|
$1,030.75 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
EMBLEM
68111-18G20
|
$33.44 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
CAP SET,FUEL TANK FILLER
44200-16850
Superseded by 44200-16851
|
$165.43 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
CAP SET,FUEL TA
44200-16860
Superseded by 44200-16861
|
$176.03 | ||
|
Unavailable |
|||
|
#6
BOLT
09106-05017
|
$2.68 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
FASTENER
44572-13G00
|
$11.45 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
CUSHION,FUEL TA
44541-33E00
Superseded by 44541-33E01
|
$9.18 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
CUSHION, LOWER
44542-41G00
|
$7.94 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
CUSHION, SIDE COVER
09329-18001
|
$1.88 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
BRACKET, FRONT
44520-01H00
|
$59.67 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
SCREW, BRACKET
09139-06122
|
$3.02 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
COVER, TANK FRONT (BLACK)
44291-01H00-019
|
$314.33 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
COVER, TANK FRONT (BLUE)
44291-01H00-YKY
|
$314.33 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
SCREW, FRONT
09106-08156
|
$8.09 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
WASHER
09160-08054
|
$1.40 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
CUSHION
09320-12053
Superseded by 09320-12092
|
$3.36 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
SPACER
09180-08174-A05
Superseded by 09180-08174
|
$6.12 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
SCREW, TANK COVER
09139-05078
|
$3.46 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
CUSHION (8.5X20X8)
09320-08021
Superseded by 09320-08510
|
$1.67 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
NUT
09148-05052
|
$3.34 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
CUSHION, TANK COVER NO.1
44277-01H00
|
$5.33 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#22
STAY, FUEL TANK
44574-35F00
|
$15.69 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#23
BRACKET, REAR
44530-41G00
Superseded by 44530-41G01
|
$35.53 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#24
SCREW (6X22)
09139-06132
Superseded by 09139-06191
|
$4.15 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#25
CUSHION
09320-08071
|
$3.34 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#26
BOLT (6X110)
09106-06103-A05
Superseded by 09106-06119
|
$5.75 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#27
SPACER, JOINT
44561-18G00
|
$17.56 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#28
HOSE,TANK WATER
44423-41G00
Superseded by 44423-41G01
|
$17.33 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#29
HOSE,TANK BREAT
44424-41G00
Superseded by 44424-41G01
|
$19.08 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#30
CUSHION, TANK COVER NO.2
44278-01H00
|
$4.58 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
