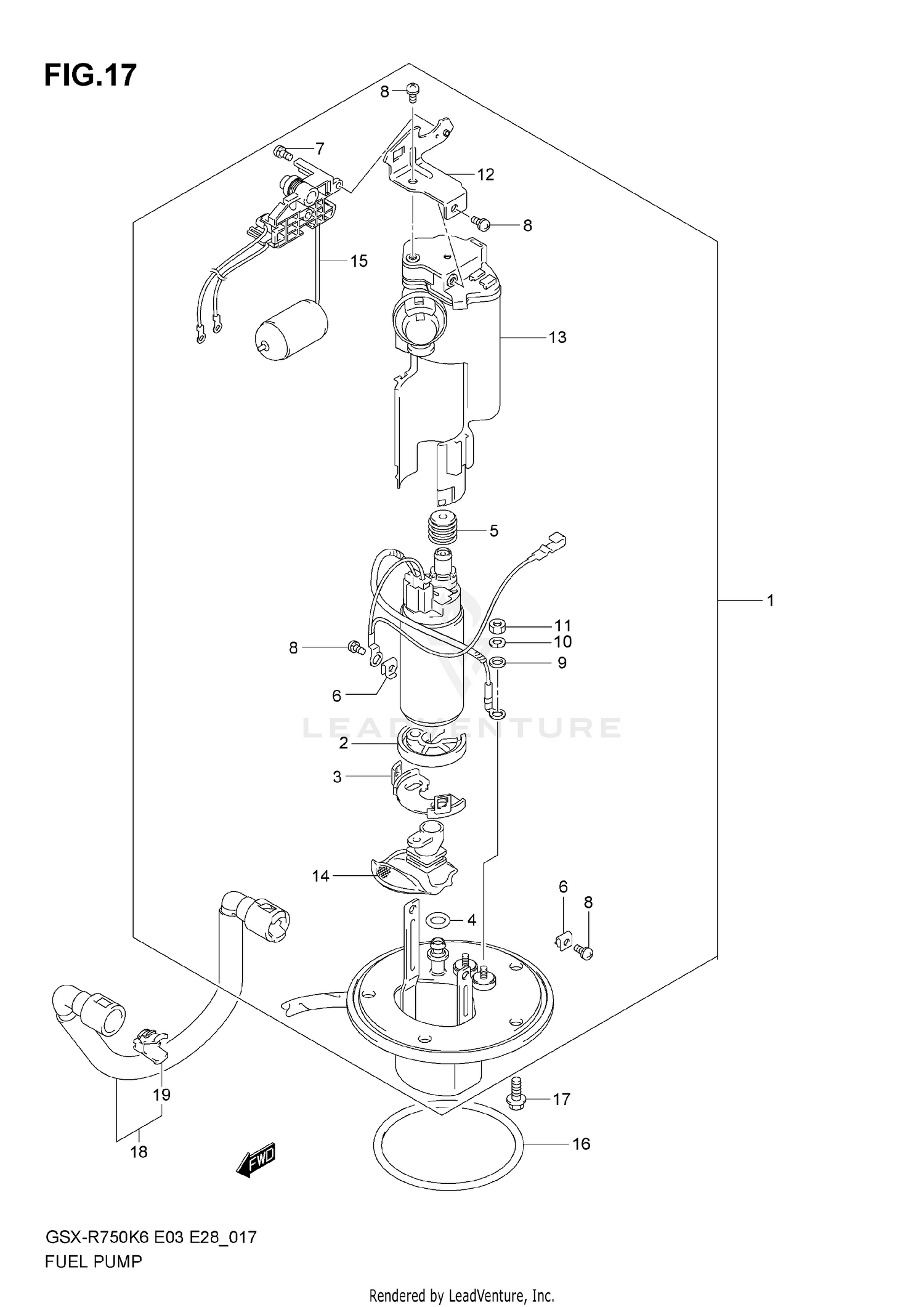

2006 Suzuki GSX-R 750 FUEL PUMP OEM Parts Diagram

< Back to Assembly Types

Item	MSRP	Qty
#1 PUMP ASSY,FUEL 15100-01H00-E00 Superseded by 15100-01H00	$984.19
Available: Ships in 7-12 days. Add to View Price
#2 CUSHION, FUEL PUMP 15111-35F00	$9.53
Available: Ships in 7-12 days. Add to View Price
#3 HOLDER, FUEL PUMP 15112-42F00	$19.80
Available: Ships in 7-12 days. Add to View Price
#4 O RING 15113-35F00	$9.22
Available: Ships in 7-12 days. Add to View Price
#5 BUSH, FUEL PUMP 15114-35F00	$15.76
Available: Ships in 7-12 days. Add to View Price
#6 NUT 15115-35F00	$10.66
Available: Ships in 7-12 days. Add to View Price
#7 SCREW 15116-06G10	$6.31
Available: Ships in 7-12 days. Add to View Price
#8 SCREW 15116-35F10	$6.49
Available: Ships in 7-12 days. Add to View Price
#9 WASHER 15171-35F00	$6.31
Available: Ships in 7-12 days. Add to View Price
#10 SPRING WASHER 15172-35F00	$6.31
Available: Ships in 7-12 days. Add to View Price
#11 NUT 15173-35F00	$5.26
Unavailable
#12 BRACKET, FUEL GAUGE 15181-01H00	$27.93
Available: Ships in 7-12 days. Add to View Price
#13 FILTER, FUEL 15410-41G00	$392.13
Available: Ships in 7-12 days. Add to View Price
#14 STRAINER, FUEL PUMP 15420-44G00	$88.40
Available: Ships in 7-12 days. Add to View Price
#15 GAUGE ASSY, FUEL LEVEL 34810-01H00	$185.68
Available: Ships in 7-12 days. Add to View Price
#16 O RING, FUEL PUMP 15201-35F00	$28.58
Available: Ships in 7-12 days. Add to View Price
#17 BOLT 07120-0612A	$2.47
Available: Ships in 7-12 days. Add to View Price
#18 HOSE, FUEL 15810-01H00	$60.16
Available: Ships in 7-12 days. Add to View Price
#19 RETAINER 15815-35F00	$8.09
Available: Ships in 7-12 days. Add to View Price
