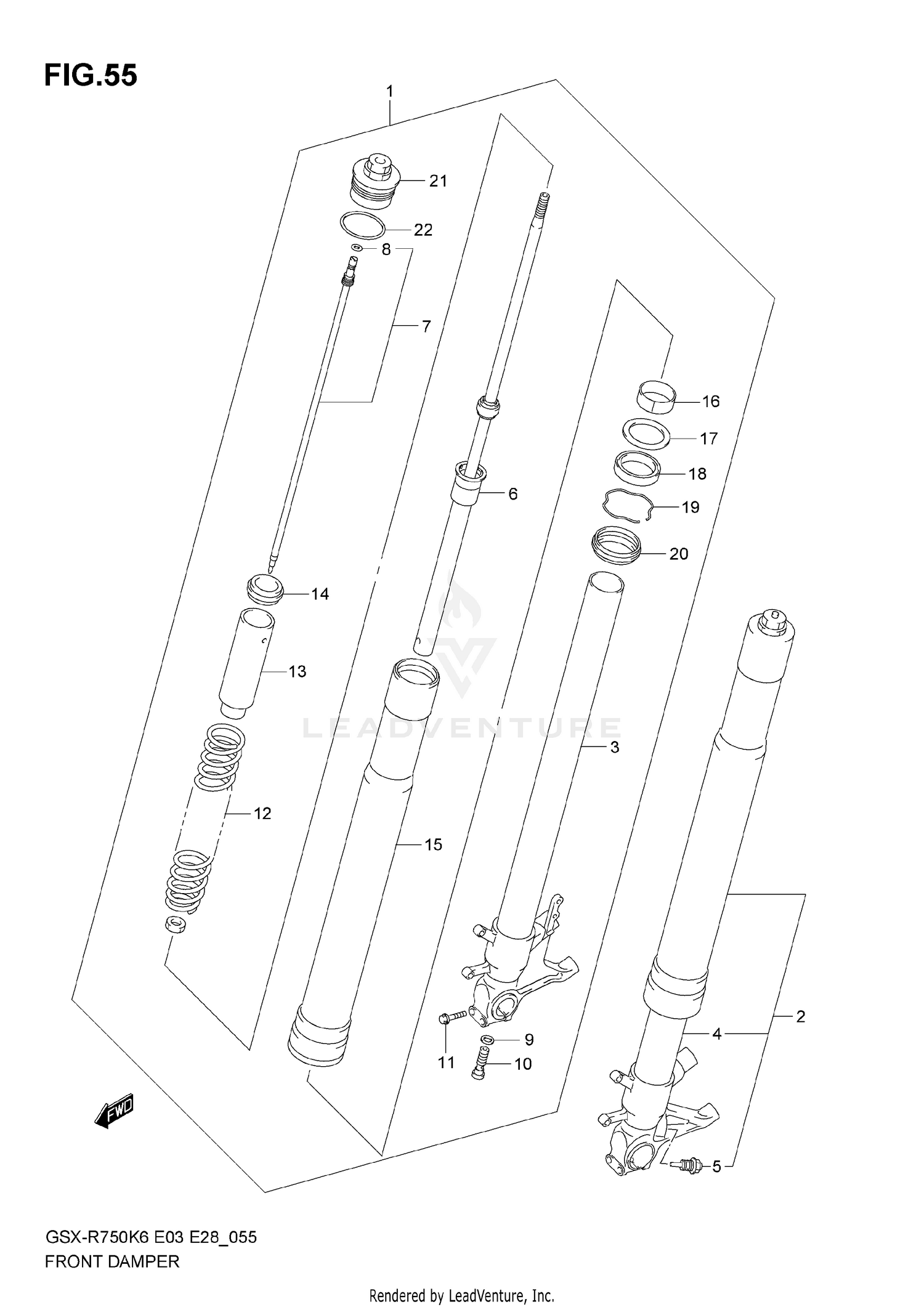

2006 Suzuki GSX-R 750 FRONT DAMPER OEM Parts Diagram

< Back to Assembly Types

Item	MSRP	Qty
#1 DAMPER ASSY, FRONT FORK RH 51103-02H00	$2,070.47
Available: Ships in 7-12 days. Add to View Price
#2 DAMPER ASSY, FRONT FORK LH 51104-02H00	$2,070.47
Available: Ships in 7-12 days. Add to View Price
#3 TUBE, INNER RH 51110-02H00	$938.37
Available: Ships in 7-12 days. Add to View Price
#4 TUBE, INNER LH 51120-02H00	$736.25
Available: Ships in 7-12 days. Add to View Price
#5 PIECE, ADJUSTER LOWER 51830-01H00	$64.14
Available: Ships in 7-12 days. Add to View Price
#6 ROD, DAMPER 52110-01H00	$665.94
Available: Ships in 7-12 days. Add to View Price
#7 PUSH ROD 51821-01H00	$40.82
Available: Ships in 7-12 days. Add to View Price
#8 O RING 09280-03002	$1.34
Available: Ships in 7-12 days. Add to View Price
#9 GASKET 09161-10009	$1.81
Available: Ships in 7-12 days. Add to View Price
#10 BOLT 51147-17C00	$19.83
Available: Ships in 7-12 days. Add to View Price
#11 BOLT, AXLE HOLDER 51166-35F00	$7.75
Available: Ships in 7-12 days. Add to View Price
#12 SPRING 51171-02H00	$99.87
Unavailable
#13 SPACER, SPRING 51176-29G00	$23.11
Available: Ships in 7-12 days. Add to View Price
#14 JOINT, SPRING UPPER 51175-22D00	$17.80
Available: Ships in 7-12 days. Add to View Price
#15 TUBE, OUTER 51131-02H00	$465.50
Unavailable
#16 BUSH, GUIDE 51152-17G00	$14.70
Available: Ships in 7-12 days. Add to View Price
#17 SPACER, SEAL 51168-01H00	$6.71
Available: Ships in 7-12 days. Add to View Price
#18 SEAL, OIL 51153-01H00	$27.86
Available: Ships in 7-12 days. Add to View Price
#19 RING, STOPPER 51556-38B00	$7.48
Available: Ships in 7-12 days. Add to View Price
#20 SEAL, DUST 51173-01H00	$12.04
Available: Ships in 7-12 days. Add to View Price
#21 BOLT, FORK 51189-01H00	$137.47
Available: Ships in 7-12 days. Add to View Price
#22 O RING, FORK BOLT 51187-01H00	$7.03
Available: Ships in 7-12 days. Add to View Price
