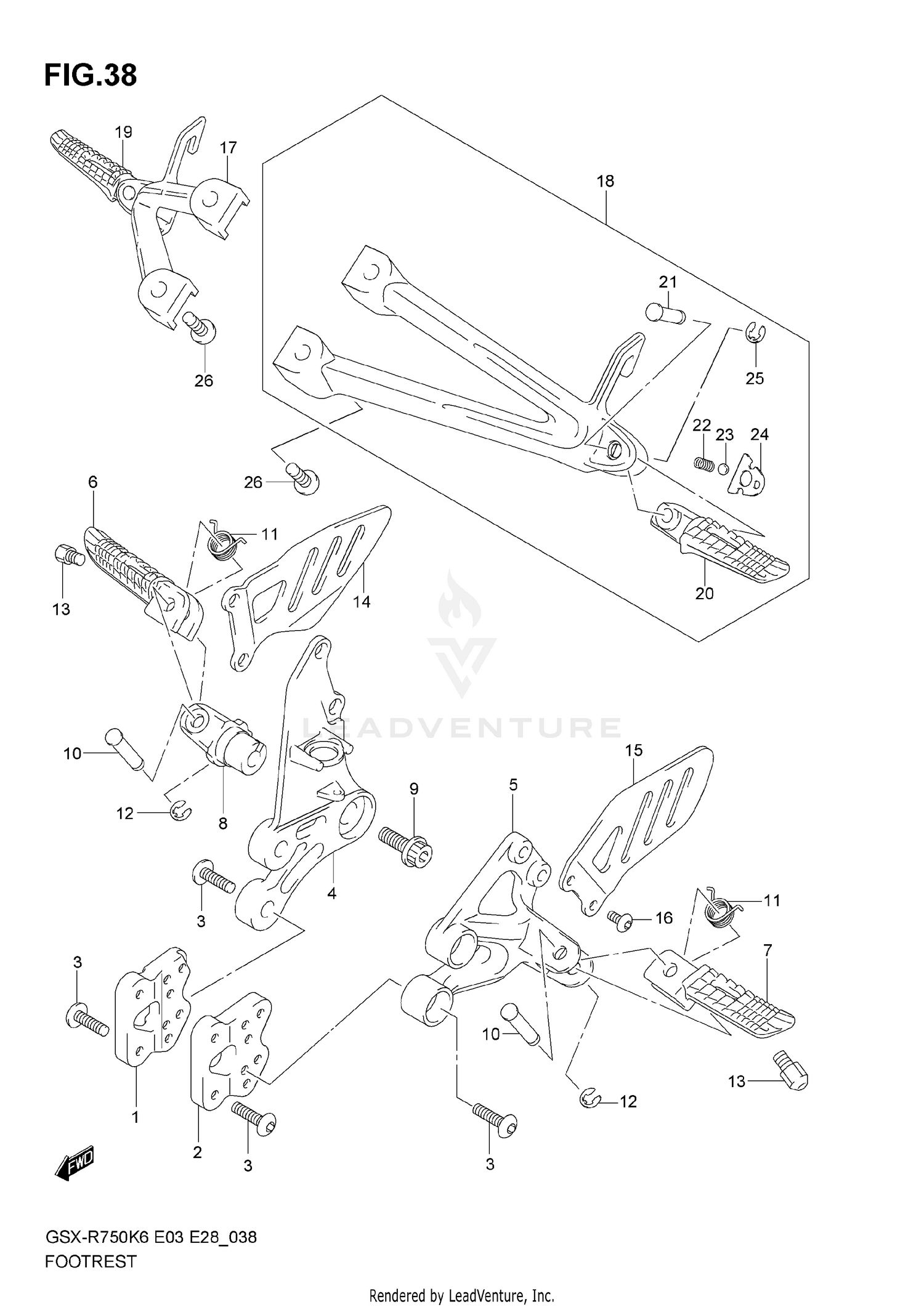

2006 Suzuki GSX-R 750 FOOTREST OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BRACKET, FRONT FOOTREST NO.1 RH
43541-01H00
|
$120.65 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
BRACKET, FRONT FOOTREST NO.1 LH
43551-01H01
|
$122.92 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
BOLT
09106-08181
|
$3.69 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
BRACKET, FRONT FOOTREST NO.2 RH
43511-01H01
|
$147.07 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
BRACKET, FRONT FOOTREST NO.2 LH
43521-01H00
|
$152.05 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
BAR, FOOTREST RH
43516-41G00
|
$101.31 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
BAR, FOOTREST LH
43526-41G00
|
$101.31 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
HOLDER, FOOTREST
43531-41G00
Superseded by 43531-41G10
|
$86.88 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
BOLT (10X28)
09106-10064-A05
Superseded by 09106-10064
|
$4.88 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
PIN
09208-08010-A05
Superseded by 09208-08010
|
$2.75 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
SPRING
09448-14037-A05
Superseded by 09448-14037
|
$3.12 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
E RING
08332-1106A
|
$1.40 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
BOLT, BANK SENSOR
43576-07D01-A05
Superseded by 43576-07D01
|
$9.16 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
GUARD,FRONT FOO
43571-01H00
Superseded by 43571-01H01
|
$59.23 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
GUARD,FRONT FOO
43576-41G00
Superseded by 43576-41G01
|
$56.09 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
SCREW,FOOTREST GUARD LH
43577-35F00
Superseded by 43577-35F10
|
$4.11 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
FOOTREST ASSY,P
43600-01H00-E00
Superseded by 43600-01H00-13L
|
$234.93 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
FOOTREST ASSY,P
43700-01H00-E00
Superseded by 43700-01H00-13L
|
$234.93 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
BAR, RH
43611-41G00
|
$56.04 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
BAR, LH
43621-41G00
|
$56.04 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
PIN
09208-08011-A05
Superseded by 09208-08011
|
$2.75 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#22
SPRING
09440-05005
|
$1.34 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#23
BALL
06111-07004
|
$1.21 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#24
PLATE,PILLION F
43816-01H01
Superseded by 43816-01H02
|
$5.14 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#25
E RING
08332-1106A
|
$1.40 | ||
|
Unavailable |
|||
|
#26
BOLT
09106-08181
|
$3.69 | ||
|
Unavailable |
|||
