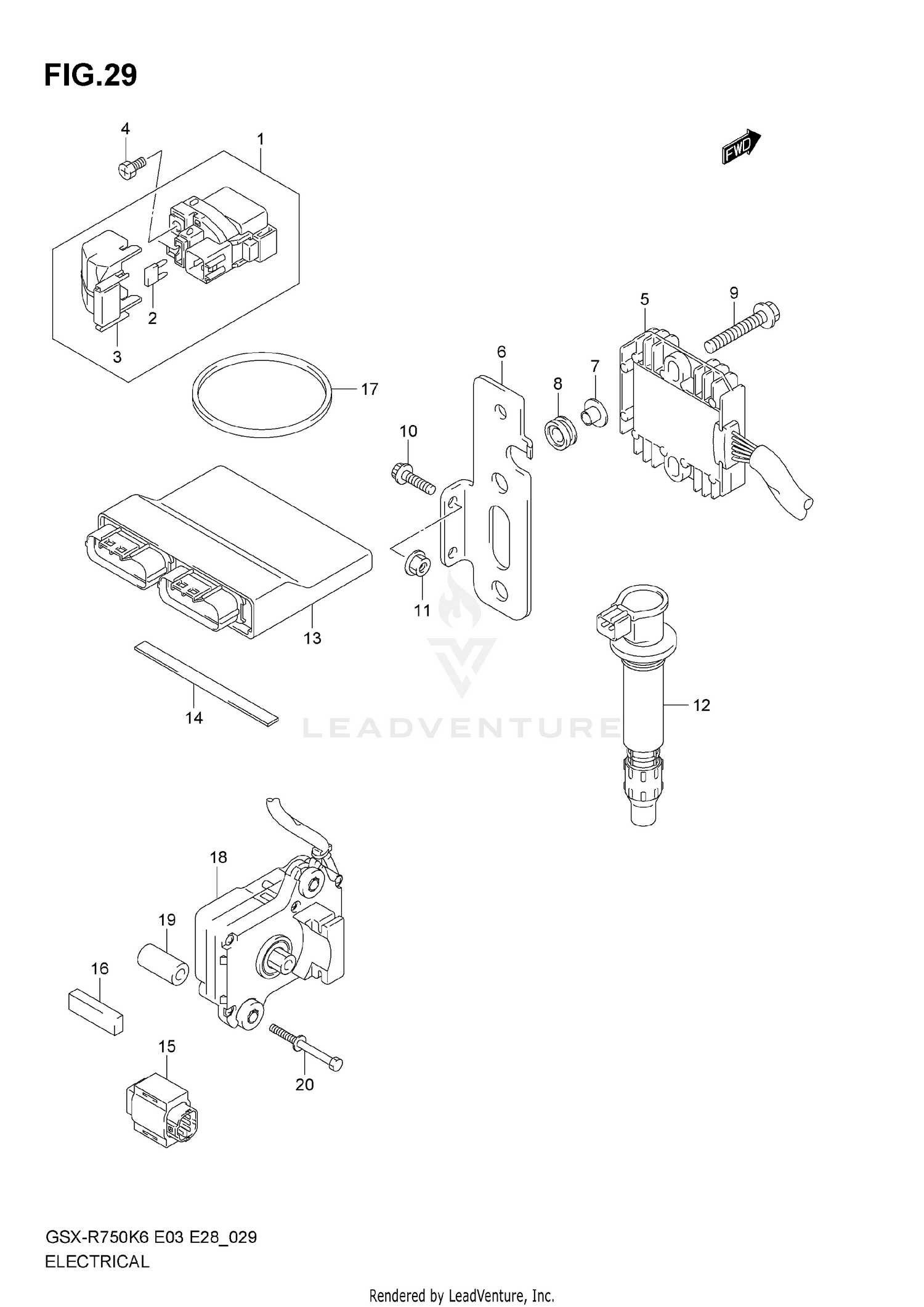

2006 Suzuki GSX-R 750 ELECTRICAL OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RELAY ASSY, STARTING MOTOR
31800-41G00
Superseded by 31800-41G10
|
$95.90 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
FUSE (30A)
09481-30501
|
$2.28 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
COVER, STARTER
31861-38G00
|
$4.29 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
BOLT (6X8)
09128-06013
|
$1.21 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
RECTIFIER ASSY
32800-02H00
Superseded by 32800-21H00
|
$272.55 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
BRACKET, RECT FTG
32830-01H00
|
$14.93 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
SPACER
09180-06325
|
$3.75 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
CUSHION, RECT FTG BRKT
09320-08072
|
$3.88 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
BOLT, RECTIFIER
02162-0630A
|
$1.74 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
BOLT, BRKT
07120-0616A
|
$2.47 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
NUT, RECTIFIER
08316-1006A
|
$2.15 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
COIL ASSY, IGNITION
33410-02H00
|
$155.61 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
CONTROL UNIT, FI
32920-02H10
|
$1,782.57 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
CUSHION (10X130X2)
33652-42F00
|
$2.03 | ||
|
Unavailable |
|||
|
#15
SENSOR ASSY, FUEL CUT
33960-06G10
|
$93.12 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
CUSHION, FUEL CUT
33652-02H00
|
$8.36 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
BAND, FI UNIT
09280-76005
|
$4.16 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
ACTUATOR ASSY
33970-41G00
Superseded by 33970-41G01
|
$419.28 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
SPACER, ACTUATOR (6.2X14.5X26)
09180-06345
|
$8.68 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
BOLT
01560-0650A
|
$2.65 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
