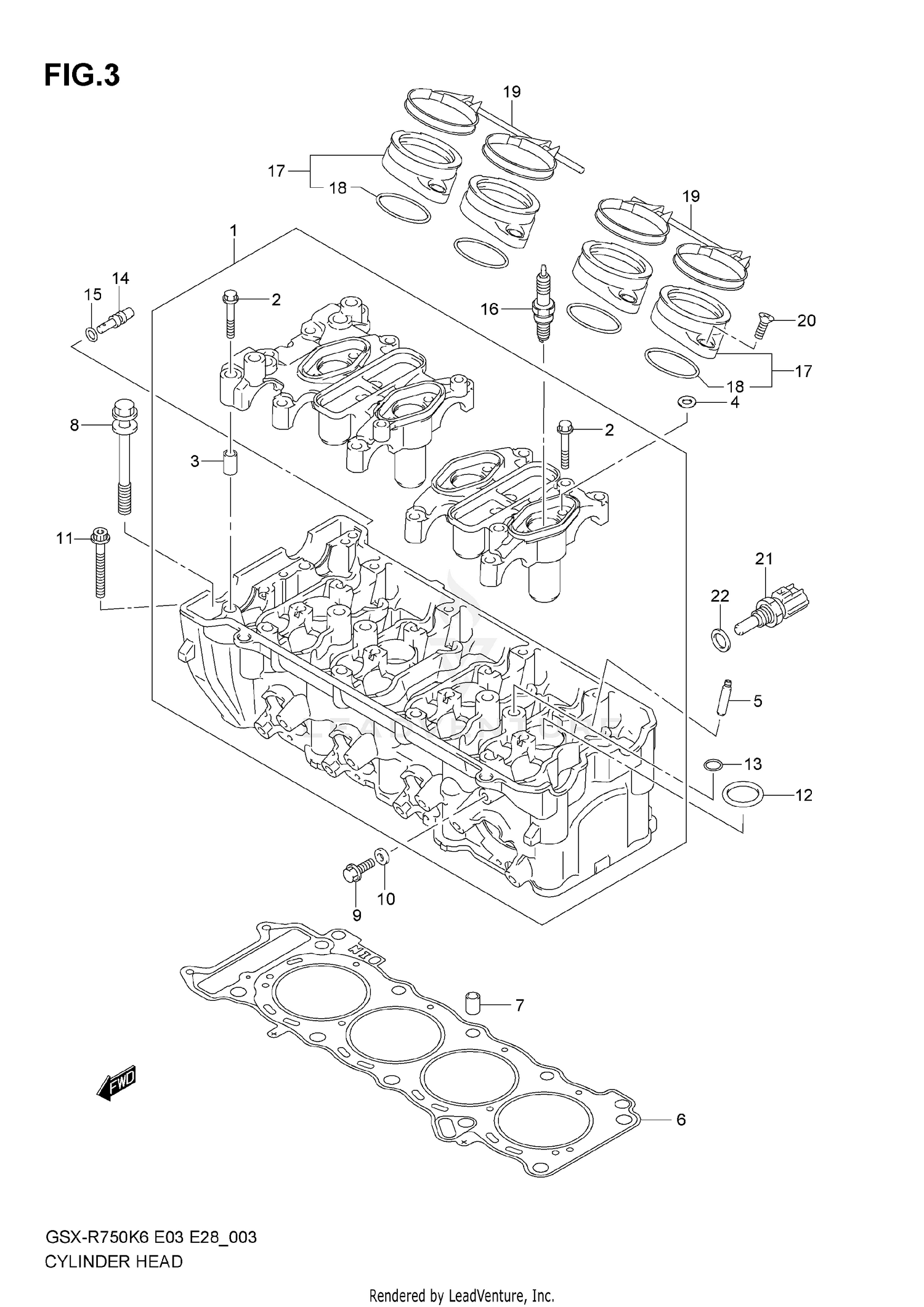

2006 Suzuki GSX-R 750 CYLINDER HEAD OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HEAD ASSY, CYLINDER
11100-02H00
|
$1,795.54 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
BOLT
09103-06266
|
$2.15 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
PIN
09206-08007
|
$2.55 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
WASHER
09168-06018
|
$1.62 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
GUIDE, VALVE (OS 0.5)
11115-29G70
|
$33.87 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
GASKET, CYLINDER HEAD
11141-02H00
|
$79.95 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
PIN
04211-11169
|
$1.75 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
BOLT (10X95)
11117-29G00
|
$9.25 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
BOLT, OIL GALLERY
09103-06222
|
$2.21 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
GASKET
09168-06023
|
$2.00 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
BOLT, CYLINDER HEAD
07120-0650A
|
$3.12 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
O-RING,SPARK PLUG PIPE
11179-81402
|
$4.34 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
O RING
09280-11001
|
$1.98 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
JET, OIL
09493-80005
|
$14.23 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
O RING
09280-04004
|
$1.62 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
SPARK PLUG (NGK,CR9E)
09482-00458
|
$7.13 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
SPARK PLUG (DENSO,U27ESR-N)
09482-00459
|
$6.56 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
SPARK PLUG (NGK,CR8E)
09482-00456
|
$7.40 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
SPARK PLUG (NGK,CR10E)
09482-00460
|
$7.13 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
SPARK PLUG (DENSO,U24ESR-N)
09482-00457
|
$6.56 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
SPARK PLUG (DENSO,U31ESR-N)
09482-00461
|
$13.64 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
PIPE ASSY,INTAK
13101-02H00
Superseded by 13101-02H01
|
$43.45 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
O RING (D:2.40,ID:41.7)
09280-42003
|
$8.62 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
CLAMP, INTAKE PIPE
13170-02H00-E00
Superseded by 13170-02H02
|
$27.66 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
BOLT (6X18.4)
09120-06007-A05
Superseded by 09120-06007
|
$3.12 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
SENSOR, WATER TEMPERATURE
13650-10G00
|
$90.34 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#22
GASKET
09168-12017
|
$1.93 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
