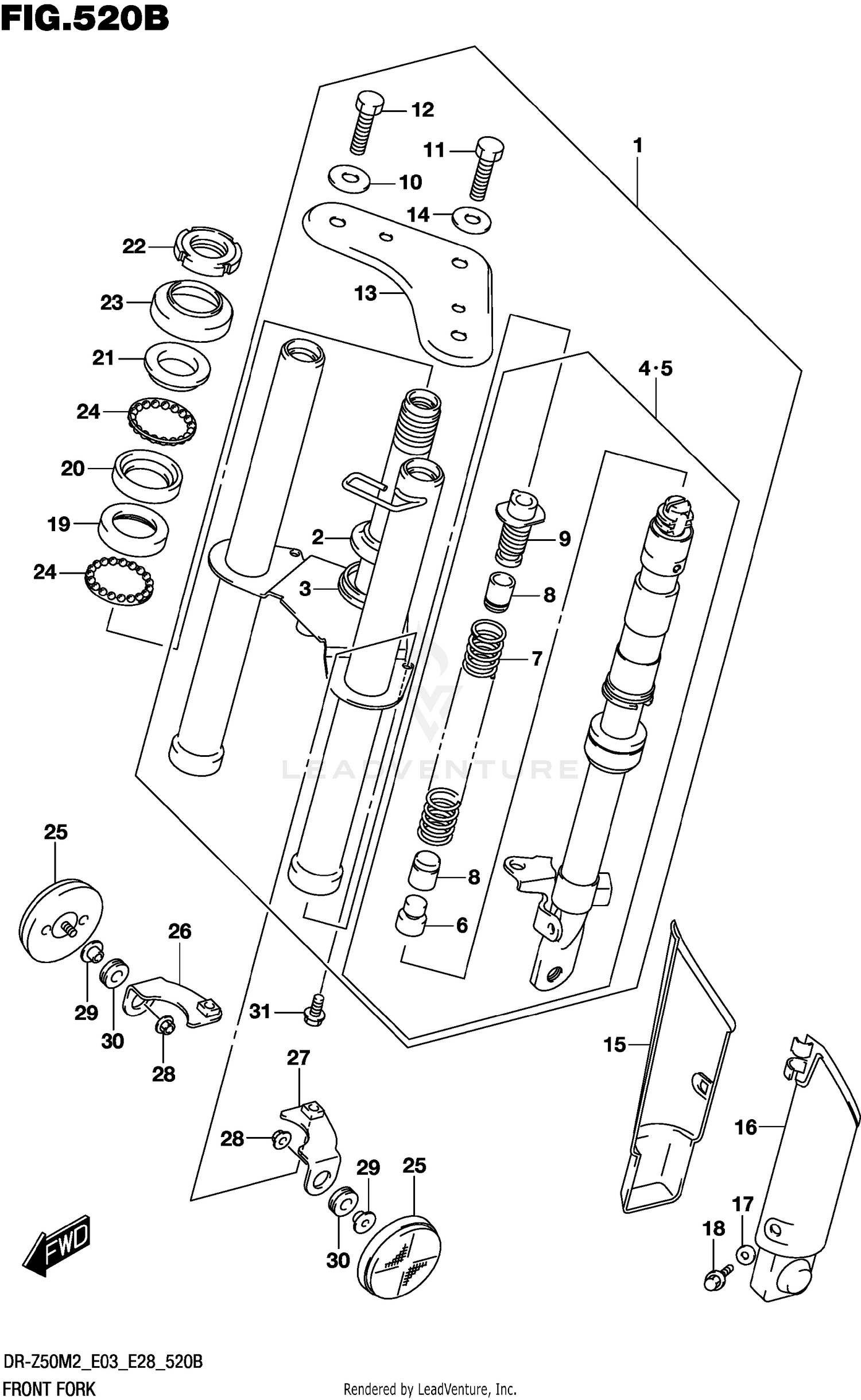

Front Fork (e28) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FORK SET,FRONT
51100-14831
|
$965.27 | ||
|
Available to order. Add to View Price |
|||
|
#2
.RACE,STEERING OUTER LOWER
51622-14H00
|
$11.13 | ||
|
Available to order. Add to View Price |
|||
|
#3
.SEAL,STEERING LWR
51644-14H01
|
$7.56 | ||
|
Available to order. Add to View Price |
|||
|
#4
.TUBE ASSY,FRONT FORK LOWER,R
51110-14H00
|
$424.60 | ||
|
Available to order. Add to View Price |
|||
|
#5
.TUBE ASSY,FRONT FORK LOWER,L
51120-14H00
|
$385.51 | ||
|
Available to order. Add to View Price |
|||
|
#6
..STOPPER
51116-14H00
|
$10.25 | ||
|
Unavailable |
|||
|
#7
..SPRING
51171-14H00
|
$38.25 | ||
|
Unavailable |
|||
|
#8
..STOPPER RUBBER
51292-14H00
|
$10.65 | ||
|
Available to order. Add to View Price |
|||
|
#9
..SPRING,JOINT B
51422-14H00
|
$30.55 | ||
|
Unavailable |
|||
|
#10
.WASHER (10X30X2.5)
09160-10144
|
$5.30 | ||
|
Available to order. Add to View Price |
|||
|
#11
.BOLT
01550-1035A
|
$4.18 | ||
|
Available to order. Add to View Price |
|||
|
#12
.BOLT
01550-1035A
|
$4.18 | ||
|
Unavailable |
|||
|
#13
.BRACKET,UPPER
51310-14H00
|
$64.98 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER
09160-10132
Superseded by 09160-10128-XC0
|
$3.04 | ||
|
Available to order. Add to View Price |
|||
|
#15
PROTECTOR,FR FORK,R (BLACK)
51501-14H00-019
|
$19.15 | ||
|
Available to order. Add to View Price |
|||
|
#16
PROTECTOR,FR FORK,L (BLACK)
51511-14H00-019
|
$19.15 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER
09169-06032
Superseded by 09169-06071
|
$2.92 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT
01547-0612A
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#19
RACE,STEERING INNER LOWER
51611-14H00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
RACE,STEERING INNER UPR
51611-20002
|
$11.96 | ||
|
Available to order. Add to View Price |
|||
|
#21
RACE,STEERING OUTER UPR
51621-28000
|
$11.96 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT,STEERING STEM (25X44X10)
51631-28000
|
$17.37 | ||
|
Available to order. Add to View Price |
|||
|
#23
DUST SEAL,STEERING UPR
51643-25001
|
$5.21 | ||
|
Available to order. Add to View Price |
|||
|
#24
BEARING (27X40.5X5)
09269-27001
|
$15.33 | ||
|
Available to order. Add to View Price |
|||
|
#25
REFLEX REFLECTOR
35950-14A20
|
$11.06 | ||
|
Unavailable |
|||
|
#26
BRACKET,FRONT SIDE RR,R
35956-14H00
|
|||
|
Unavailable |
|||
|
#27
BRACKET,FRONT SIDE RR,L
35957-14H00
|
|||
|
Unavailable |
|||
|
#28
NUT
09159-05049
|
$2.31 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER (6.3X17X6)
09169-06063
|
$3.96 | ||
|
Available to order. Add to View Price |
|||
|
#30
CUSHION (8.4X18X6)
09320-08066
|
$9.70 | ||
|
Available to order. Add to View Price |
|||
|
#31
SCREW
02162-0612A
|
$2.07 | ||
|
Available to order. Add to View Price |
|||
