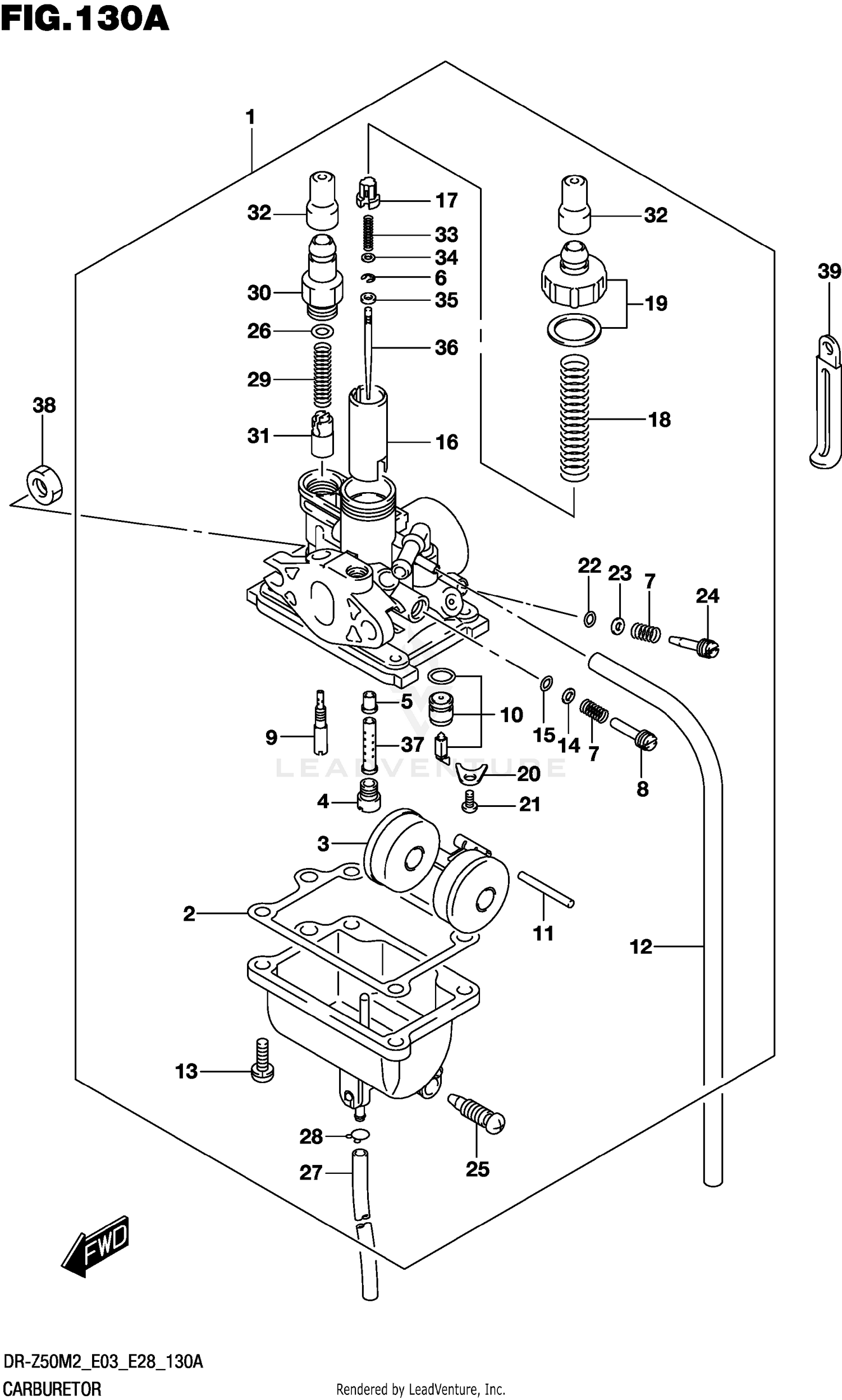

Carburetor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CARBURETOR ASSY
13200-14HB0
|
$251.15 | ||
|
Available to order. Add to View Price |
|||
|
#2
.GASKET
13251-02410
|
$6.31 | ||
|
Available to order. Add to View Price |
|||
|
#3
.FLOAT
13250-02500
|
$31.66 | ||
|
Available to order. Add to View Price |
|||
|
#4
.JET,MAIN (#55)
09491-55006
|
$18.20 | ||
|
Available to order. Add to View Price |
|||
|
#5
.JET,NEEDLE (E-5M)
13341-14H00
|
$44.27 | ||
|
Available to order. Add to View Price |
|||
|
#6
.E RING
13533-98410
|
$5.31 | ||
|
Available to order. Add to View Price |
|||
|
#7
.SPRING
13268-35010
|
$5.27 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
.SCREW,THROTTLE STOP
13483-16A01
|
$16.25 | ||
|
Available to order. Add to View Price |
|||
|
#9
.JET,PILOT (#17.5)
09492-17012
|
$24.42 | ||
|
Available to order. Add to View Price |
|||
|
#10
.VALVE ASSY,NEEDLE
13370-36G00
|
$57.84 | ||
|
Available to order. Add to View Price |
|||
|
#11
.PIN,FLOAT
13254-20010
|
$4.29 | ||
|
Available to order. Add to View Price |
|||
|
#12
.HOSE
09352-50006-600
|
$8.80 | ||
|
Available to order. Add to View Price |
|||
|
#13
.SCREW
13601-04148
|
$3.15 | ||
|
Available to order. Add to View Price |
|||
|
#14
.WASHER
13291-35010
|
$4.19 | ||
|
Available to order. Add to View Price |
|||
|
#15
.O-RING
13295-33010
|
$5.27 | ||
|
Available to order. Add to View Price |
|||
|
#16
.VALVE,PISTON
13551-36G00
|
$48.39 | ||
|
Available to order. Add to View Price |
|||
|
#17
.HOLDER
13418-12F40
|
$7.21 | ||
|
Available to order. Add to View Price |
|||
|
#18
.SPRING
13268-14H00
|
$5.60 | ||
|
Available to order. Add to View Price |
|||
|
#19
.CAP
13261-36G00
|
$37.54 | ||
|
Available to order. Add to View Price |
|||
|
#20
.PLATE,NEEDLE VALVE FITTING
13373-46710
|
$6.17 | ||
|
Available to order. Add to View Price |
|||
|
#21
.SCREW
02112-0306B
|
$1.85 | ||
|
Available to order. Add to View Price |
|||
|
#22
O-RING
13295-29901
|
$5.11 | ||
|
Available to order. Add to View Price |
|||
|
#23
.WASHER (14X17)
13291-29900
|
$2.00 | ||
|
Available to order. Add to View Price |
|||
|
#24
.ADJUSTER (2,0)
13269-43G00
|
$13.06 | ||
|
Available to order. Add to View Price |
|||
|
#25
.SCREW,DRAIN
13247-09G10
|
$6.01 | ||
|
Available to order. Add to View Price |
|||
|
#26
.O RING
13278-02330
|
$3.13 | ||
|
Available to order. Add to View Price |
|||
|
#27
.HOSE (3X7X600)
09355-30001-600
|
$10.07 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
.CLIP
13529-98011
|
$3.09 | ||
|
Available to order. Add to View Price |
|||
|
#29
.SPRING
13417-37200
|
$4.19 | ||
|
Available to order. Add to View Price |
|||
|
#30
.HOLDER,GUIDE
13418-14H00
|
$15.24 | ||
|
Available to order. Add to View Price |
|||
|
#31
.PLUNGER,STARTER
13411-22G00
|
$19.15 | ||
|
Available to order. Add to View Price |
|||
|
#32
.CAP
13416-26F00
|
$6.24 | ||
|
Available to order. Add to View Price |
|||
|
#33
.SPRING
13481-23F00
|
$5.67 | ||
|
Available to order. Add to View Price |
|||
|
#34
.WASHER
13382-23F00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#35
.RING
13387-23F00
|
$6.06 | ||
|
Available to order. Add to View Price |
|||
|
#36
.NEEDLE,JET
13383-14H00
|
$19.15 | ||
|
Available to order. Add to View Price |
|||
|
#37
.PIPE
13385-14HA0
|
$18.46 | ||
|
Available to order. Add to View Price |
|||
|
#38
NUT
09140-06027
|
$2.73 | ||
|
Available to order. Add to View Price |
|||
|
#39
CLAMP (L:80)
09404-06030
|
|||
|
Unavailable |
|||
