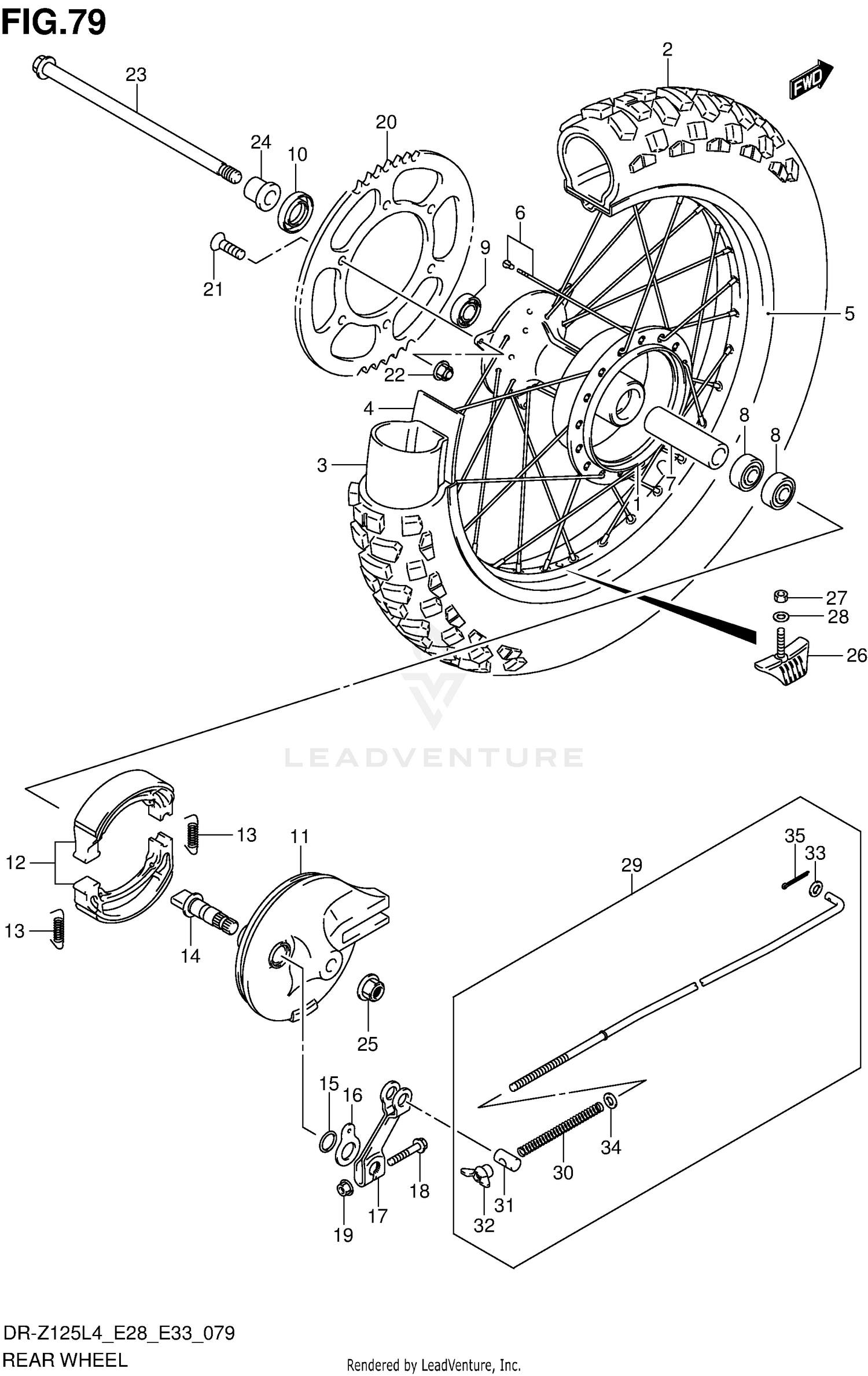

2014 Suzuki DR-Z 125 REAR WHEEL (DR-Z125L4 E28) OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HUB, REAR WHEEL
64110-08G10
|
$379.23 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
TIRE, REAR, 90/100-14 IRC
65110-08G00
|
$113.48 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
TUBE ASSY,WHEEL INNER
65200-08G00
Superseded by 65200-08G01
|
$22.76 | ||
|
Unavailable |
|||
|
#4
PROTECTOR, WHEEL INNER TUBE
65261-08G20
|
|||
|
Unavailable |
|||
|
#5
RIM, REAR WHEEL (14X1.60)
65311-08G20
|
$271.52 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
SPOKE SET, REAR WHEEL
65320-08G20
|
$64.98 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
SPACER (12.5X19X95.5)
09180-12151
|
$9.66 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
BEARING
08143-62017
Superseded by 08143-6201B
|
$10.77 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
BEARING
08123-63017
Superseded by 08123-6301B
|
$14.06 | ||
|
Unavailable |
|||
|
#10
SEAL, REAR HUB BEARING (20X37X7)
09283-20025
|
$5.62 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
PANEL, REAR BRAKE ANCHOR
64210-08G00
|
$157.78 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
SHOE SET, BRAKE
54401-43840
|
$35.39 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
SPRING (L:37.8)
09443-07044
|
$3.02 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
CAM, BRAKE
64441-13G00
|
$21.25 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
O RING (D:2.5,ID:13.8)
09280-14011
|
$4.75 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
PLATE, BRAKE LINING INDICATOR
54492-13G00
|
$4.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
LEVER, REAR BRAKE CAM
64451-08G00
|
$23.79 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
BOLT
01550-0635A
|
$2.28 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
NUT
08316-1006A
|
$2.15 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
SPROCKET, REAR (51T-428)
64511-08G00
|
$53.78 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
SCREW (8X30.5)
09120-08010
|
$2.21 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#22
NUT
08319-3108A
|
$2.28 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#23
AXLE, REAR
64711-08G00
|
$42.62 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#24
SPACER, AXLE
64751-08G00
|
$14.44 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#25
NUT
08319-3112A
|
$3.75 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#26
STOPPER, BEAD
65270-08G00
|
$47.95 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#27
NUT, BEAD STOPPER
08310-0008A
|
$1.81 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#28
WASHER
08322-0108A
|
$1.81 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#29
ROD ASSY, REAR BRAKE
43300-08G00
|
$18.83 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#30
SPRING
09440-09004
|
$1.88 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#31
PIN (11X18)
09209-11002
|
$2.00 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#32
NUT
09144-06005
|
$3.19 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#33
WASHER, FRONT
08322-0105A
|
$1.81 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#34
WASHER, REAR
08322-0106A
|
$1.81 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#35
COTTER PIN
04111-2020A
|
$1.21 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
