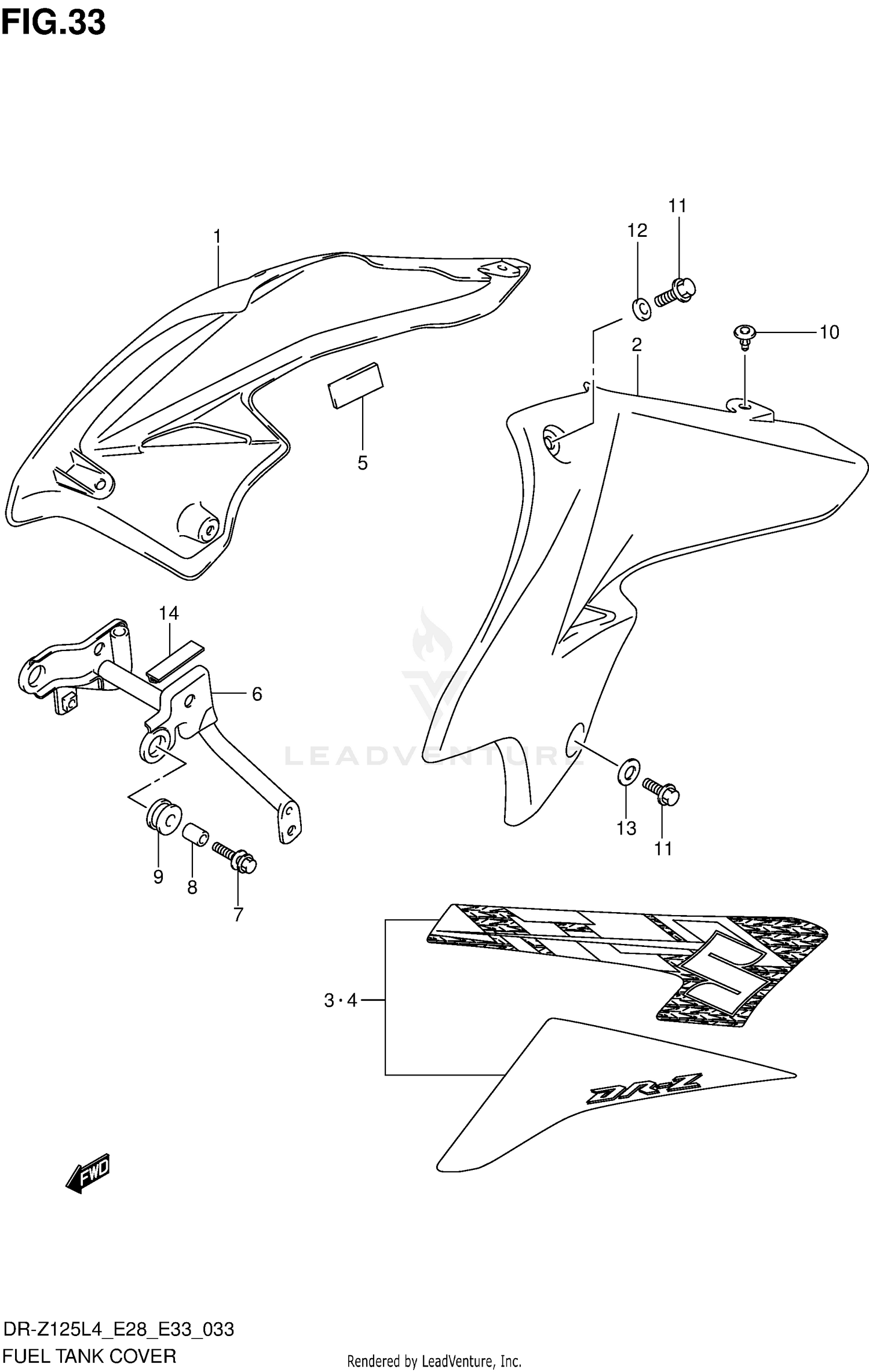

2014 Suzuki DR-Z 125 FUEL TANK COVER OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, FUEL TANK RH (YELLOW)
44271-08GA0-YU1
|
$50.23 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
COVER, FUEL TANK LH (YELLOW)
44281-08GA0-YU1
|
$50.23 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
TAPE SET, FUEL TANK COVER, RH (BLACK)
68110-08G90-AGB
|
$154.26 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
TAPE SET, FUEL TANK COVER, LH (BLACK)
68120-08G90-AGB
|
$44.38 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
CUSHION
44294-14H00
|
$4.14 | ||
|
Unavailable |
|||
|
#6
BRACKET, FRONT
44160-08GA0
|
$145.43 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
BOLT (6X25)
09116-06186
|
$2.47 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
SPACER (6.5X9X13.5)
09180-06268
|
$2.00 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
CUSHION,FUEL TANK SIDE
44512-04F00
Superseded by 44512-04F01
|
$3.75 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
CLIP (BLACK)
09409-08308-5ES
|
$1.94 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
BOLT
01547-0616A
|
$2.00 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
WSHER
09169-06081
|
$3.66 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
WSHER
09169-06053
|
$1.09 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
MOLDING, FUEL TANK BRKT
68241-04X50-300
|
$7.53 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
