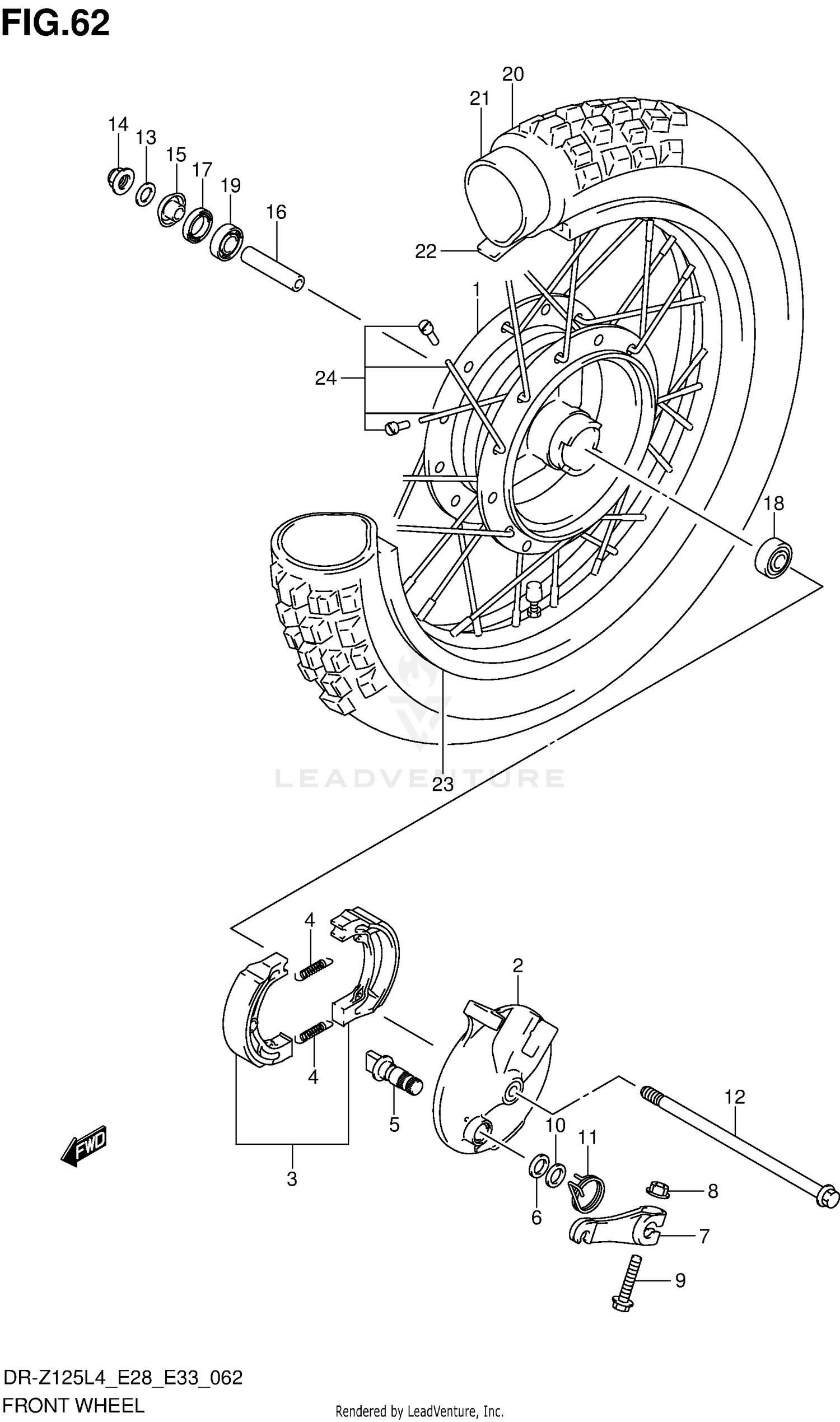

2014 Suzuki DR-Z 125 FRONT WHEEL (DR-Z125L4 E28) OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HUB, FRONT WHEEL
54110-09401
|
$160.75 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
PANEL, FRONT BRAKE ANCHOR
54210-08G00
|
$117.71 | ||
|
Unavailable |
|||
|
#3
SHOE SET, BRAKE
54401-43830
|
$49.00 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
SPRING
09443-07044
|
$3.02 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
CAM, FRONT BRAKE
54441-35401
|
$13.33 | ||
|
Unavailable |
|||
|
#6
DUST SEAL (ID:13.8,D:2.50)
09280-14011
|
$4.75 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
LEVER, BRAKE CAM
54451-26500
|
$15.20 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
NUT
08316-1006A
|
$2.15 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
BOLT
01550-0635A
|
$2.28 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
WASHER (14.5X22X1.6)
09160-14055
|
$2.34 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
SPRING, RETURN
54484-08G00
|
$7.17 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
AXLE, FRONT
54711-08G00
|
$25.47 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
WASHER (10.5X20X3.2)
09160-10005
|
$1.67 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
NUT
08319-3110A
|
$2.68 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
SPACER, AXLE RH
54740-26101
|
$16.51 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
SPACER (10.2X16X51)
09180-10148
|
$6.91 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
OIL SEAL (15X31X9.5)
09284-15001
|
$4.01 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
BEARING
08143-63007
Superseded by 08143-6300B
|
$12.95 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
BEARING
08113-62007
Superseded by 08113-6200B
|
$10.05 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
TIRE, FRONT, 70/100-17 40M IRC
55110-08G00
|
$87.83 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
TUBE ASSY,WHEEL INNER
55200-08G00
Superseded by 55200-08G01
|
$19.94 | ||
|
Unavailable |
|||
|
#22
PROTECTOR, INNER TUBE
55261-08G20
|
$4.44 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#23
RIM, WHEEL (17X1.40)
55311-08G20
|
$268.45 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#24
SPOKE SET, FRONT WHEEL
55320-08G20
|
$57.10 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
