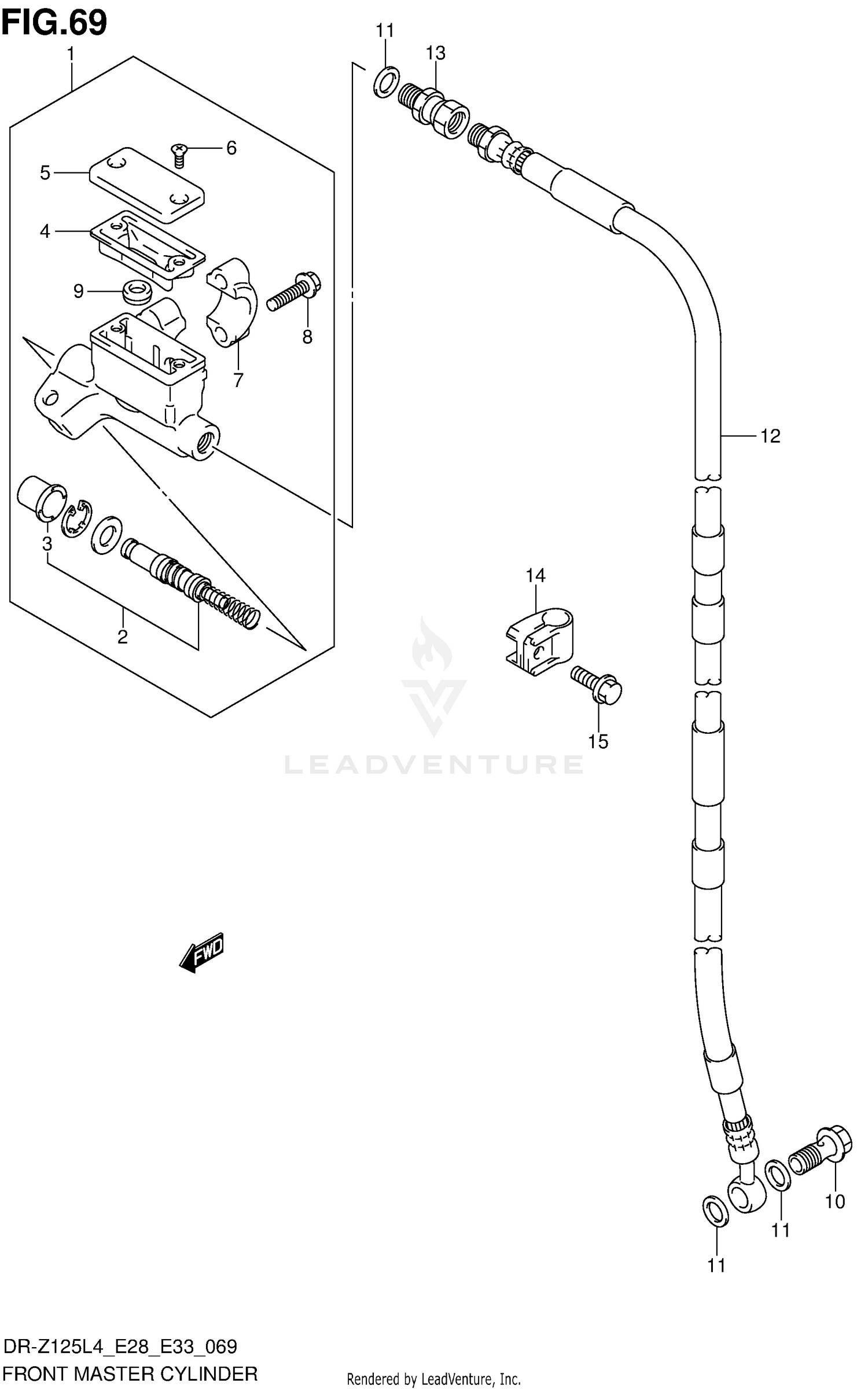

2014 Suzuki DR-Z 125 FRONT MASTER CYLINDER (DR-Z125LL4 E33) OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER ASSY, FRONT MASTER
59600-27C01
|
$256.23 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
PISTON & CUP SET
59600-27820
|
$53.41 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
BOOT
59666-44300
|
$6.00 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
DIAPHRAGM
59667-14500
|
$10.46 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
CAP
59669-27C01
|
$20.42 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
SCREW, RESERVOIR CAP
69689-49300
|
$1.68 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
HOLDER
59671-27C00
|
$14.91 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
BOLT
59675-27C00
|
$3.65 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
SEPARATOR
59748-14500
|
$10.39 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
UNION BOLT (10X1.25X22)
09360-10062
|
$6.41 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
WASHER (10X15X1.5)
09161-10009
|
$1.81 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
HOSE,FRONT BRAKE
59480-08G01
Superseded by 59480-08G02
|
$136.66 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
ADAPTER, BRAKE HOSE
59290-14501
|
$31.68 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
CLAMP, FRONT BRAKE HOSE
59243-03B01
|
$5.81 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
BOLT
01547-0616A
|
$2.00 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
