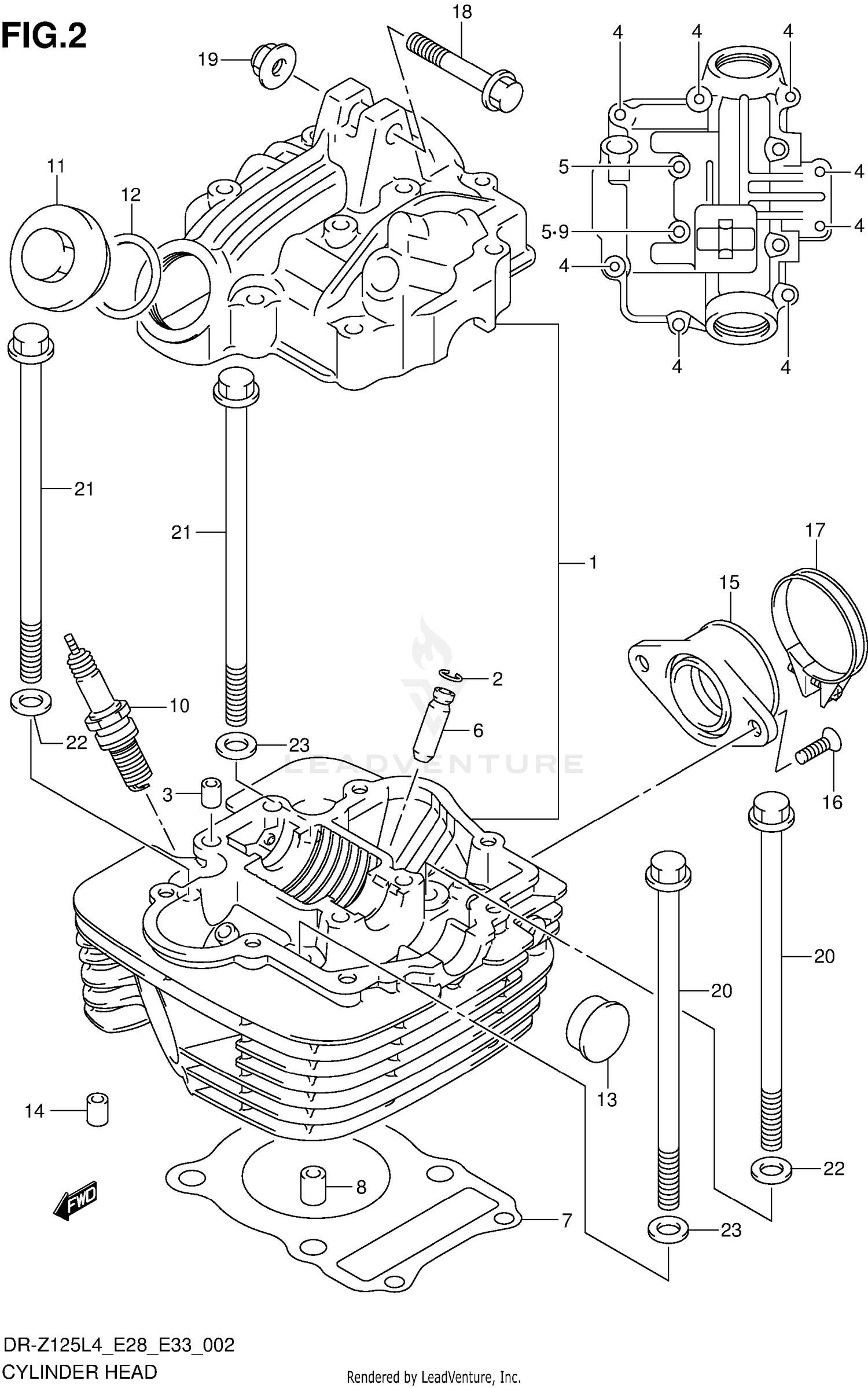

2014 Suzuki DR-Z 125 CYLINDER HEAD OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HEAD ASSY, CYLINDER
11100-08G00
|
$623.90 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
SNAP RING
09381-10004
|
$1.25 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
PIN (8X11)
09206-08001
|
$1.75 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
BOLT
01550-0635A
|
$2.28 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
BOLT
01550-0660A
|
$3.02 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
GUIDE, VALVE (OS:0.3)
11115-05270
|
$33.23 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
GASKET, CYLINDER HEAD
11141-05202
|
$12.58 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
KNOCK PIN
04211-11169
|
$1.75 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
GASKET (5.8X13X1.2)
09168-06023
|
$2.00 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
SPARK PLUG (DENSO,X24ESR-U)
09482-00223
|
$5.58 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
SPARK PLUG (NGK,DR8EA)
09482-00399
|
$3.65 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
CAP INSPECTION
11175-18900
Superseded by 11175-18920
|
$12.62 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
O RING (D:3,ID:29.5)
09280-30001
|
$1.62 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
PLUG (OD:22.5)
09241-22002
|
$5.22 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
PAD, CYLINDER HEAD RUBBER
11151-45000
|
$3.95 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
PIPE ASSY,INTAKE
13101-08G00
Superseded by 13101-08G01
|
$22.18 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
SCREW
02122-0616A
|
$1.40 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
CLAMP
09402-46208
|
$4.62 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
BOLT (8X50)
09103-08081
|
$3.13 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
NUT
08319-3108A
|
$2.28 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
BOLT (L:155)
09103-08378
|
$6.36 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
BOLT (L:165)
09103-08379
|
$6.36 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#22
GASKET (8.5X19X2.3)
09160-08039
|
$2.00 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#23
GASKET (8.5X17X2.3)
09168-08021
|
$2.47 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
