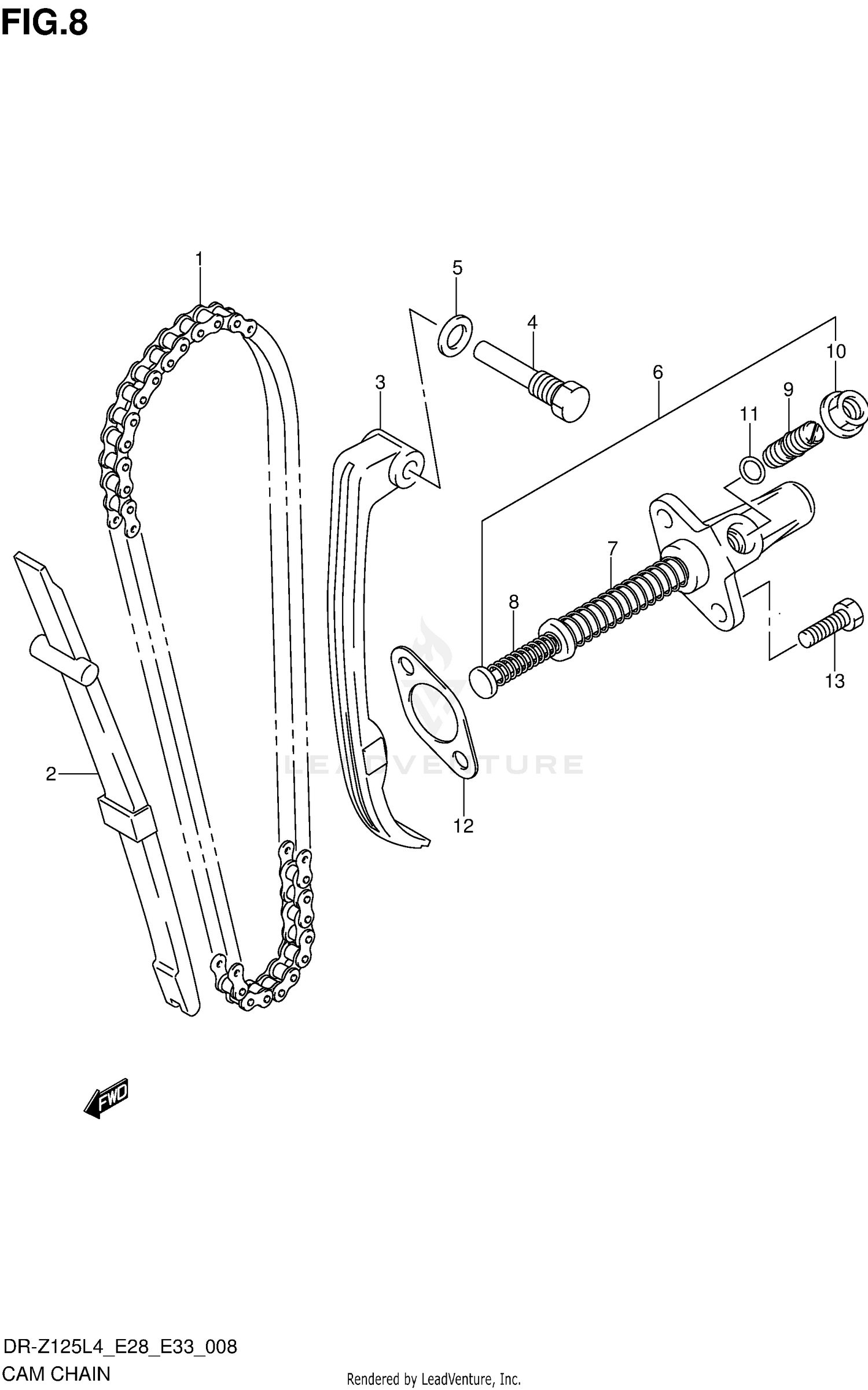

2014 Suzuki DR-Z 125 CAM CHAIN OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CHAIN, CAM SHAFT DRIVE
12760-44A00
|
$76.43 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
GUIDE, CAM CHAIN
12771-05200
|
$38.28 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
TENSIONER,CAM CHAIN
12811-05220
Superseded by 12811-05221
|
$33.17 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
BOLT, CAM CHAIN TENSIONER
12812-32400
|
$3.81 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
GASKET (8.2X14X1)
09168-08016
|
$1.63 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
ADJUSTER ASSY, TENSIONER
12830-05230
|
$123.51 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
SPRING
09440-12030
|
$2.11 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
SPRING
09440-08035
|
$2.55 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
BOLT
12838-08G00
|
$5.65 | ||
|
Unavailable |
|||
|
#10
NUT
08316-1008A
|
$2.38 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
O RING (D:1.9,ID:5.7)
09280-06005
|
$1.40 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
GASKET, TENSIONER ADJUSTER
12837-32410
|
$2.68 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
BOLT
01547-0620A
|
$2.00 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
