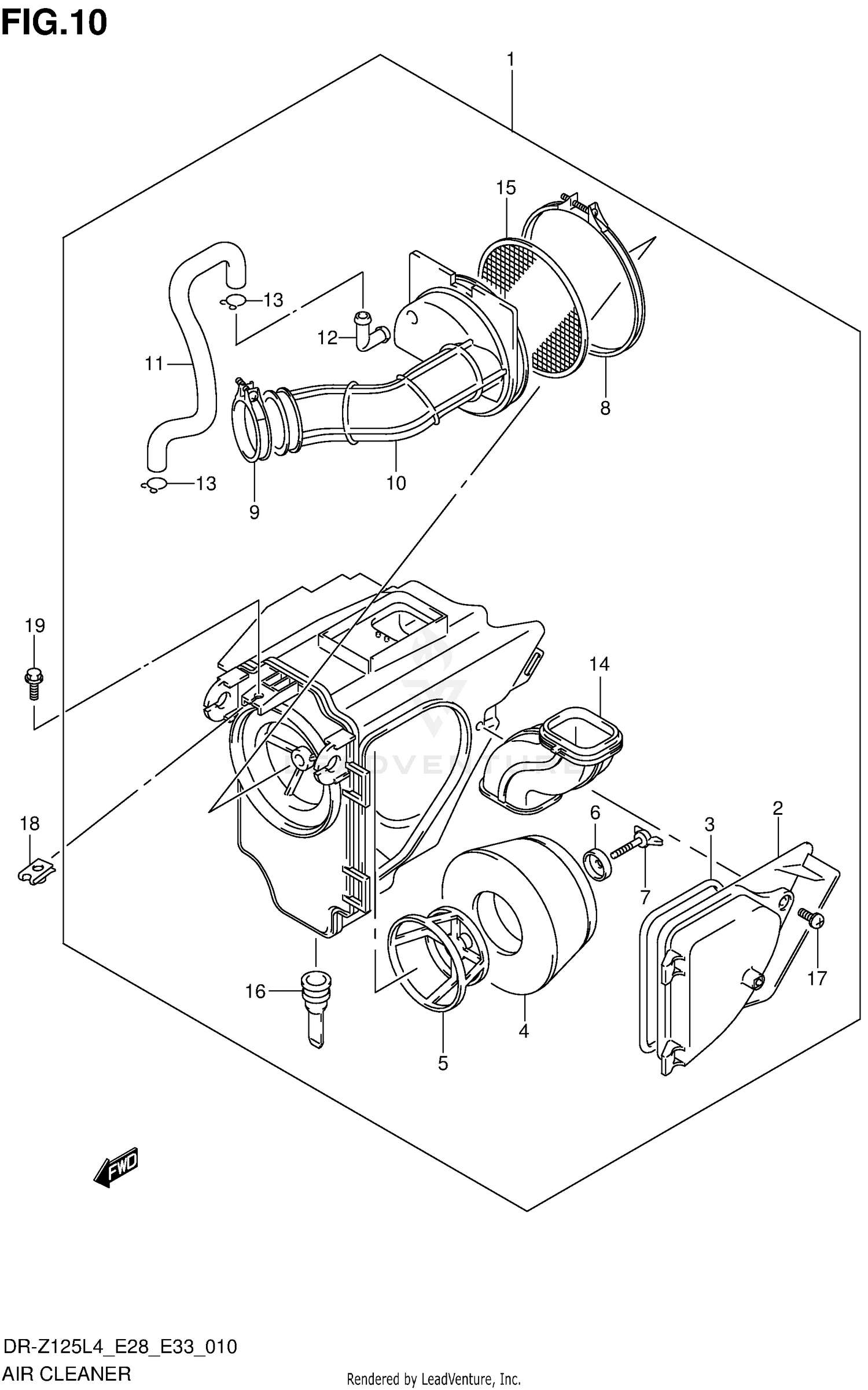

2014 Suzuki DR-Z 125 AIR CLEANER OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CLEANER ASSY,AIR
13700-08G01
Superseded by 13700-08G02
|
$183.76 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
CAP, AIR CLEANER
13740-08G01
|
$24.35 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
GASKET
13746-08G00
|
$4.36 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
FILTER
13780-08G00
|
$39.45 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
HOLDER, FILTER
13791-08G00
|
$10.84 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
WASHER, FILTER
13792-13A01
|
$4.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
BOLT, WING
13831-31G00
|
$8.34 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
CLAMP (CLEANER SIDE)
13826-14D01
|
$9.65 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
CLAMP (CARBURETOR SIDE)
09402-48208
|
$4.62 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
.TUBE,OUTLET
13881-08G00
Superseded by 13881-08G01
|
$36.73 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
TUBE, BREATHER
13853-08G00
|
$20.55 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
JOINT
13858-14D20
|
$7.48 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
CLIP
09401-14301
|
$2.00 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
TUBE, INLET
13891-08G00
|
$25.70 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
TRAP, FLAME
13810-03G00
|
$10.38 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
.CAP,DRAIN
13681-19B00
Superseded by 13681-19B01
|
$5.81 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
SCREW
02142-0516B
|
$1.87 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
NUT, AIR CLEANER
09148-06021
|
$3.69 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
BOLT, AIR CLEANER
01547-0612A
|
$2.00 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
