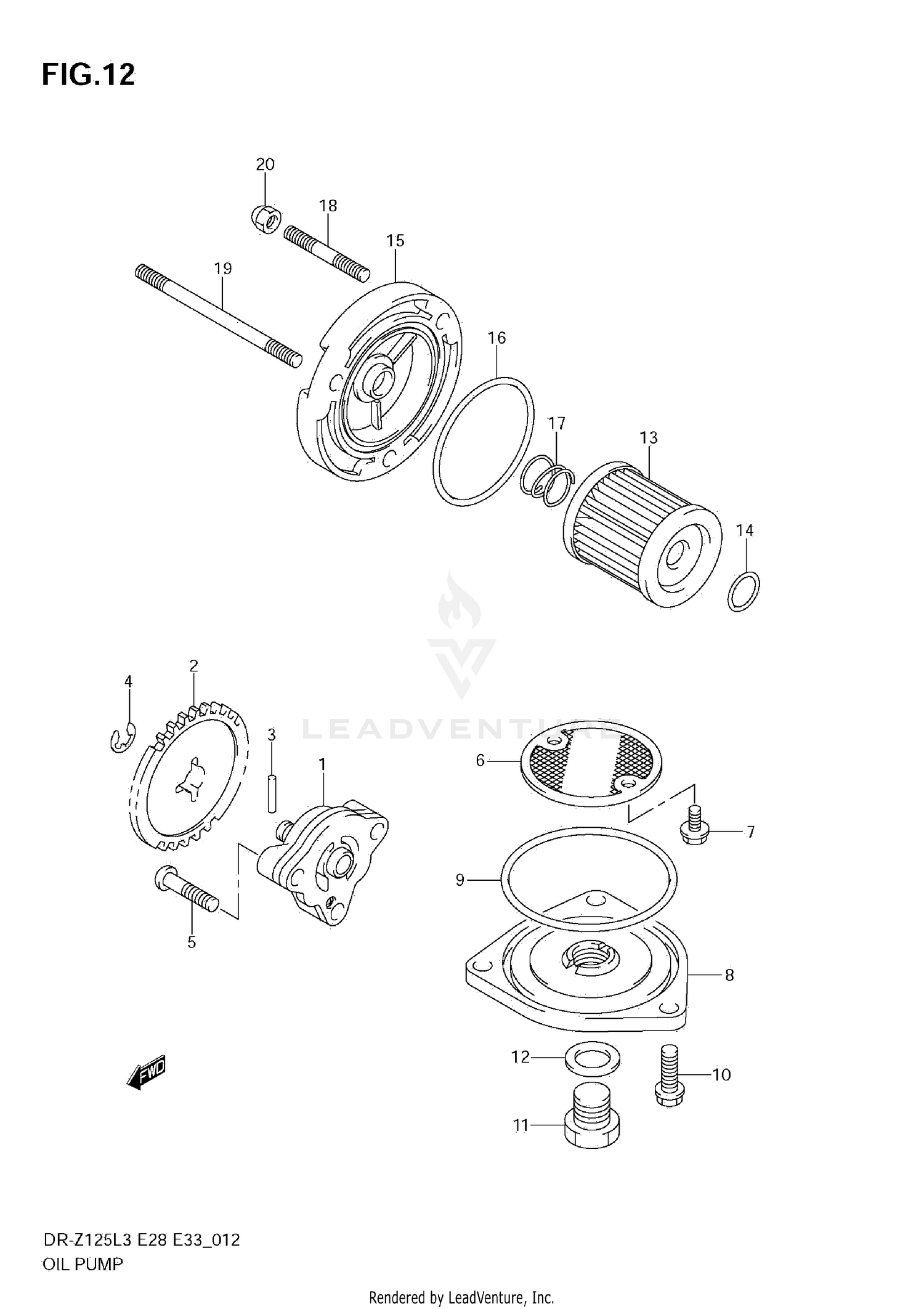

2013 Suzuki DR-Z 125 OIL PUMP OEM Parts Diagram

< Back to Assembly Types

Item	MSRP	Qty
#1 PUMP ASSY, ENGINE OIL 16400-42A01	$136.72
Available: Ships in 7-12 days. Add to View Price
#2 GEAR, OIL PUMP DRIVEN 16331-04B00	$39.74
Available: Ships in 7-12 days. Add to View Price
#3 PIN (2.5X11.8) 09261-02008	$1.40
Available: Ships in 7-12 days. Add to View Price
#4 E RING 08332-1106A	$1.40
Available: Ships in 7-12 days. Add to View Price
#5 SCREW 02112-0625A	$1.77
Available: Ships in 7-12 days. Add to View Price
#6 STRAINER 16520-05202	$6.00
Available: Ships in 7-12 days. Add to View Price
#7 SCREW 02112-7512A	$2.36
Available: Ships in 7-12 days. Add to View Price
#8 CAP, OIL STRAINER 16523-05200	$14.70
Available: Ships in 7-12 days. Add to View Price
#9 O RING (D:2.4,ID:60.5) 09280-60005	$3.15
Available: Ships in 7-12 days. Add to View Price
#10 BOLT 01547-0620A	$2.00
Available: Ships in 7-12 days. Add to View Price
#11 PLUG (14X12) 09247-14026	$3.75
Available: Ships in 7-12 days. Add to View Price
#12 GASKET (13.8X18.8X0.4) 09168-14002	$2.25
Available: Ships in 7-12 days. Add to View Price
#13 FILTER, OIL 16510-25C00	$8.42
Available: Ships in 7-12 days. Add to View Price
#14 O RING (D:1.9,ID:13) 09280-13004	$2.14
Available: Ships in 7-12 days. Add to View Price
#15 CAP, OIL FILTER 16512-42A20	$28.81
Available: Ships in 7-12 days. Add to View Price
#16 O RING (D:2.4,ID:52.6) 09280-54001	$3.75
Available: Ships in 7-12 days. Add to View Price
#17 SPRING, OIL FILTER CAP 09440-18002	$1.09
Available: Ships in 7-12 days. Add to View Price
#18 STUD BOLT 09108-06123	$3.09
Available: Ships in 7-12 days. Add to View Price
#19 STUD BOLT (L:90) 09108-06108	$3.75
Available: Ships in 7-12 days. Add to View Price
#20 NUT 08313-1006A	$1.81
Available: Ships in 7-12 days. Add to View Price
