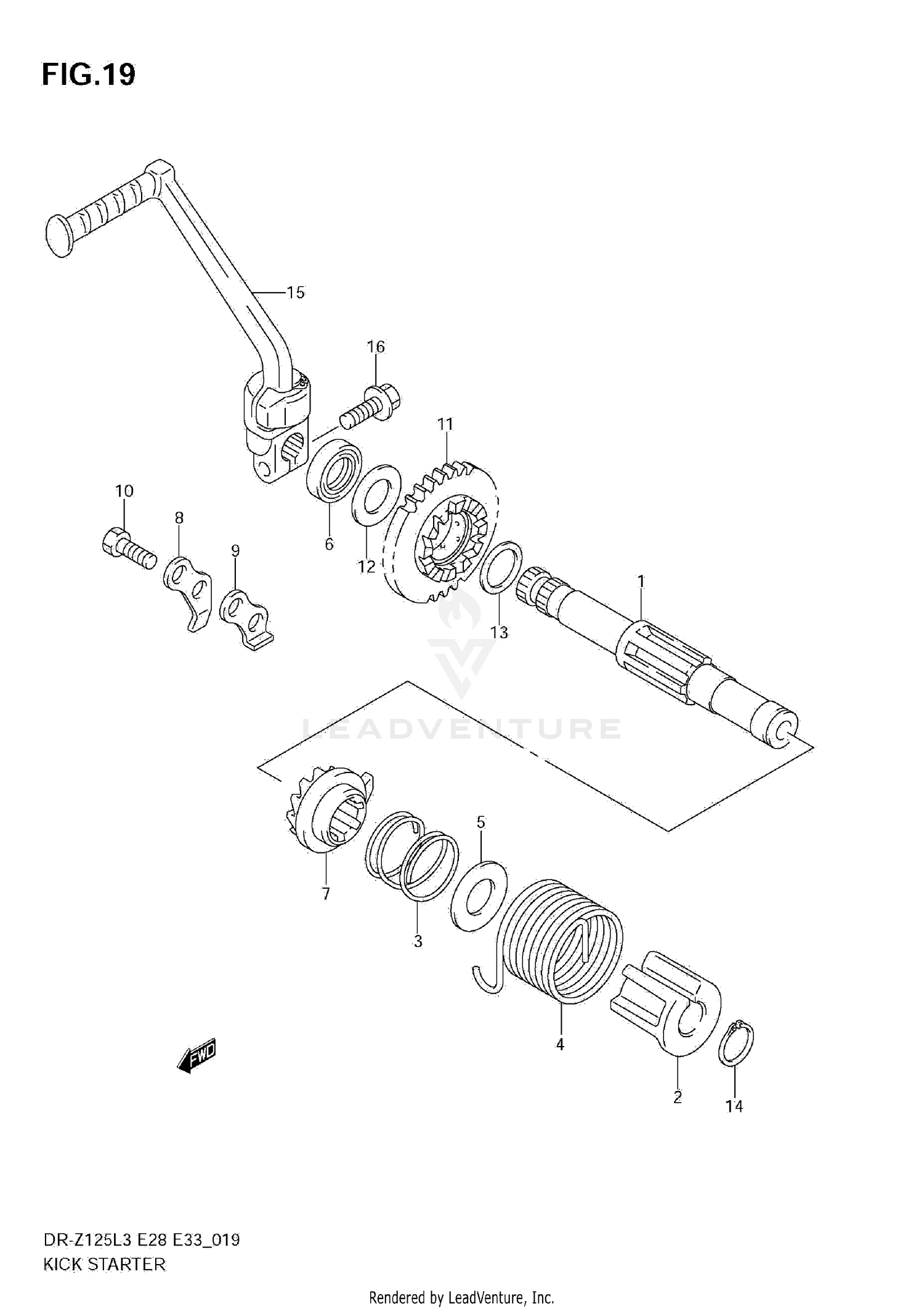

2013 Suzuki DR-Z 125 KICK STARTER OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHAFT, KICK STARTER
26211-05220
|
$88.22 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
GUIDE, KICK STARTER
26221-05200
|
$7.38 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
SPRING
09440-32006
|
$2.01 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
SPRING
09448-45003
|
$5.52 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
WASHER
08211-17341
|
$2.47 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
OIL SEAL (16X24X5)
09285-16003
|
$3.41 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
STARTER, KICK
26231-38202
|
$30.18 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
GUIDE, KICK STARTER
26232-38200
|
$6.44 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
STOPPER, KICK STARTER
26233-32400
|
$4.73 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
BOLT
09100-08240
Superseded by 09100-08299
|
$3.52 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
GEAR, KICK STARTER DRIVE
26240-05202
|
$91.77 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
WASHER (16X30X1)
09160-16003
|
$2.84 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
WASHER (20X26X1.0)
09181-20139
|
$2.55 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
CIRCLIP
08331-31179
|
$1.86 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
LEVER ASSY, KICK STARTER
26300-42A20
|
$98.00 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
BOLT
01500-0825B
|
$2.36 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
