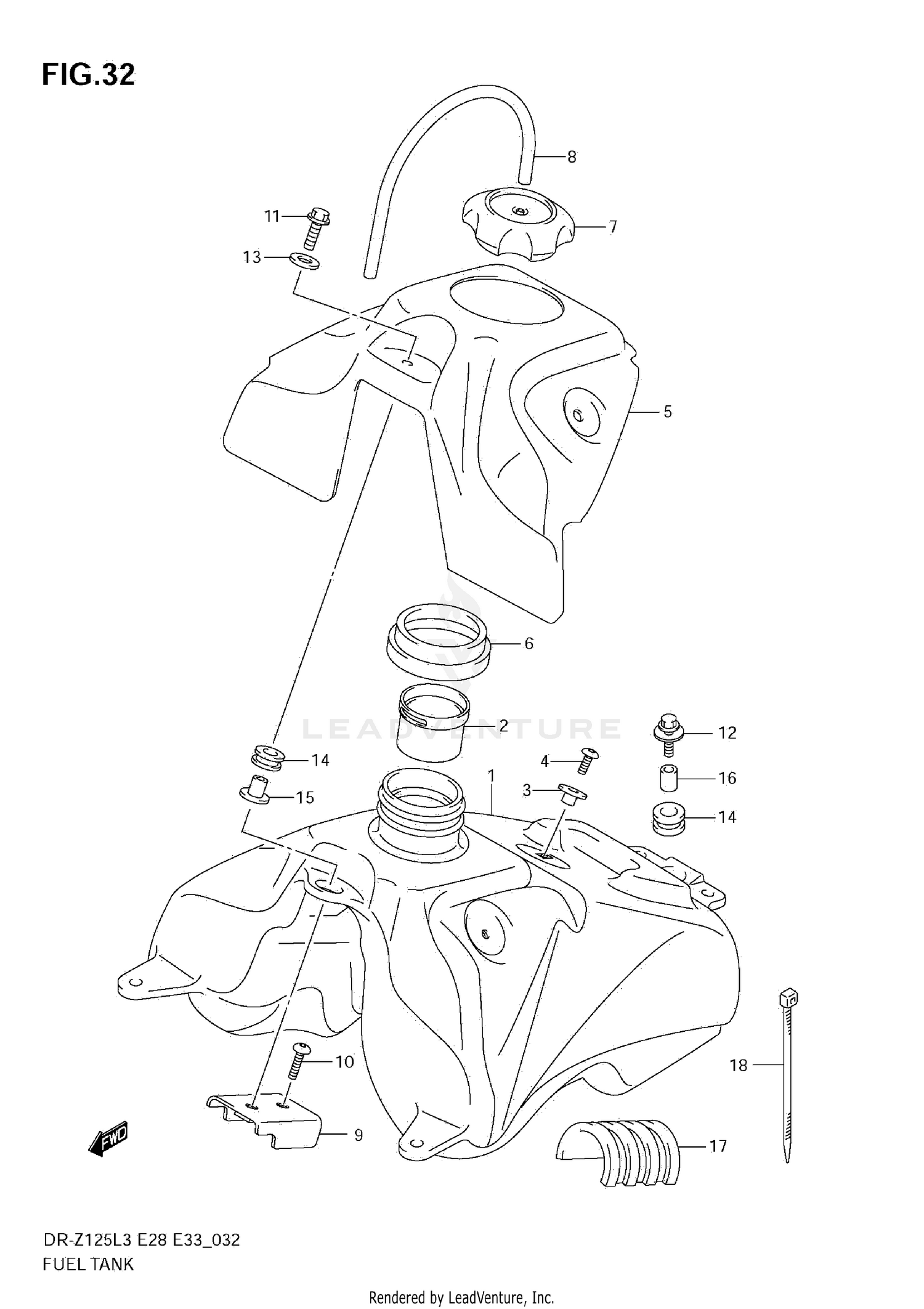

2013 Suzuki DR-Z 125 FUEL TANK OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
TANK, FUEL
44110-08GA0
|
$535.25 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
TUBE, TANK FILLER
44199-19A00
|
$6.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
HOOK, SEAT FRONT
44132-27C01
|
$8.09 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
BOLT (6X20)
09139-06148
|
$3.52 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
COVER, TANK UPPER
44291-08GA0
|
$44.25 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
RUBBER,FUEL TANK INLET
44261-14H00
Superseded by 44261-14H01
|
$9.00 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
CAP ASSY,FUEL TANK FILLER
44200-29F00
Superseded by 44200-29F01
|
$39.67 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
HOSE,5X8.2X600
09352-50823-600
Superseded by 44420-44AR0
|
$9.22 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
BRACKET, FRONT UPPER
44521-08GA0
|
$5.42 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
SCREW (6X10)
09139-06172
|
$3.02 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
BOLT, FRONT
01547-0630A
|
$2.28 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
BOLT (6X25)
09116-06186
|
$2.47 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
WASHER (6.5X24X1.6)
09160-06134
|
$1.88 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
CUSHION,FUEL TANK
44511-08G10
Superseded by 44511-08G11
|
$5.35 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
SPACER, FRONT
44512-23H00
|
$13.95 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
SPACER (6.5X10X14)
09180-06293
|
$2.41 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
CUSHION, FUEL TANK CENTER
44541-13E10
|
$23.42 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
CLAMP (L:300)
09407-30402
|
$4.07 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
