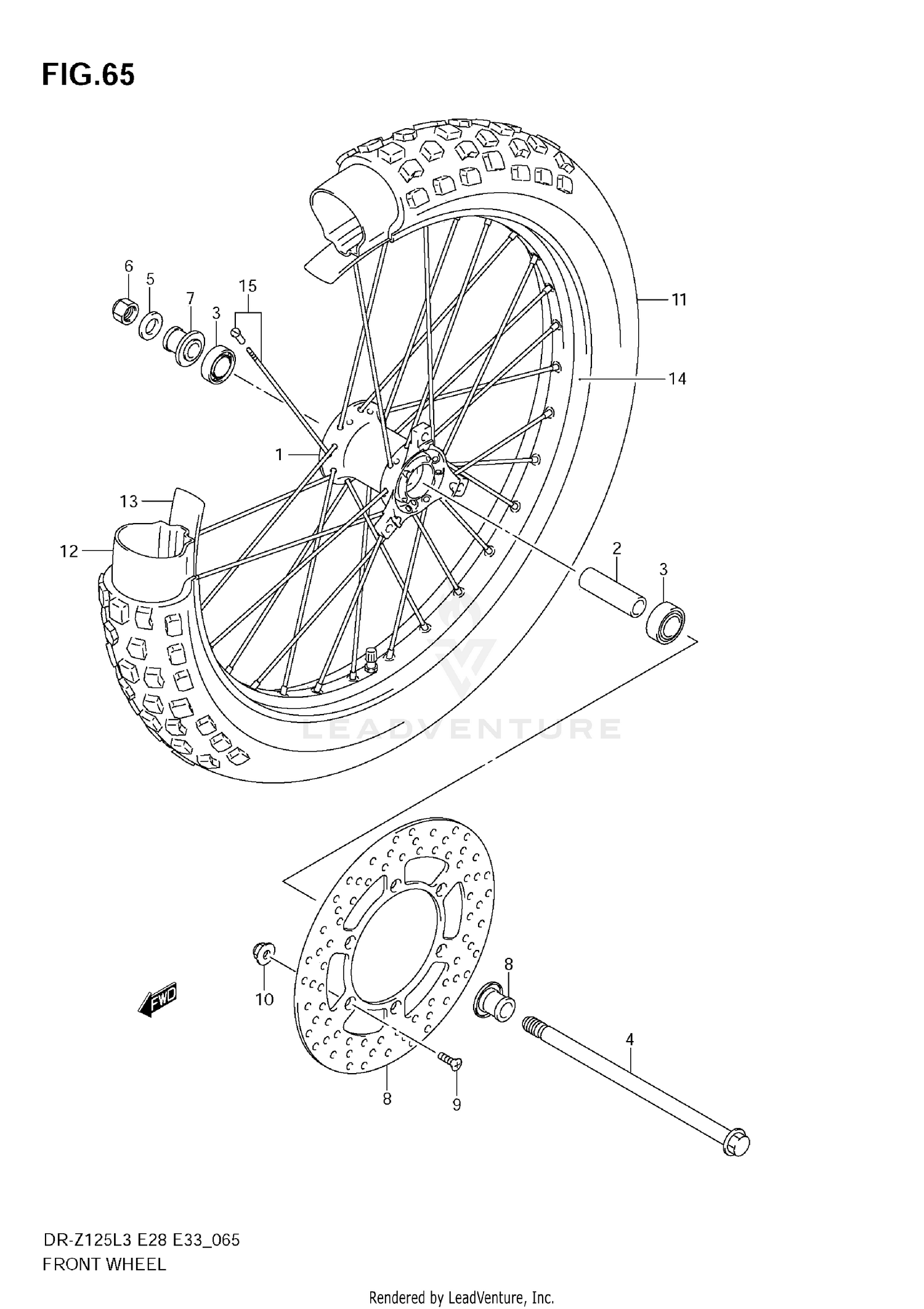

2013 Suzuki DR-Z 125 FRONT WHEEL (DR-Z125LL3 E33) OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HUB, FRONT WHEEL
54111-02B42
|
$277.10 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
SPACER, BEARING
54731-02B40
|
$11.97 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
BEARING
08133-62017
|
$18.43 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
AXLE, FRONT
54711-08G10
|
$39.74 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
WASHER (12.5X24X3.2)
09160-12082
|
$3.26 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
NUT
08319-2112A
|
$3.75 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
SPACER, FRONT AXLE
54740-02B40
|
$16.16 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
DISC, FRONT BRAKE
59221-08G00
|
$267.61 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
SCREW, DISC (6X22)
09126-06009
|
$2.29 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
NUT
08319-3106A
|
$2.00 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
TIRE, FRONT,70/100-19 42M IRC
55110-08G10
|
$71.31 | ||
|
Unavailable |
|||
|
#12
TUBE ASSY,WHEEL INNER
55200-08G10
Superseded by 55200-08G11
|
$21.87 | ||
|
Unavailable |
|||
|
#13
PROTECTOR, WHEEL INNER TUBE
55261-08G10
|
$4.39 | ||
|
Unavailable |
|||
|
#14
RIM, FRONT WHEEL (19X1.40)
55311-08G30
|
$282.10 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
SPOKE SET, FRONT WHEEL
55320-08G30
|
$59.33 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
