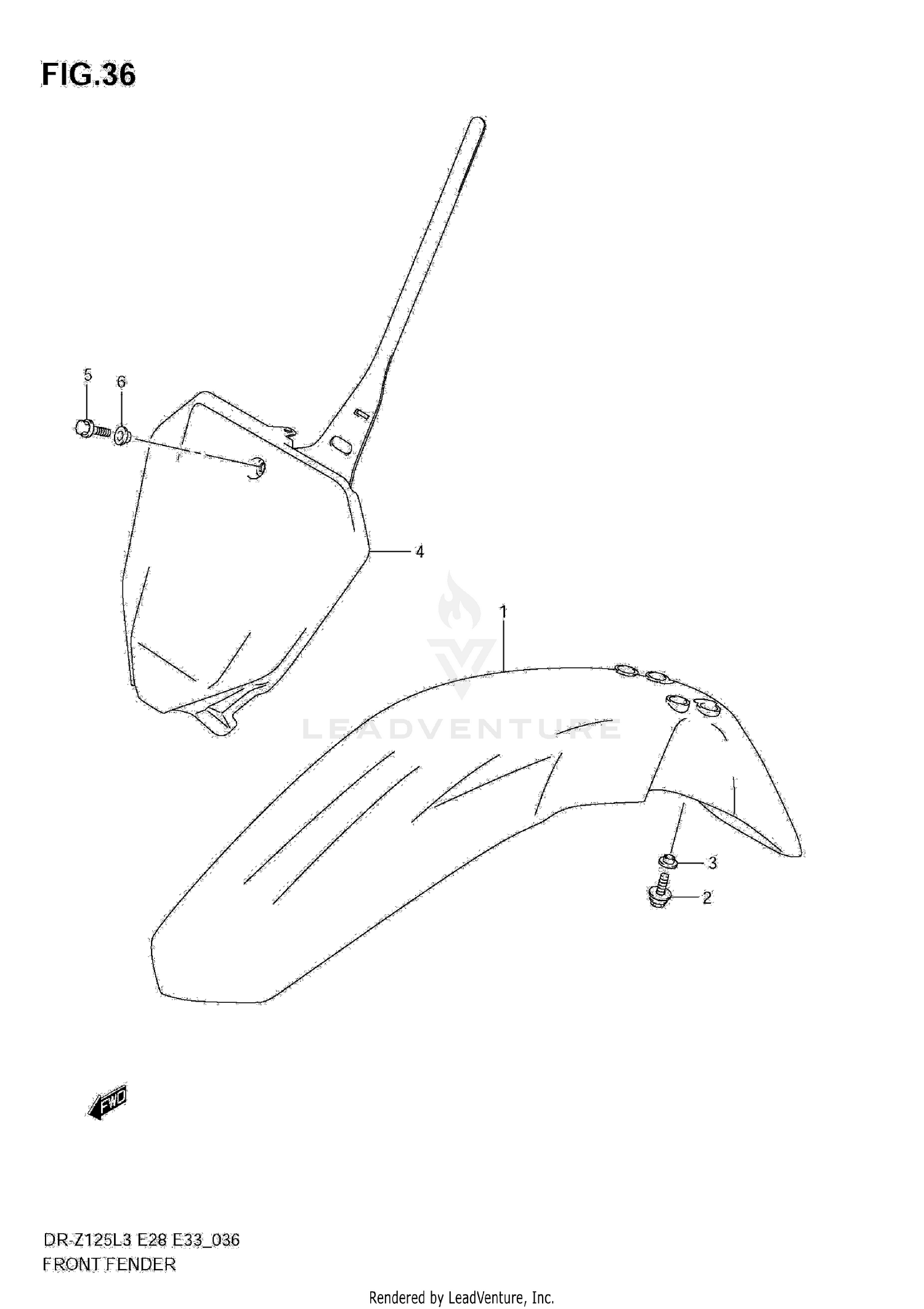

2013 Suzuki DR-Z 125 FRONT FENDER OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FENDER, FRONT (YELLOW)
53111-08G50-YU1
|
$115.63 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
BOLT (6X16)
09116-06170
|
$2.47 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
WASHER (6.1X17.0X4.8)
09169-06073
|
$3.41 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
PLATE, NUMBER FRONT (YELLOW)
94911-08G00-YU1
|
$62.66 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
BOLT
01547-0616A
|
$2.00 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
WASHER
09169-06071
|
$2.47 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
