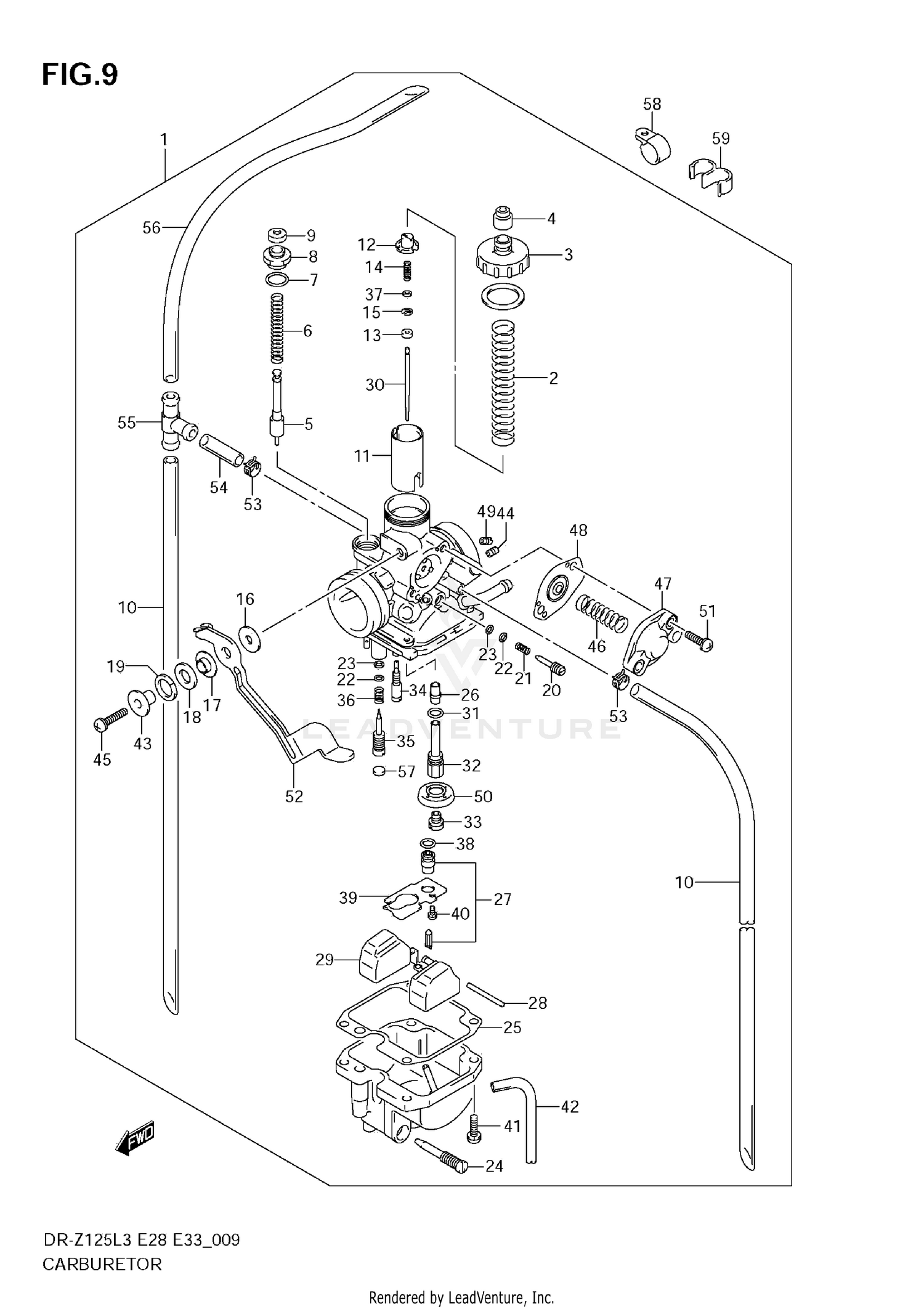

2013 Suzuki DR-Z 125 CARBURETOR OEM Parts Diagram

< Back to Assembly Types

Item	MSRP	Qty
#1 CARBURETOR ASSY 13200-08G00 Superseded by 13200-08G02	$250.15
Available: Ships in 7-12 days. Add to View Price
#2 SPRING 13573-08G00	$8.82
Available: Ships in 7-12 days. Add to View Price
#3 MIXING CAP ASSY 13261-08G00	$28.11
Available: Ships in 7-12 days. Add to View Price
#4 .CAP 13681-04010 Superseded by 13681-04011	$5.09
Available: Ships in 7-12 days. Add to View Price
#5 PLUNGER ASSY 13411-05320	$23.59
Available: Ships in 7-12 days. Add to View Price
#6 SPRING 13417-08G00	$4.87
Available: Ships in 7-12 days. Add to View Price
#7 .O RING (16) 13278-47090 Superseded by 13278-47091	$1.94
Available: Ships in 7-12 days. Add to View Price
#8 GUIDE HOLDER 13418-44080	$10.31
Available: Ships in 7-12 days. Add to View Price
#9 CAP 13682-31210	$4.49
Available: Ships in 7-12 days. Add to View Price
#10 HOSE (5X8X475) 13686-08G20	$9.25
Available: Ships in 7-12 days. Add to View Price
#11 PISTON VALVE 13551-08G00	$63.77
Available: Ships in 7-12 days. Add to View Price
#12 HOLDER 13389-08G00	$6.44
Available: Ships in 7-12 days. Add to View Price
#13 RING 13387-47010	$7.48
Available: Ships in 7-12 days. Add to View Price
#14 SPRING 13481-33E00	$3.81
Available: Ships in 7-12 days. Add to View Price
#15 E RING 13394-40D20	$4.78
Available: Ships in 7-12 days. Add to View Price
#16 WASHER 13421-05320	$2.75
Available: Ships in 7-12 days. Add to View Price
#17 RING 13432-05320	$3.75
Available: Ships in 7-12 days. Add to View Price
#18 WASHER 13589-47070	$1.75
Available: Ships in 7-12 days. Add to View Price
#19 WASHER 08321-01087	$1.81
Available: Ships in 7-12 days. Add to View Price
#20 ADJUST SCREW 13267-08G00	$11.97
Available: Ships in 7-12 days. Add to View Price
#21 SPRING 13268-08G00	$4.29
Available: Ships in 7-12 days. Add to View Price
#22 WASHER 13291-29900	$1.75
Available: Ships in 7-12 days. Add to View Price
#23 .O RING 13295-29900 Superseded by 13295-29901	$4.49
Available: Ships in 7-12 days. Add to View Price
#24 SCREW 13247-08G00	$5.33
Available: Ships in 7-12 days. Add to View Price
#25 GASKET 13251-29B00	$7.94
Available: Ships in 7-12 days. Add to View Price
#26 NEEDLE, JET 13341-08G00	$47.23
Available: Ships in 7-12 days. Add to View Price
#27 VALVE ASSY, NEEDLE 13370-08G00	$52.15
Available: Ships in 7-12 days. Add to View Price
#28 PIN 13254-01010	$3.75
Available: Ships in 7-12 days. Add to View Price
#29 FLOAT ASSY 13240-08G00	$36.51
Available: Ships in 7-12 days. Add to View Price
#30 JET, NEEDLE (5HGM74) 13383-08G00	$16.46
Available: Ships in 7-12 days. Add to View Price
#31 .O RING 13246-43010 Superseded by 13246-43011	$4.49
Available: Ships in 7-12 days. Add to View Price
#32 JET HOLDER 13385-08G00	$30.84
Available: Ships in 7-12 days. Add to View Price
#33 MAIN JET (102.5) 09491-20012	$9.97
Available: Ships in 7-12 days. Add to View Price
#34 PILOT JET (17.5) 09492-17017	$23.59
Available: Ships in 7-12 days. Add to View Price
#35 ADJUSTER 13279-08G00	$13.00
Available: Ships in 7-12 days. Add to View Price
#36 SPRING 13268-47070	$4.49
Available: Ships in 7-12 days. Add to View Price
#37 WASHER 13382-08G00	$3.95
Available: Ships in 7-12 days. Add to View Price
#38 O RING 13374-46710	$4.62
Available: Ships in 7-12 days. Add to View Price
#39 PLATE 13259-29B10	$6.60
Available: Ships in 7-12 days. Add to View Price
#40 SCREW 13601-03068 Superseded by 02112-0306B	$1.56
Available: Ships in 7-12 days. Add to View Price
#41 SCREW 13601-04148	$2.75
Available: Ships in 7-12 days. Add to View Price
#42 HOSE 13684-40A00	$9.86
Available: Ships in 7-12 days. Add to View Price
#43 RING 13424-05320	$5.39
Available: Ships in 7-12 days. Add to View Price
#44 AIR JET (85.0) 09493-85001	$11.35
Available: Ships in 7-12 days. Add to View Price
#45 SCREW 13601-44A10	$3.81
Available: Ships in 7-12 days. Add to View Price
#46 SPRING 13481-08G00	$4.01
Available: Ships in 7-12 days. Add to View Price
#47 COVER ASSY 13502-10F00	$34.77
Available: Ships in 7-12 days. Add to View Price
#48 .DIAPHRAGM ASSY 13480-10F00 Superseded by 13480-10F01	$17.38
Available: Ships in 7-12 days. Add to View Price
#49 AIR JET (145.0) 09492-29002	$15.78
Available: Ships in 7-12 days. Add to View Price
#50 HOLDER 13387-08G00	$6.21
Available: Ships in 7-12 days. Add to View Price
#51 SCREW 13601-08G00	$3.31
Available: Ships in 7-12 days. Add to View Price
#52 LEVER 13413-08G00	$23.26
Available: Ships in 7-12 days. Add to View Price
#53 CLIP 13671-08G00	$5.00
Available: Ships in 7-12 days. Add to View Price
#54 HOSE (5X8X25) 13686-08G00	$2.60
Available: Ships in 7-12 days. Add to View Price
#55 NIPPLE 13685-48B00	$12.58
Available: Ships in 7-12 days. Add to View Price
#56 HOSE (5X8X375) 13686-08G10	$7.53
Available: Ships in 7-12 days. Add to View Price
#57 PLUG 13281-05A00	$4.75
Available: Ships in 7-12 days. Add to View Price
#58 CLAMP, CARB OVERFLOW HOSE 09403-22403	$2.63
Unavailable
#59 CLIP, AIR VENT HOSE 09408-00033	$2.38
Available: Ships in 7-12 days. Add to View Price
