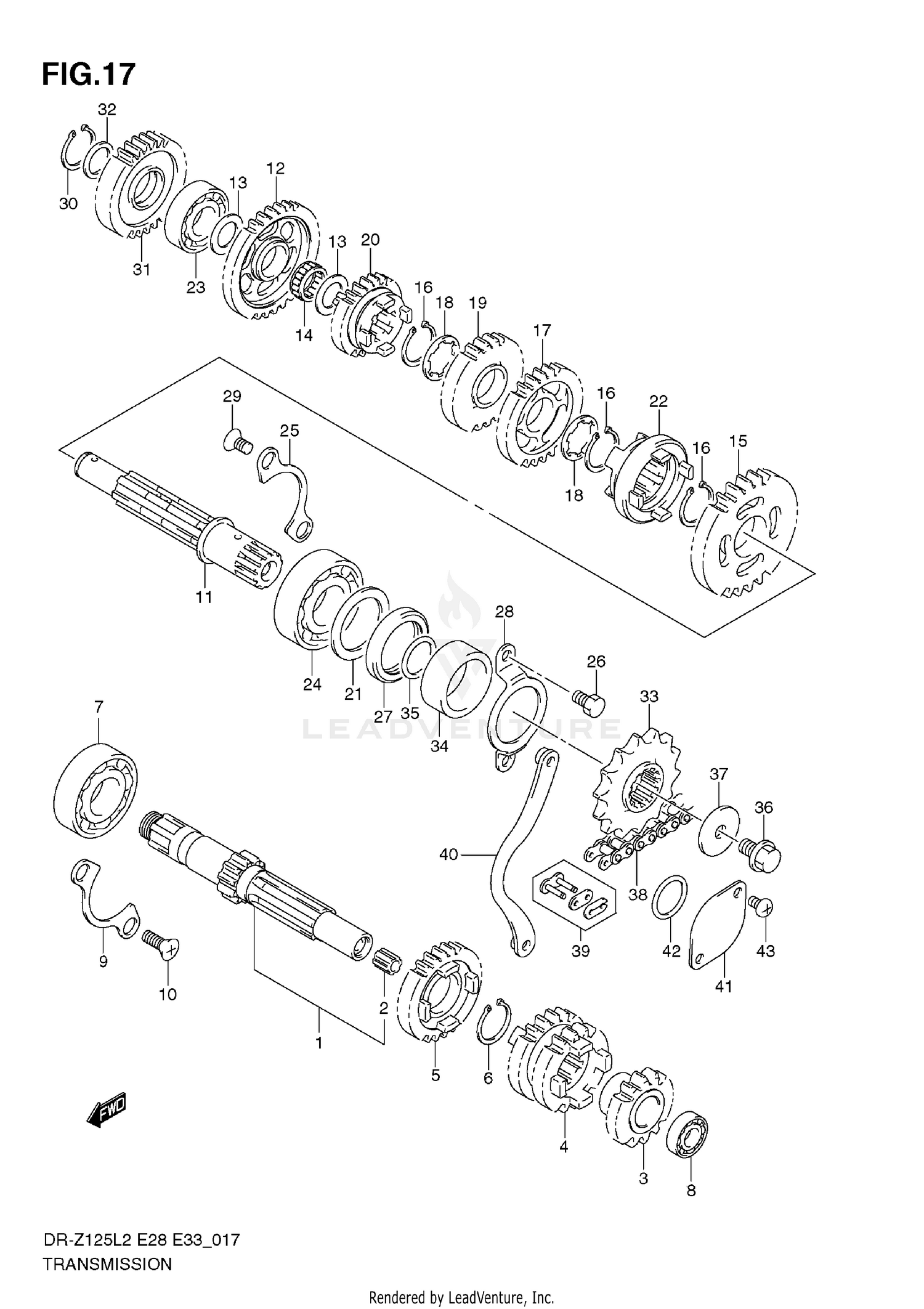

2012 Suzuki DR-Z 125 TRANSMISSION (DR-Z125L E33) OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHAFT, COUNTER (NT:11)
24120-05860
|
|||
|
Unavailable |
|||
|
#2
BUSH
24125-38201
|
$5.60 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
GEAR, 2ND DRIVE (NT:14)
24221-05301
|
$50.93 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
GEAR, 3RD/4TH DR (NT:19/21)
24231-05203
|
$109.09 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
GEAR, 5TH DRIVE (NT:26)
24251-05212
|
$73.51 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
CIRCLIP, 5TH DRIVE
09380-20009
|
$1.88 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
BEARING (20X47X14)
09262-20069
|
$23.22 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
BEARING
08123-60027
|
$19.93 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
RETAINER, CNTR SHAFT BEARING
24741-05200
|
$4.08 | ||
|
Unavailable |
|||
|
#10
SCREW (6X12)
09126-06011
|
$2.00 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
SHAFT, DRIVE
24130-44A00
|
$157.84 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
GEAR, 1ST DRIVEN (NT:33)
24311-05202
|
$80.55 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
THRUST WASHER
08211-15251
|
$1.46 | ||
|
Unavailable |
|||
|
#14
BEARING (15X19X7.8)
09263-15023
|
$16.32 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
GEAR, 2ND DRIVEN (NT:26)
24320-05202
|
$38.31 | ||
|
Unavailable |
|||
|
#16
CIRCLIP
09380-20009
|
$1.88 | ||
|
Unavailable |
|||
|
#17
GEAR, 3RD DRIVEN (NT:26)
24331-05203
|
$38.31 | ||
|
Unavailable |
|||
|
#18
WASHER,LOCK
09167-20034
|
|||
|
Unavailable |
|||
|
#19
GEAR, 4TH DRIVEN (NT:23)
24341-05203
|
$50.59 | ||
|
Unavailable |
|||
|
#20
GEAR, 5TH DRIVEN (NT:24)
24351-05211
|
$38.66 | ||
|
Unavailable |
|||
|
#21
WASHER, OIL SEALING
24359-42A00
|
$3.81 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#22
WHEEL, SLIDING DOG
24421-05300
|
$29.17 | ||
|
Unavailable |
|||
|
#23
BEARING (15X36X12)
09264-15001
|
$42.56 | ||
|
Unavailable |
|||
|
#24
BEARING (22X50X14)
09262-22018
|
$21.62 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#25
RETAINER, DRIVE SHAFT BEARING
24741-05200
|
$4.08 | ||
|
Unavailable |
|||
|
#26
BOLT
01500-0610A
|
$1.88 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#27
OIL SEAL (30X40X6)
09283-30053
|
$9.22 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#28
RETAINER, DRIVE SHAFT OIL SEAL
24751-42A10
|
$3.95 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#29
SCREW (6X12)
09126-06011
|
$2.00 | ||
|
Unavailable |
|||
|
#30
CIRCLIP
08331-3115A
|
$1.90 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#31
GEAR, KICK STARTER IDLE
26260-05201
|
$60.09 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#32
WASHER (15X20X1.0)
09181-15111
|
$2.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#33
SPROCKET, ENGINE (NT:14)
27511-44A20
|
$30.84 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#34
SPACER, ENGINE SPROCKET
27531-42A00
|
$20.21 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#35
O RING (D:2.5,ID:21)
09280-21008
|
$1.88 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#36
BOLT
01550-0812A
|
$2.28 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#37
WASHER
08211-08283
|
$2.75 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#38
CHAIN,DRIVE (DID428HD(I))
27600-46911-130
Superseded by 27600-46912-130
|
$79.12 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#39
.JOINT SET,CHAIN (DID428HD(I)
27620-46911
Superseded by 27620-46912
|
$4.87 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#40
PLATE, FRONT CHAIN
27640-08G00
|
$16.51 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#41
CAP, NEUTRAL SW
11450-08G00
|
$7.77 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#42
O RING (D:2.4,ID:21.8)
09280-22001
|
$1.40 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#43
SCREW
02112-0508A
|
$1.40 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
