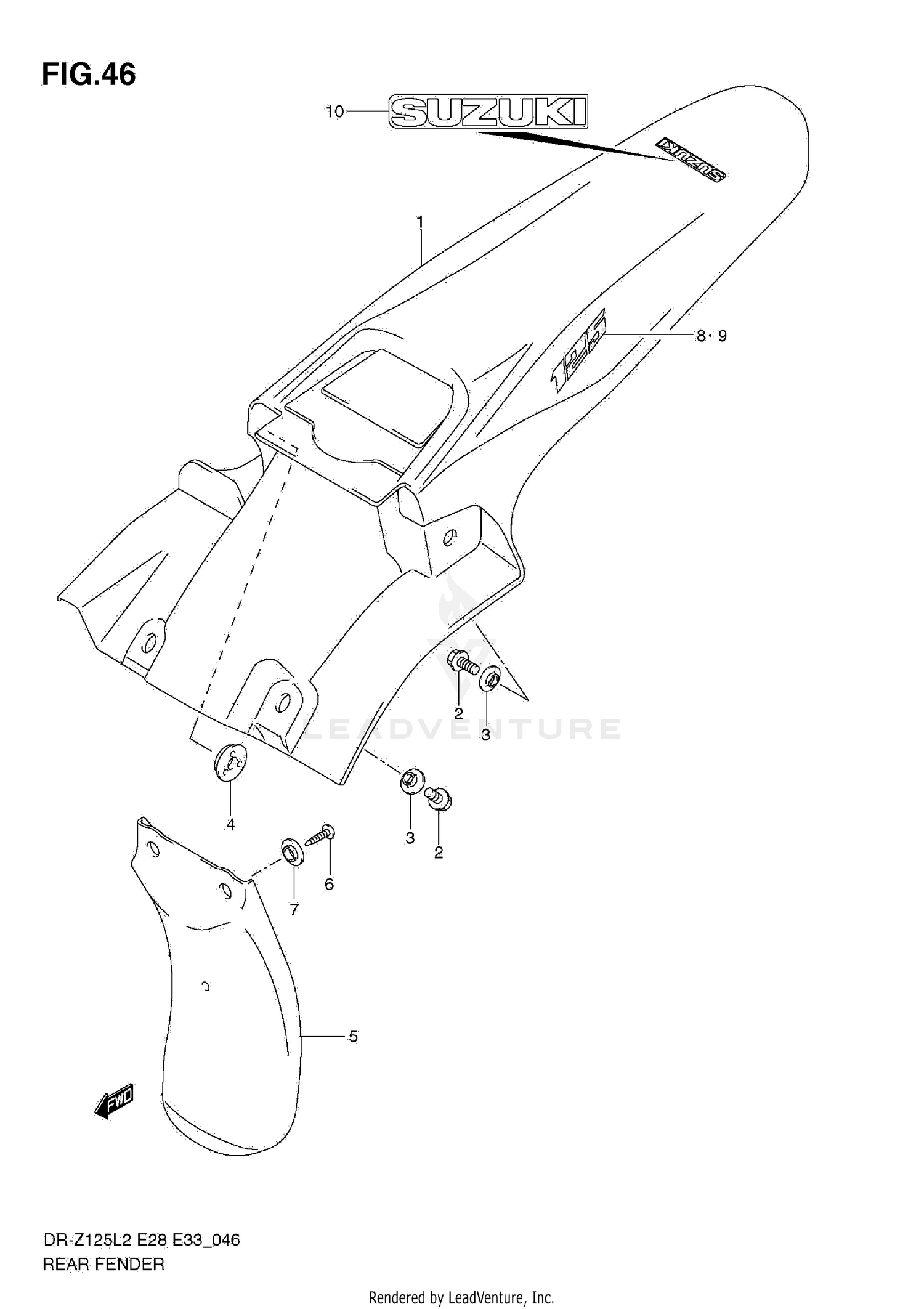

2012 Suzuki DR-Z 125 REAR FENDER (DR-Z125 E33) OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FENDER, REAR (YELLOW)
63113-08G60-YU1
|
|||
|
Unavailable |
|||
|
#2
BOLT
09103-06200
|
$2.45 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
WASHER
09169-06076
|
$3.12 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
WASHER, MUFFLER
09169-08045
|
$2.00 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
MUD GUARD, FRONT
63411-29F00
|
$20.89 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
SCREW
09132-05053
|
$2.15 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
WASHER
09169-06045
Superseded by 09169-06055
|
$1.94 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
EMBLEM, RH
68171-08G60-GY8
|
$11.91 | ||
|
Unavailable |
|||
|
#9
EMBLEM, LH
68172-08G60-GY8
|
$11.91 | ||
|
Unavailable |
|||
|
#10
EMBLEM,SUZUKI
68131-21H00-019
Superseded by 68131-21H01-019
|
$8.32 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
