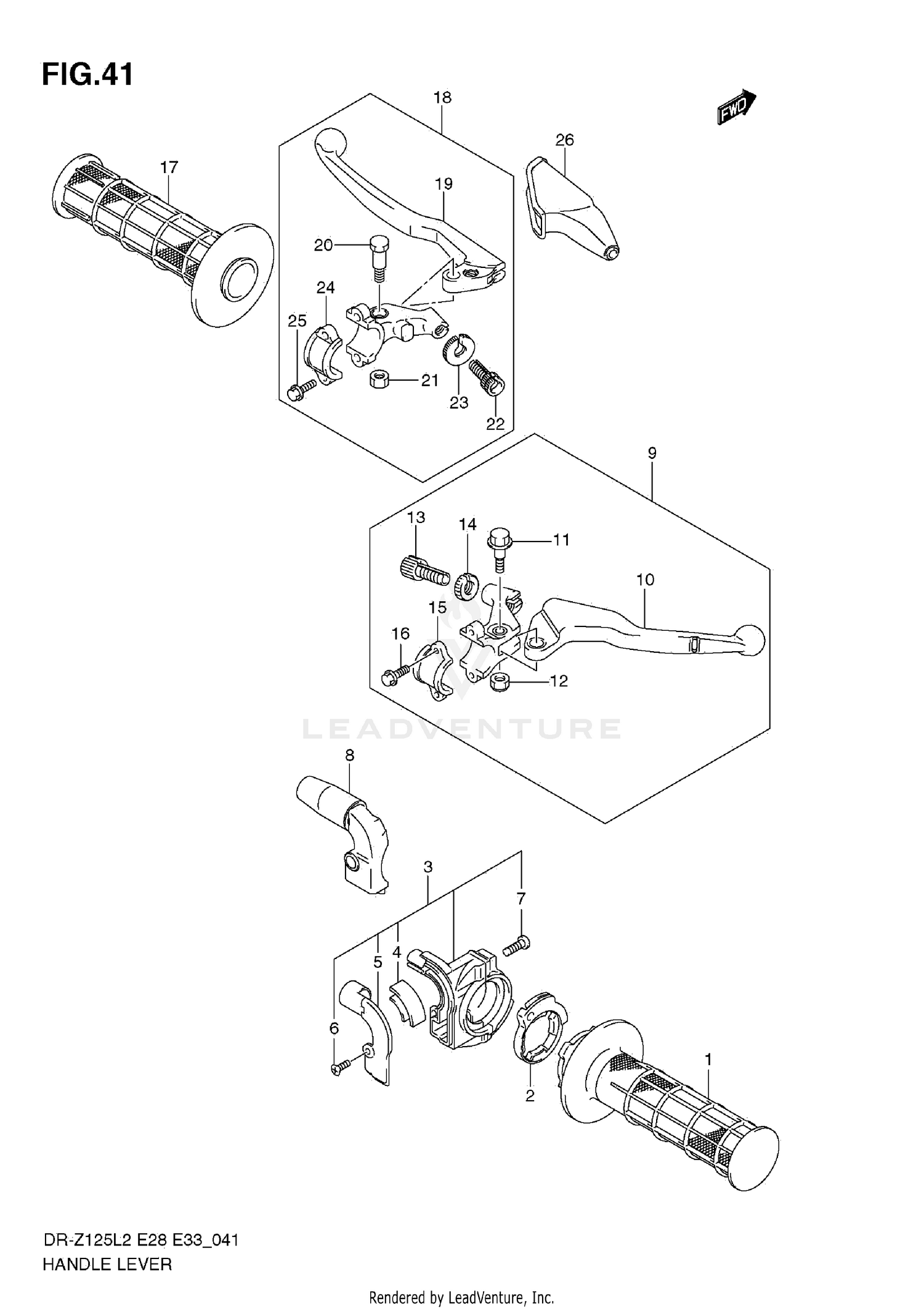

2012 Suzuki DR-Z 125 HANDLE LEVER (DR-Z125 E28) OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GRIP, THROTTLE
57110-27C00
|
$27.30 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
ROTOR, THROTTLE
57114-20430
|
$11.00 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
CASE ASSY,THROTTLE
57100-03D10
Superseded by 57100-03D11
|
$59.85 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
GUIDE
57122-03D10
|
$15.00 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
COVER
57129-03D10
|
$24.74 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
SCREW
02112-0516A
|
$1.40 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
SCREW
02132-0406B
|
$1.81 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
COVER, THROTTLE CASE
57129-08G00
|
$19.12 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
LEVER ASSY,BRAKE
57300-14320
Superseded by 57300-14321
|
$89.21 | ||
|
Unavailable |
|||
|
#10
LEVER, BRAKE
57420-14320
|
$43.41 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
BOLT
57431-14320
|
|||
|
Unavailable |
|||
|
#12
NUT
08319-2106A
|
$1.88 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
.ADJUSTER, WIRE
57441-45C00
Superseded by 57441-45C01
|
$9.38 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
.NUT,LOCK
57442-45C00
Superseded by 57442-45C01
|
$8.66 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
BRACKET, HOLDER
57512-37F00
|
$25.26 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
BOLT
01547-06207
|
$2.00 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
GRIP, LH
57211-27C00
|
$12.73 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
LEVER ASSY,CLUTCH
57500-14320
Superseded by 57500-14322
|
$56.89 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
LEVER, CLUTCH
57621-13E00
|
$14.21 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
BOLT
57431-21D11
|
$10.11 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
NUT
08319-2106A
|
$1.88 | ||
|
Unavailable |
|||
|
#22
.ADJUSTER,WIRE
57441-29F00
Superseded by 57441-29F01
|
$9.91 | ||
|
Unavailable |
|||
|
#23
.NUT,LOCK
57442-45C00
Superseded by 57442-45C01
|
$8.66 | ||
|
Unavailable |
|||
|
#24
BRACKET
57512-28C00
|
$22.45 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#25
BOLT
57513-29F10
|
$5.46 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#26
COVER,CLUTCH CABLE DUST
57341-29F01
Superseded by 57341-29F02
|
$8.80 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
