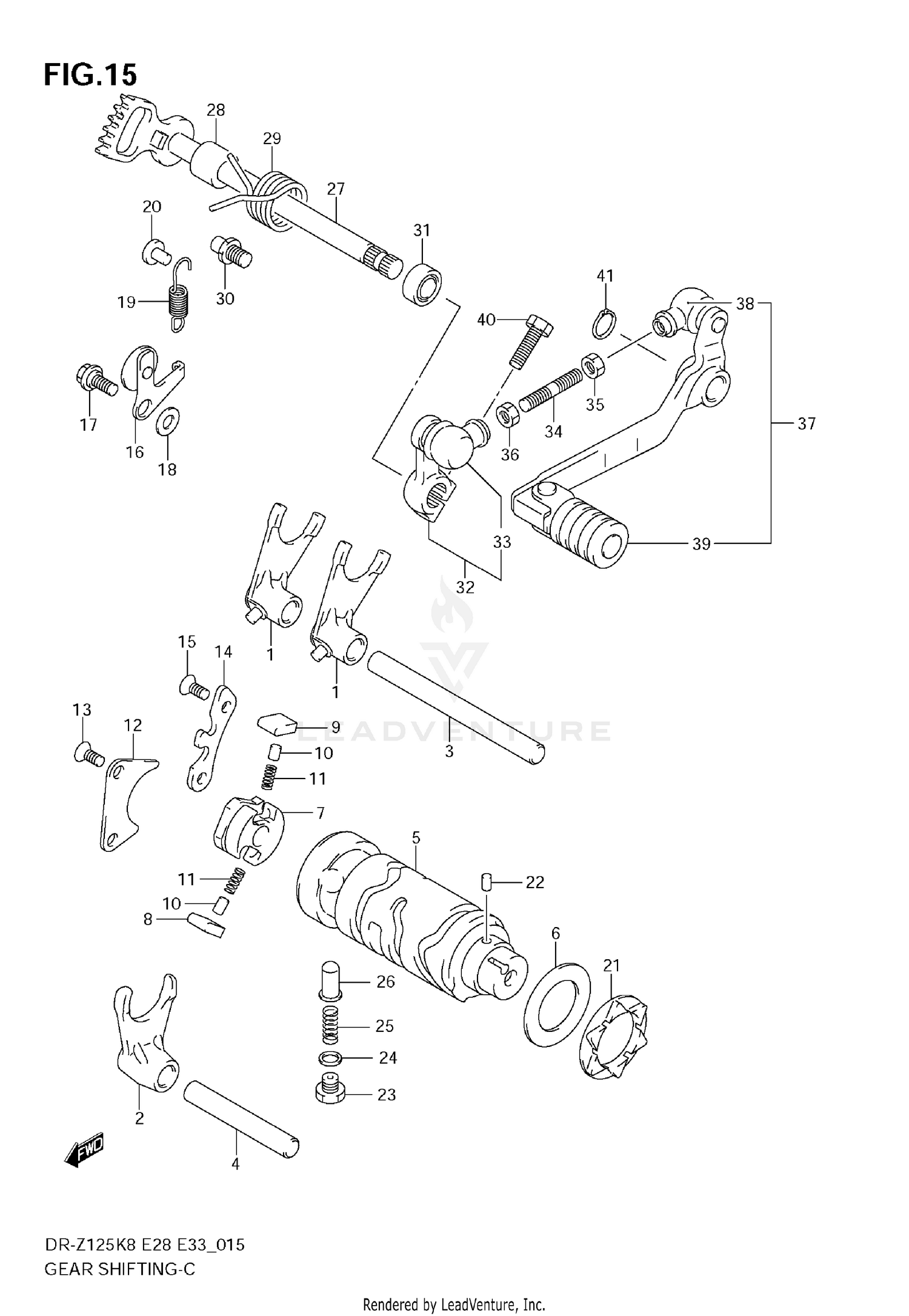

2009 Suzuki DR-Z 125 GEAR SHIFTING OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FORK, GEAR SHIFT NO.1
25221-08300
|
$53.05 | ||
|
Unavailable |
|||
|
#2
FORK, GEAR SHIFT NO.3
25231-05201
|
$53.05 | ||
|
Unavailable |
|||
|
#3
SHAFT, GEAR SHIFT FORK (L:109)
25411-16701
|
$15.78 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
SHAFT, GEAR SHIFT FORK (L:60)
25421-35410
|
$20.55 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
CAM, GEAR SHIFT
25310-08G00
|
$70.08 | ||
|
Unavailable |
|||
|
#6
THRUST WASHER (25X40X1.0)
09181-25251
|
$3.25 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
GEAR, GEAR SHIFT CAM DRIVEN
25322-31310
|
$23.59 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
POLE, GEAR SHIFT NO.1
25323-34201
|
$7.48 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
POLE, GEAR SHIFT NO.2
25324-34201
|
$7.48 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
ROLLER (5X8)
09261-05003
|
$1.40 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
SPRING
09440-04003
|
$1.40 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
LIFTER, GEAR SHIFT POLE
25331-30001
|
$2.87 | ||
|
Unavailable |
|||
|
#13
SCREW (6X12)
09126-06011
|
$2.00 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
GUIDE, GEAR SHIFT CAM
25341-05200
|
$5.57 | ||
|
Unavailable |
|||
|
#15
SCREW (6X12)
09126-06011
|
$2.00 | ||
|
Unavailable |
|||
|
#16
STOPPER, GEAR SHIFT CAM
25350-44A00
|
$13.50 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
BOLT (6X14.6)
09111-06054
|
$3.12 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
WASHER
08211-06141
|
$1.56 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
SPRING
09443-08044
|
$1.67 | ||
|
Unavailable |
|||
|
#20
HOOK
09223-04001
|
$1.42 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
PLATE, GEAR SHIFT CAM STOPPER
25381-45400
|
$17.91 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#22
PIN
04221-04069
|
$1.78 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#23
PLUG
09247-14026
|
$3.75 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#24
GASKET (13.8X18.8X0.4)
09168-14002
|
$2.25 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#25
SPRING
09440-11014
|
$1.51 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#26
STOPPER, GEAR SHIFT CAM
25351-30010
|
$10.46 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#27
SHAFT, GEAR SHIFTING
25510-05201
|
$79.01 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#28
SPACER (12X20X15.3)
09180-12068
|
$3.12 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#29
SPRING
09444-26001
|
$4.96 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#30
STOPPER, GEAR SHIFT ARM
25671-01011
|
$4.62 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#31
OIL SEAL (12X22X9)
09285-12006
|
$6.28 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#32
ARM,GEAR SHIFT LINK
25520-08G00
Superseded by 25520-08G01
|
$39.51 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#33
.COVER,DUST
25526-47000
Superseded by 25526-47001
|
$5.62 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#34
ROD, GEAR SHIFT LINK
25525-08G00
|
$6.24 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#35
NUT
09140-06025
|
$1.75 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#36
.NUT
08310-00067
|
$1.81 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#37
LEVER ASSY,GEAR SHIFT
25600-08G00
Superseded by 25600-08G01
|
$55.69 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#38
.COVER,DUST
25526-47000
Superseded by 25526-47001
|
$5.62 | ||
|
Unavailable |
|||
|
#39
RUBBER, GEAR SHIFT PEDAL
25652-03D00
|
$5.22 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#40
BOLT
01500-0620A
|
$1.75 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#41
CIRCLIP, GEAR SHIFT
08331-3112A
|
$1.75 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
