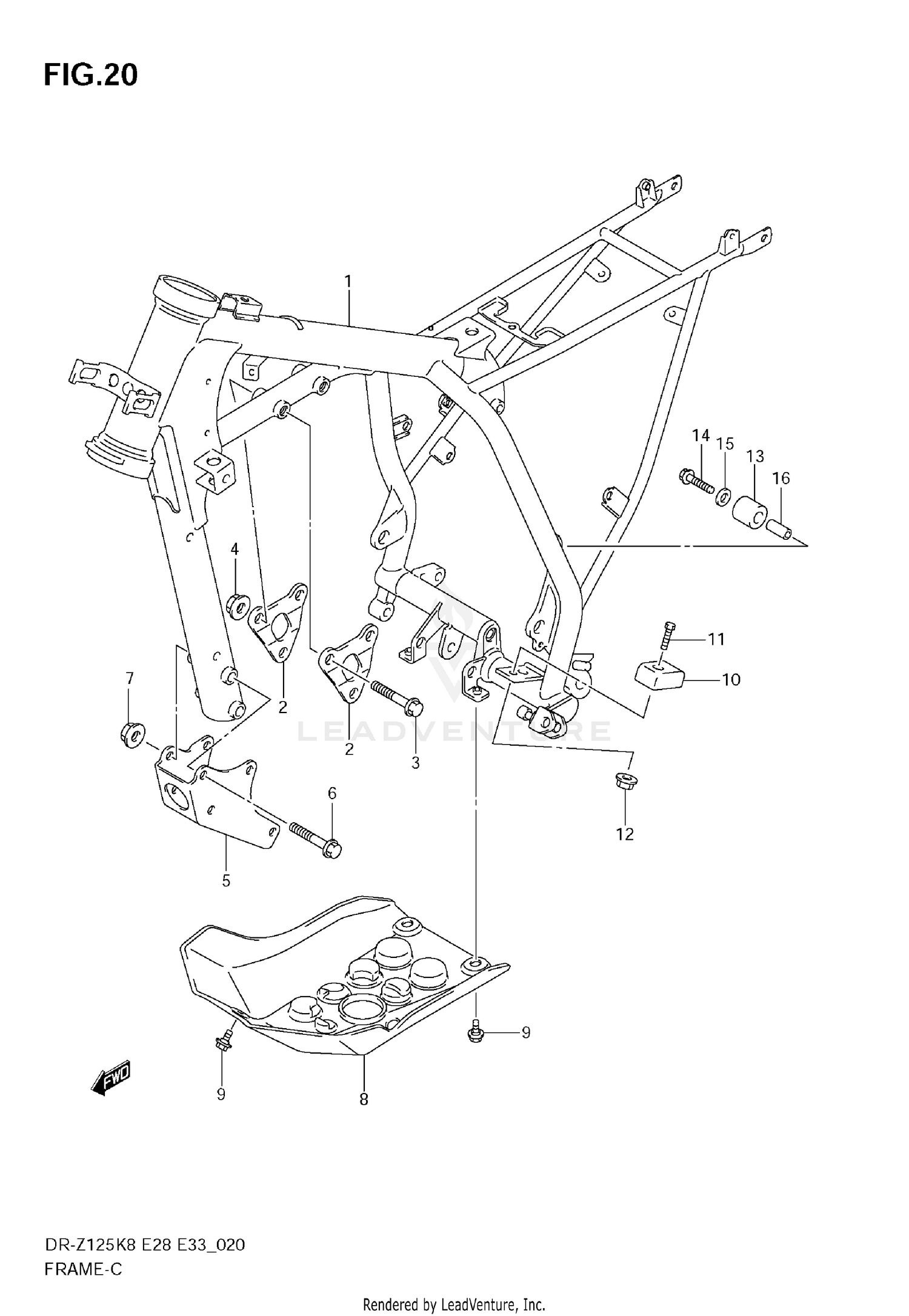

2008 Suzuki DR-Z 125 FRAME OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRAME (GRAY)
41100-08G10-YU8
|
$1,810.15 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
PLATE, MOUNT UPPER
41991-08G00
|
$11.22 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
BOLT, UPPER
09103-08332
|
$3.87 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
NUT
08319-3108A
|
$2.28 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
PLATE, MOUNT LOWER (GRAY)
41992-08G00-YU8
|
$46.88 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
BOLT, LOWER
09103-08354
|
$3.00 | ||
|
Unavailable |
|||
|
#7
NUT
08319-3108A
|
$2.28 | ||
|
Unavailable |
|||
|
#8
PROTECTOR, ENGINE
42511-08G00
|
$45.85 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
BOLT (6X12)
63161-43E00
Superseded by 09111-06107
|
$2.47 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
GUIDE, CHAIN CONTROL
43912-42A00
|
$24.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
BOLT, LOWER
09128-06088
|
$1.92 | ||
|
Unavailable |
|||
|
#12
NUT
08319-3106B
|
$2.41 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
ROLLER, CHAIN UPPER
43911-13E10
|
$23.37 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
BOLT
09103-08178
|
$4.64 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
WASHER
08211-08201
|
$2.00 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
SPACER
09180-08215
|
$4.15 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
