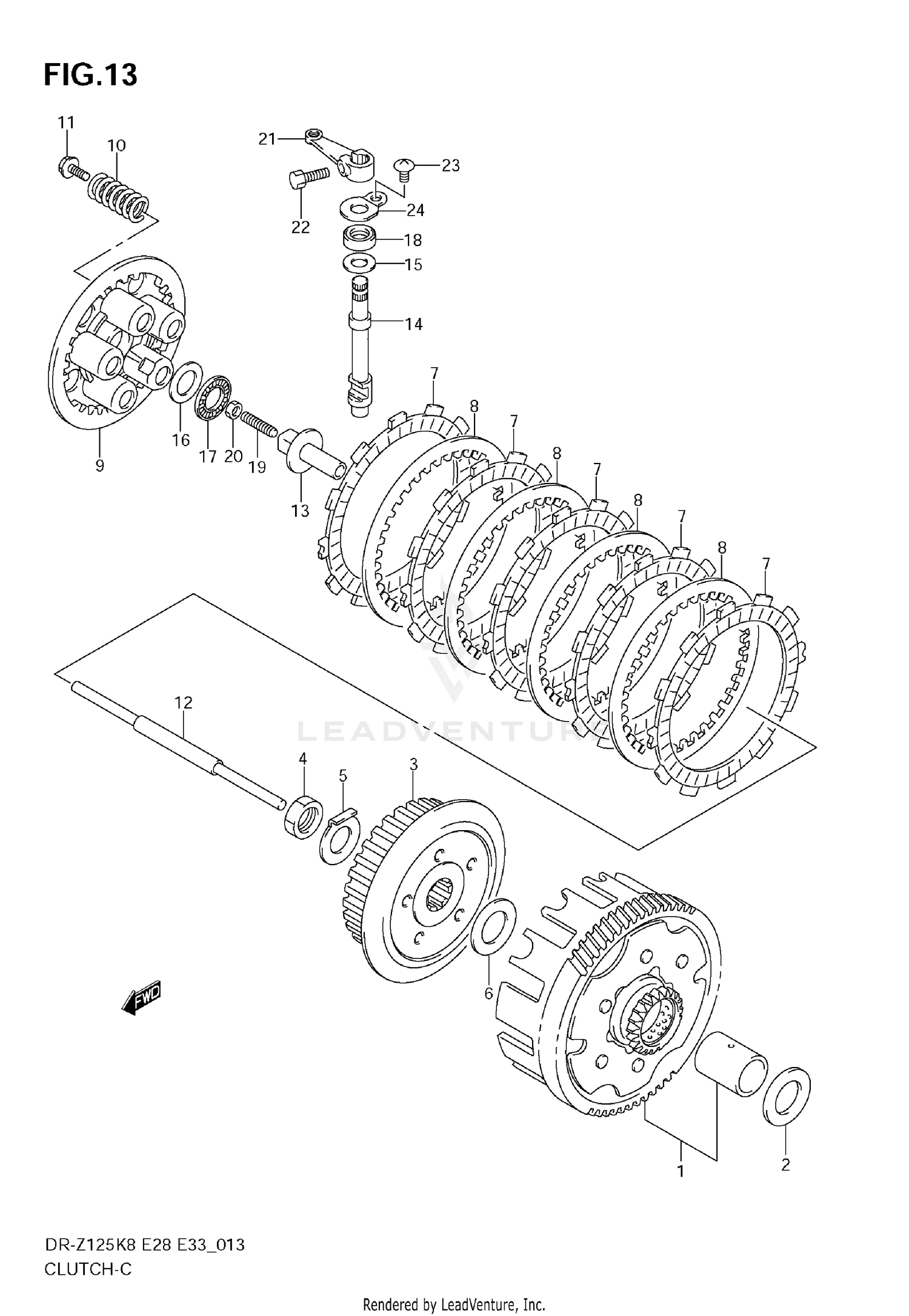

2008 Suzuki DR-Z 125 CLUTCH OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GEAR ASSY, PRIMARY (NT:59/20)
21200-44812
|
$294.55 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
THRUST WASHER
08211-20353
|
$2.64 | ||
|
Unavailable |
|||
|
#3
HUB, CLUTCH SLEEVE
21411-05200
Superseded by 21411-05230
|
$68.26 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
NUT
09140-16001
Superseded by 09140-16005
|
$3.15 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
WASHER
09169-16003
|
$2.07 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
THRUST WASHER
08211-20352
|
$2.59 | ||
|
Unavailable |
|||
|
#7
PLATE, CLUTCH DRIVE
21441-25C01
|
$21.40 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
PLATE, CLUTCH DRIVEN
21451-19A00
|
$7.86 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
DISC, CLUTCH PRESSURE
21462-14103
Superseded by 21462-14130
|
$21.77 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
SPRING
09440-15021
|
$3.87 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
BOLT (5X16)
09116-05020
|
$2.00 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
ROD, CLUTCH PUSH
23110-05203
|
$15.78 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
PIECE, CLUTCH PUSH
23121-38201
|
$23.42 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
CAM SHAFT, CLUTCH RELEASE
23122-05200
|
$43.88 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
THRUST WASHER (10X20X1.0)
09181-10195
|
$1.94 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
WASHER (15.5X28X1.0)
09160-15045
|
$3.87 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
BEARING (15X28X2)
09263-15003
|
$8.26 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
OIL SEAL (10X20X6)
09282-10012
|
$7.94 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
SCREW (6X25)
09134-06010
|
$3.09 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
NUT (6X3.6)
09140-06023
|
$2.01 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
ARM, CLUTCH RELEASE
23271-46010
|
$25.37 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#22
BOLT
01500-0616A
|
$1.75 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#23
SCREW
02142-0610A
|
$1.34 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#24
RETAINER, OIL SEAL
23117-05200
|
$4.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
