2004 Suzuki DR-Z 125 REAR SWINGING ARM OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1

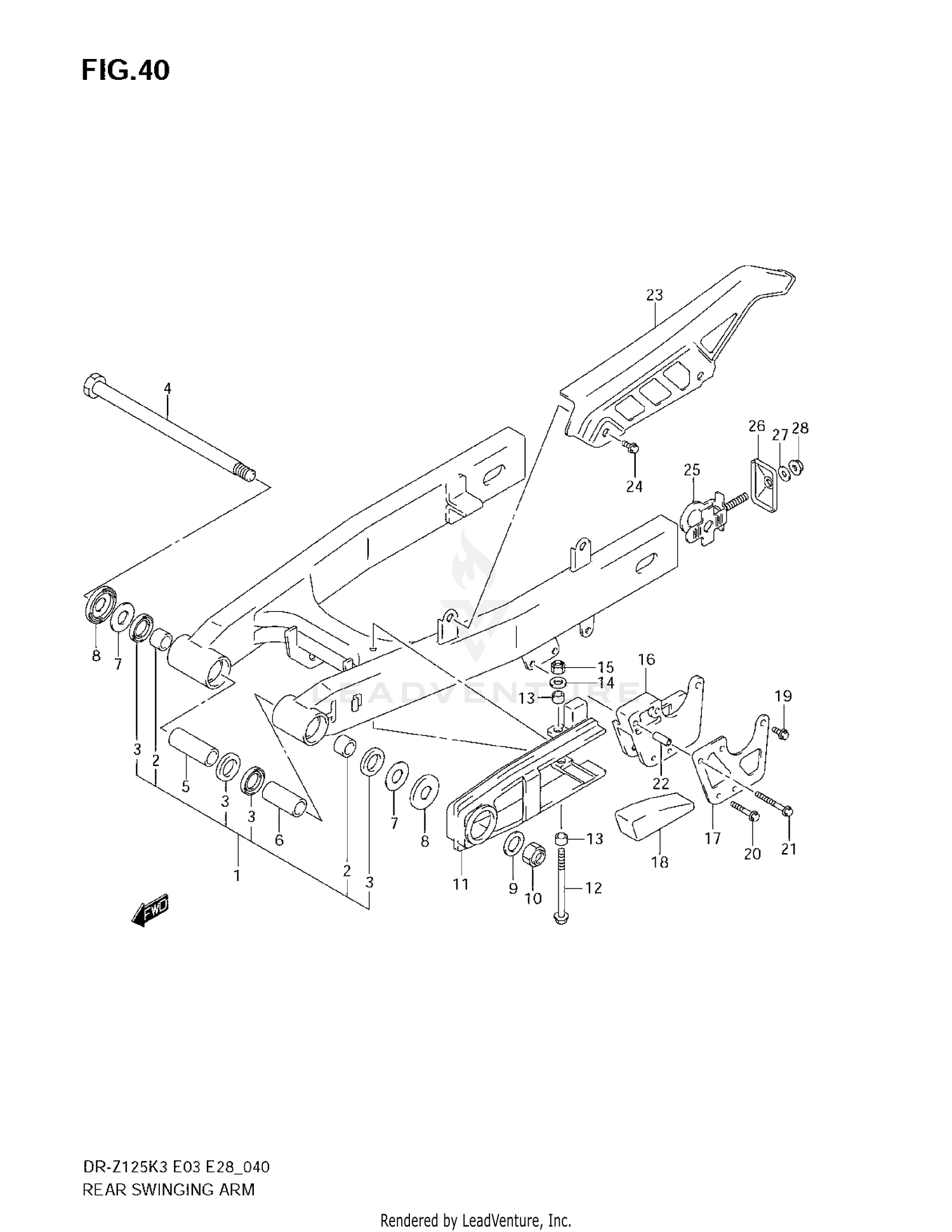

SWINGING ARM ASSY, REAR
61000-08G00-13L
|
$444.58 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#1
SWINGING ARM ASSY, REAR
61000-08G10-13L
|
$467.26 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
BUSHING
61261-13700
|
$16.77 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
OIL SEAL
09283-20031
|
$5.22 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
SHAFT, PIVOT
61211-44A11
|
$32.51 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
SPACER, PIVOT, R
61251-08G00
|
$23.20 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
SPACER, PIVOT L
61251-42A00
|
$20.21 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
THRUST WASHER
08211-14321
|
$3.25 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
SEAL,DUST
61262-40400
Superseded by 61262-40401
|
$6.14 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
WASHER
09160-14057
|
$2.65 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
NUT
09159-14019
|
$11.58 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
BUFFER, CHAIN TOUCH DEFENSE
61273-08G00
|
$32.48 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
BOLT
01560-06653
Superseded by 01560-0665B
|
$3.13 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
SPACER
09180-06257
|
$2.38 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
.WASHER
08322-01063
Superseded by 08322-0106B
|
$2.21 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
.NUT
08319-21063
Superseded by 08319-2106B
|
$2.28 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
GUIDE, CHAIN
61343-02B40
|
$36.51 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
PLATE, GUIDE CHAIN OUTER
61342-02B40
|
$29.71 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
DEFENSE,CHAIN GUIDE
61348-08G00
Superseded by 61348-08G01
|
$13.52 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
BOLT, CHAIN GUIDE
09103-06234
|
$2.00 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
BOLT
09103-06241
|
$2.71 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
BOLT
09103-06251
|
$2.00 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#22
SPACER, CHAIN GUIDE DEFENSE
09180-06333
|
$2.38 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#23
CASE, CHAIN
61311-01A03
|
$65.32 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#24
SCREW, CHAIN CASE
09116-06096
|
$2.21 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#25
ADJUSTER, CHAIN
61410-08G00
|
$27.12 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#26
PLATE, CHAIN ADJUSTER GUIDE
61421-38200
|
$5.39 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#27
WASHER
09160-12085
|
$2.47 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#28
NUT
08319-31087
|
$2.28 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
