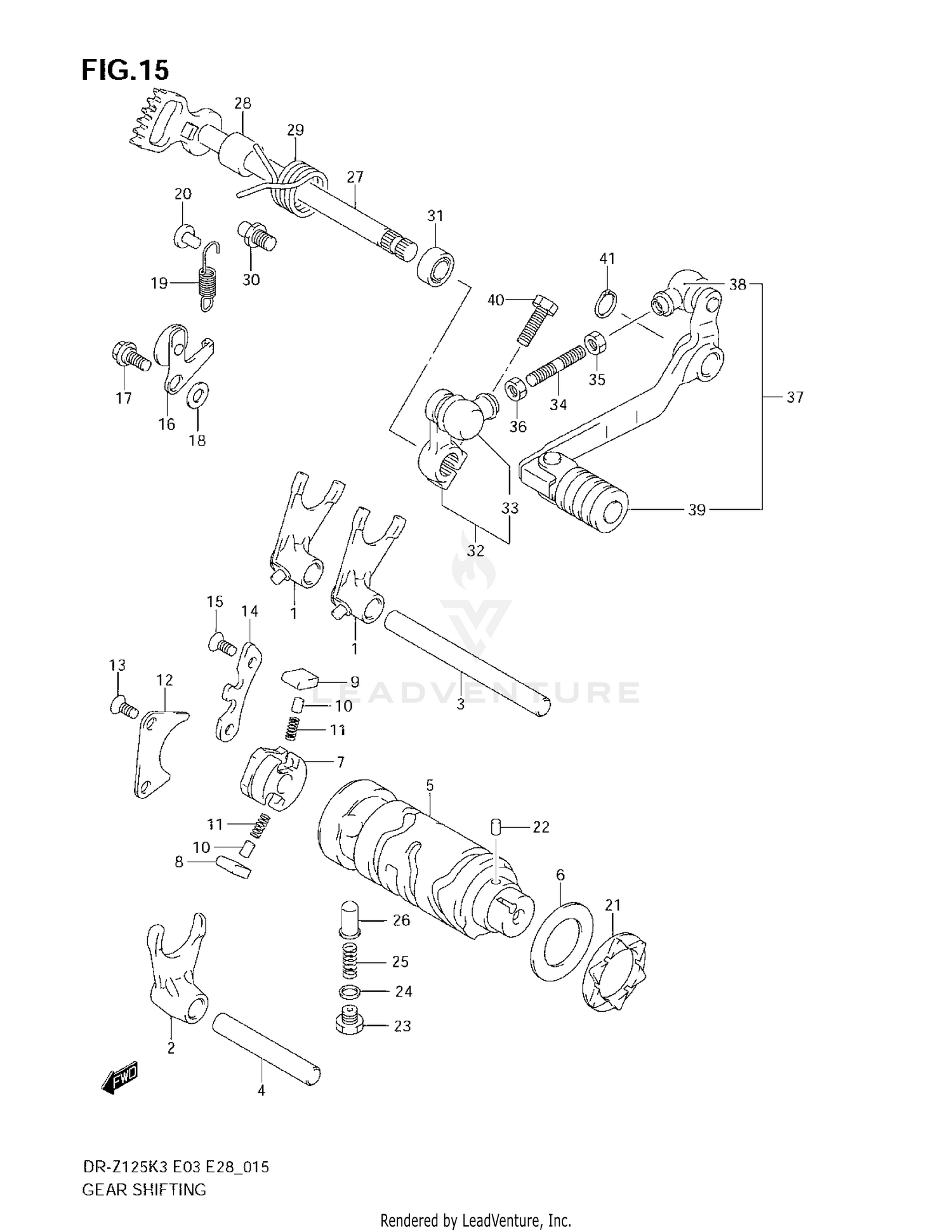

2004 Suzuki DR-Z 125 GEAR SHIFTING OEM Parts Diagram

< Back to Assembly Types

Item	MSRP	Qty
#1 FORK, GEAR SHIFT NO.2 25221-08300	$53.05
Unavailable
#2 FORK, GEAR SHIFT NO.3 25231-05201	$53.05
Unavailable
#3 SHAFT, GEAR SHIFT FORK (L:109) 25411-16701	$15.78
Available: Ships in 7-12 days. Add to View Price
#4 SHAFT, GEAR SHIFT FORK (L:60) 25421-35410	$20.55
Available: Ships in 7-12 days. Add to View Price
#5 CAM, GEAR SHIFT 25310-08G00	$70.08
Unavailable
#6 THRUST WASHER (25X40X1.0) 09181-25251	$3.25
Available: Ships in 7-12 days. Add to View Price
#7 GEAR, GEAR SHIFT CAM DRIVEN 25322-31310	$23.59
Available: Ships in 7-12 days. Add to View Price
#8 POLE, GEAR SHIFT NO.1 25323-34201	$7.48
Available: Ships in 7-12 days. Add to View Price
#9 POLE, GEAR SHIFT NO.2 25324-34201	$7.48
Available: Ships in 7-12 days. Add to View Price
#10 ROLLER (5X8) 09261-05003	$1.40
Available: Ships in 7-12 days. Add to View Price
#11 SPRING 09440-04003	$1.40
Available: Ships in 7-12 days. Add to View Price
#12 LIFTER, GEAR SHIFT POLE 25331-30001	$2.87
Unavailable
#13 SCREW (6X12) 09126-06011	$2.00
Available: Ships in 7-12 days. Add to View Price
#14 GUIDE, GEAR SHIFT CAM 25341-05200	$5.57
Unavailable
#15 SCREW (6X12) 09126-06011	$2.00
Unavailable
#16 STOPPER, GEAR SHIFT CAM 25350-44A00	$13.50
Available: Ships in 7-12 days. Add to View Price
#17 BOLT (6X14.6) 09111-06054	$3.12
Available: Ships in 7-12 days. Add to View Price
#18 WASHER 08211-06141	$1.56
Available: Ships in 7-12 days. Add to View Price
#19 SPRING 09443-08044	$1.67
Unavailable
#20 HOOK 09223-04001	$1.42
Available: Ships in 7-12 days. Add to View Price
#21 PLATE, GEAR SHIFT CAM STOPPER 25381-45400	$17.91
Available: Ships in 7-12 days. Add to View Price
#22 PIN 04221-04069	$1.78
Available: Ships in 7-12 days. Add to View Price
#23 PLUG 09247-14012 Superseded by 09247-14026	$3.75
Available: Ships in 7-12 days. Add to View Price
#24 GASKET (13.8X18.8X0.4) 09168-14002	$2.25
Available: Ships in 7-12 days. Add to View Price
#25 SPRING 09440-11014	$1.51
Available: Ships in 7-12 days. Add to View Price
#26 STOPPER, GEAR SHIFT CAM 25351-30010	$10.46
Available: Ships in 7-12 days. Add to View Price
#27 SHAFT, GEAR SHIFTING 25510-05201	$79.01
Available: Ships in 7-12 days. Add to View Price
#28 SPACER (12X20X15.3) 09180-12068	$3.12
Available: Ships in 7-12 days. Add to View Price
#29 SPRING 09444-26001	$4.96
Available: Ships in 7-12 days. Add to View Price
#30 STOPPER, GEAR SHIFT ARM 25671-01011	$4.62
Available: Ships in 7-12 days. Add to View Price
#31 OIL SEAL (12X22X9) 09285-12002 Superseded by 09285-12006	$6.28
Available: Ships in 7-12 days. Add to View Price
#32 ARM,GEAR SHIFT LINK 25520-08G00 Superseded by 25520-08G01	$39.51
Available: Ships in 7-12 days. Add to View Price
#33 .COVER,DUST 25526-47000 Superseded by 25526-47001	$5.62
Available: Ships in 7-12 days. Add to View Price
#34 ROD, GEAR SHIFT LINK 25525-08G00	$6.24
Available: Ships in 7-12 days. Add to View Price
#35 NUT 09140-06025	$1.75
Available: Ships in 7-12 days. Add to View Price
#36 .NUT 08310-00067	$1.81
Available: Ships in 7-12 days. Add to View Price
#37 LEVER ASSY,GEAR SHIFT 25600-08G00 Superseded by 25600-08G01	$55.69
Available: Ships in 7-12 days. Add to View Price
#38 .COVER,DUST 25526-47000 Superseded by 25526-47001	$5.62
Unavailable
#39 RUBBER, GEAR SHIFT PEDAL 25652-03D00	$5.22
Available: Ships in 7-12 days. Add to View Price
#40 BOLT, GEAR SHIFT LINK 01500-06203 Superseded by 01500-0620A	$1.75
Available: Ships in 7-12 days. Add to View Price
#41 CIRCLIP 08331-31126 Superseded by 08331-3112A	$1.75
Available: Ships in 7-12 days. Add to View Price
