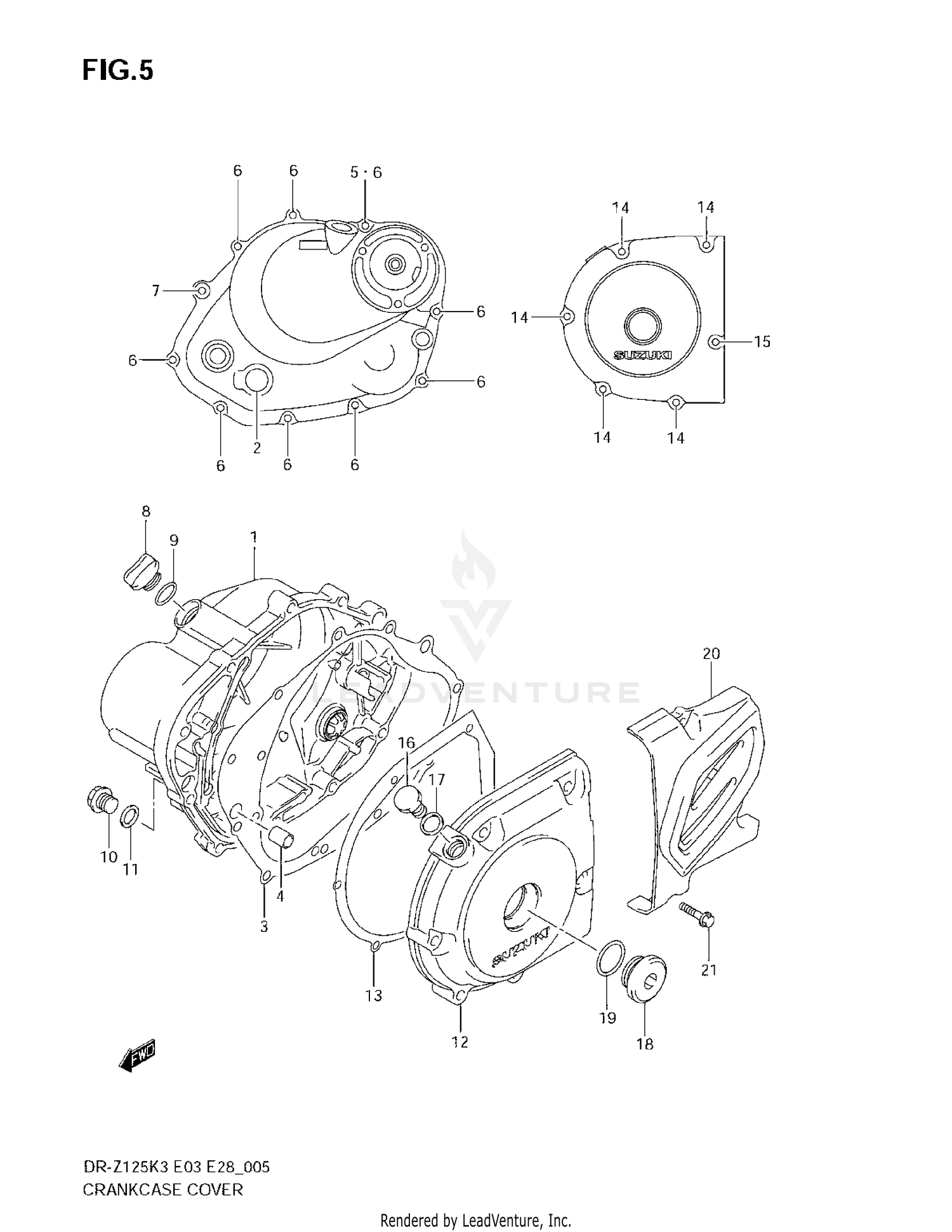

2003 Suzuki DR-Z 125 CRANKCASE COVER OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, CLUTCH
11340-42A30
|
$216.72 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
LENS, OIL LEVEL
11971-45010
|
$17.26 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
GASKET, CLUTCH COVER
11482-05211
|
$13.27 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
KNOCK PIN
04211-13189
|
$2.15 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
GASKET (5.8X13X1.2)
09168-06023
|
$2.00 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
BOLT, FINAL GEAR CASE
01547-06303
Superseded by 01547-0630B
|
$2.68 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
BOLT
01547-0630A
|
$2.28 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
BOLT
01547-06453
Superseded by 01547-0645B
|
$2.68 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
BOLT
01547-0645A
|
$2.36 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
PLUG, ENGINE OIL FILLER
11971-25D00
|
$5.28 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
O RING (D:3.1,ID:16.8)
09280-17003
|
$1.62 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
PLUG, OIL CHECK
09247-14026
|
$3.75 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
GASKET (13.8X18.8X0.4)
09168-14002
|
$2.25 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
COVER, MAGNETO
11351-08G00
Superseded by 11351-08G30
|
$138.04 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
COVER, MAGNETO
11351-08G30
|
$138.04 | ||
|
Unavailable |
|||
|
#13
GASKET, MAGNETO COVER
11483-05210
|
$7.84 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
BOLT, FINAL GEAR CASE
01547-06303
Superseded by 01547-0630B
|
$2.68 | ||
|
Unavailable |
|||
|
#14
BOLT
01547-0630A
|
$2.28 | ||
|
Unavailable |
|||
|
#15
BOLT
01547-06403
Superseded by 01547-0640B
|
$2.68 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
BOLT
01547-0640A
|
$2.28 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
PLUG, TDC
09247-12103
|
$2.68 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
GASKET (12X16X2)
09168-12002
|
$1.57 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
PLUG, CRANKSHAFT HOLE
09259-26011
|
$11.00 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
O RING (D:3.1,ID:22.7)
09280-22008
|
$1.94 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
COVER, ENGINE SPROCKET
11360-08G00
|
$61.35 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
BOLT
01547-05303
Superseded by 01547-0530B
|
$2.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
BOLT
01547-0530A
|
$2.07 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
