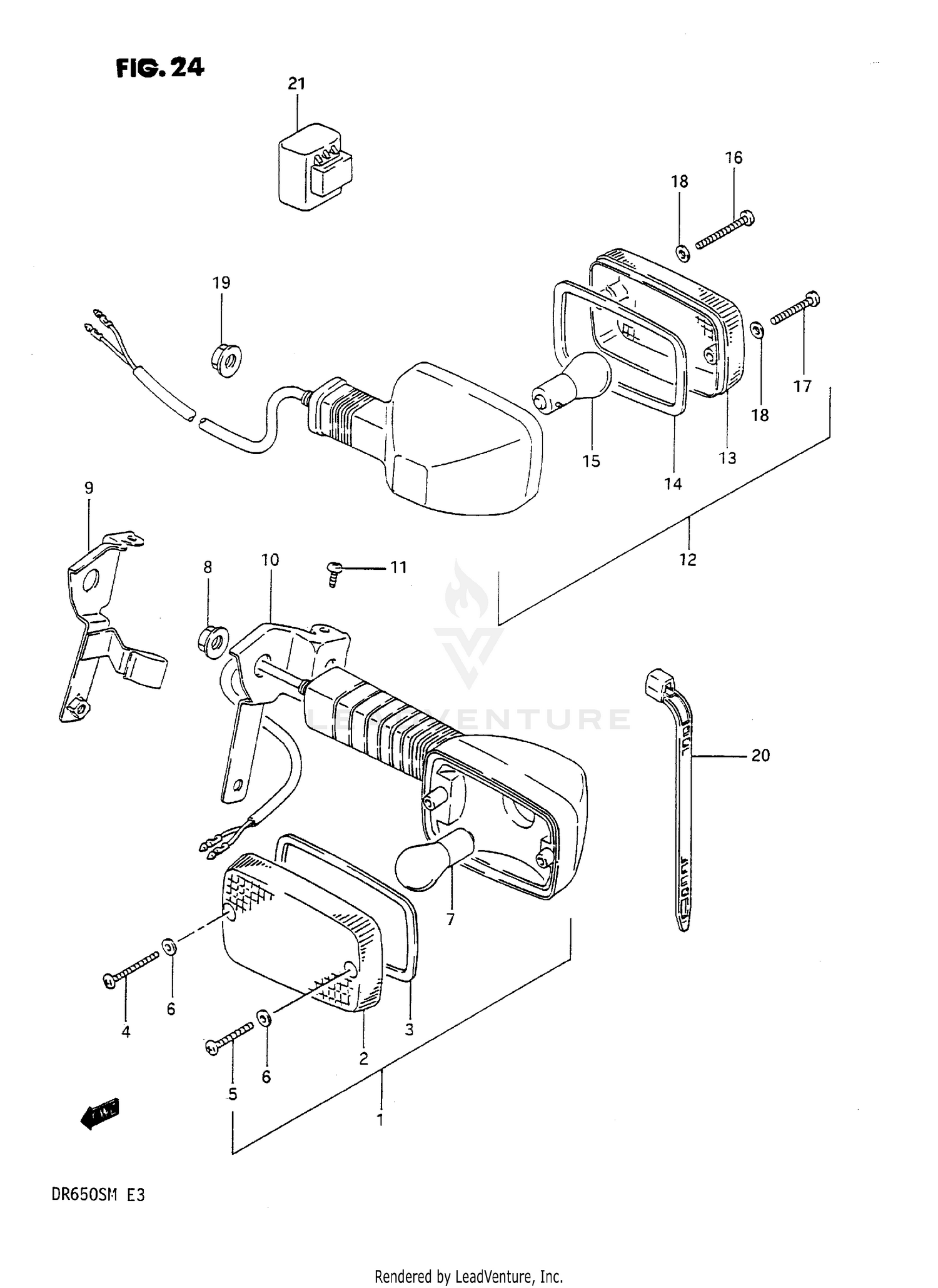

1990 Suzuki DR650SL TURN SIGNAL LAMP OEM Parts Diagram

< Back to Assembly Types

Item	MSRP	Qty
#1 LAMP ASSY, REAR TURN SIGNAL 35601-14A53-999 Superseded by 35603-44A31-999	$106.17
Available: Ships in 7-12 days. Add to View Price
#1 LAMP ASSY, REAR TURN SIGNAL 35601-14A52-999 Superseded by 35603-44A31-999	$106.17
Unavailable
#2 LENS 35612-02181	$8.94
Available: Ships in 7-12 days. Add to View Price
#3 GASKET 35613-48700	$4.26
Available: Ships in 7-12 days. Add to View Price
#4 SCREW (4X38) 35623-02180	$1.10
Unavailable
#5 SCREW 03211-04308 Superseded by 03211-04306	$1.74
Available: Ships in 7-12 days. Add to View Price
#6 GASKET 35627-43010	$2.07
Available: Ships in 7-12 days. Add to View Price
#7 BULB (12V,23W) 09471-12006	$3.37
Available: Ships in 7-12 days. Add to View Price
#8 NUT 08316-26105 Superseded by 08316-2010B	$3.39
Available: Ships in 7-12 days. Add to View Price
#9 BRACKET, FRONT RH 35670-14A00	$8.28
Unavailable
#10 BRACKET, FRONT LH 35680-14A00	$7.27
Unavailable
#11 SCREW 02112-35106 Superseded by 02112-3510B	$2.19
Available: Ships in 7-12 days. Add to View Price
#12 LAMP ASSY,RR TR 35603-14A32 Superseded by 35603-06B30-999	$84.85
Available: Ships in 7-12 days. Add to View Price
#13 LENS 35652-02181	$8.15
Available: Ships in 7-12 days. Add to View Price
#14 GASKET 35613-48700	$4.26
Unavailable
#15 BULB (12V,23W) 09471-12006	$3.37
Unavailable
#16 SCREW 35623-02180	$1.10
Unavailable
#17 SCREW 03211-04308 Superseded by 03211-04306	$1.74
Unavailable
#18 GASKET 35627-43010	$2.07
Unavailable
#19 NUT 08316-26105 Superseded by 08316-2010B	$3.39
Unavailable
#20 CLAMP 09407-14403	$2.21
Available: Ships in 7-12 days. Add to View Price
#21 RELAY ASSY, TURNSIGNAL 38610-31310 Superseded by 38610-31X50	$70.22
Available: Ships in 7-12 days. Add to View Price
