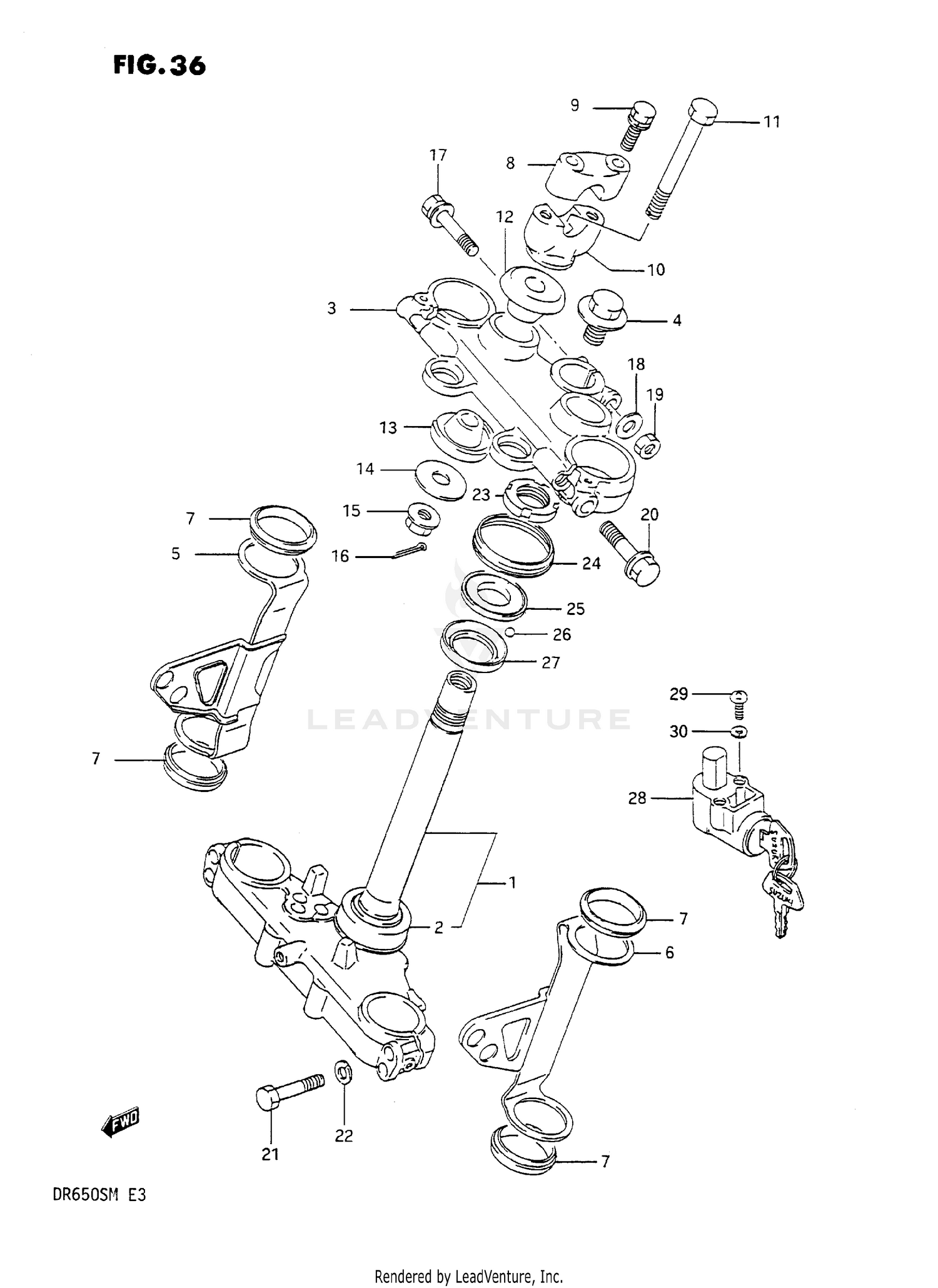

1990 Suzuki DR650SL STEERING STEM OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STEM, STEERING
51410-14A20
Superseded by 51410-14A30
|
$340.88 | ||
|
Unavailable |
|||
|
#1
STEM, STEERING
51410-14A30
|
$340.88 | ||
|
Unavailable |
|||
|
#2
RT 30X55X17 BEA
09265-30009
Superseded by 09265-30034
|
$56.65 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
STEM HEAD, STEERING
51311-14A20
|
$167.07 | ||
|
Unavailable |
|||
|
#4
BOLT
51353-14A00
|
$6.87 | ||
|
Unavailable |
|||
|
#5
BRACKET, HEADLAMP, RH
51530-14A20
|
$31.12 | ||
|
Unavailable |
|||
|
#6
BRACKET, HEADLAMP, LH
51540-14A20
|
$32.56 | ||
|
Unavailable |
|||
|
#7
DAMPER,HEADLAMP
51553-14A20
Superseded by 51553-38C01
|
$9.00 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
CLAMP, HANDLEBAR UPPER
56211-27210-019
Superseded by 56211-29320-291
|
$15.97 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
BOLT
01147-08355
Superseded by 01570-0835A
|
$3.12 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
HOLDER, HANDLE LOWER (BLACK)
56221-14330-291
|
$46.71 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
BOLT
51321-14200
Superseded by 56321-28C00
|
$8.52 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
DAMPER, UPPER
56241-14A00
|
$34.67 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
DAMPER, LOWER
56242-14200
|
$37.18 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
WASHER
51356-40400
Superseded by 09160-10035
|
$1.75 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
NUT
08319-31107
|
$2.68 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
PIN
04111-20308
Superseded by 04111-2030A
|
$1.25 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
BOLT
01127-08505
|
|||
|
Unavailable |
|||
|
#18
WASHER
08322-11084
Superseded by 08322-0108A
|
$1.81 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
NUT
08310-12085
Superseded by 08310-0008A
|
$1.81 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
BOLT
01517-10455
|
|||
|
Unavailable |
|||
|
#21
BOLT
01107-08455
Superseded by 01500-08453
|
$2.47 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#22
LOCK WASHER
08321-31084
Superseded by 08321-0108A
|
$1.81 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#23
NUT, STEERING STEM
51631-40200
|
$15.84 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#24
DUST SEAL
51643-40200
|
$8.20 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#25
RACE,STEERING O
51621-40200
Superseded by 51621-08D00
|
$19.80 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#26
BALL
06111-08003
|
$1.25 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#27
RACE, STEERING INNER UPPER
51611-40201
|
$14.36 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#28
LOCK ASSY, STEERING
51900-30831
|
$32.51 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#29
SCREW
02112-05128
Superseded by 02112-05127
|
$1.94 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#30
LOCK WASHER
08321-21057
Superseded by 08321-0105A
|
$1.81 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
