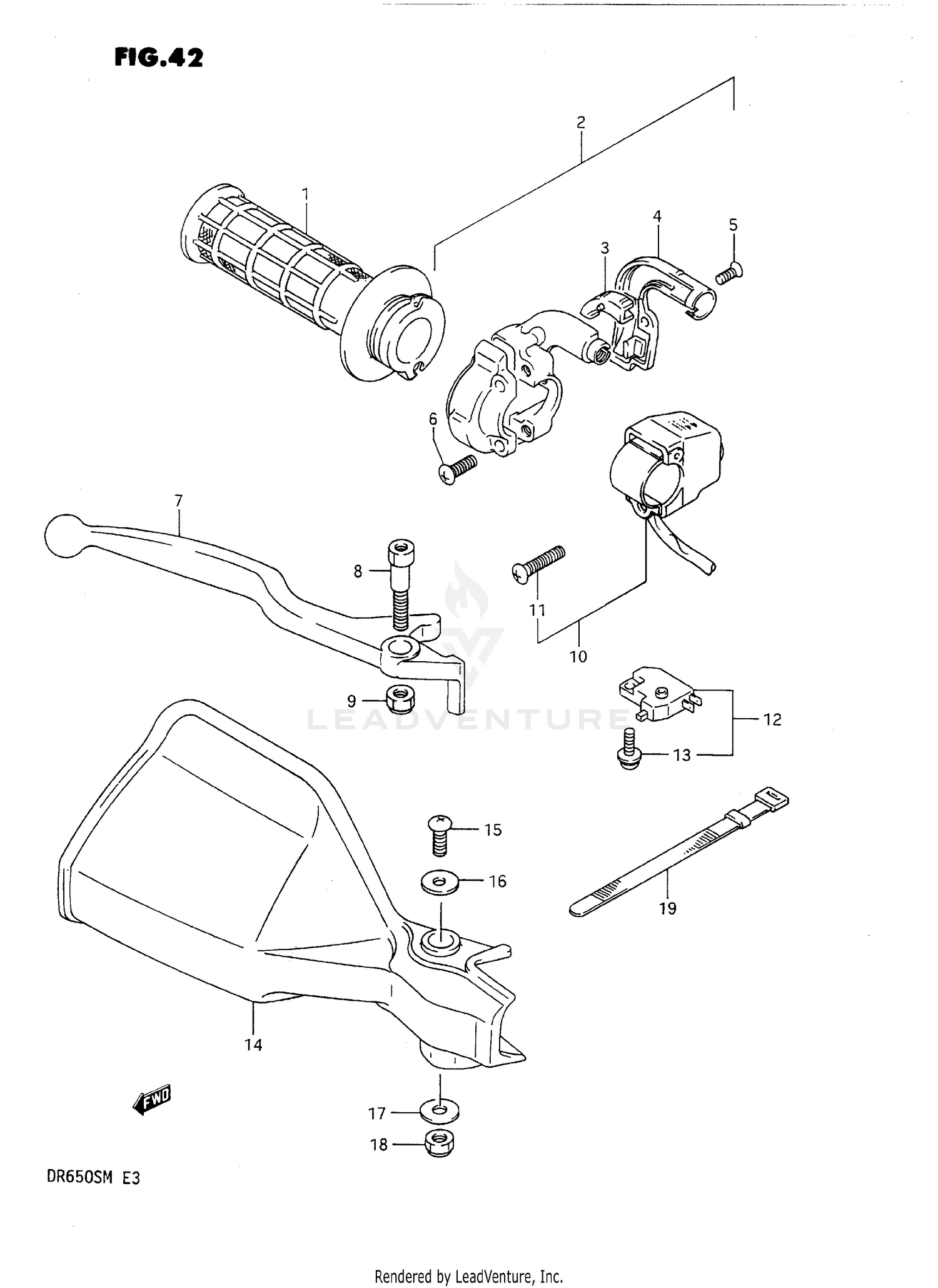

1990 Suzuki DR650SL RIGHT HANDLE SWITCH OEM Parts Diagram

< Back to Assembly Types

Item	MSRP	Qty
#1 GRIP, THROTTLE 57110-12D00	$35.39
Available: Ships in 7-12 days. Add to View Price
#2 CASE ASSY, THROTTLE 57100-28B00 Superseded by 57100-13601	$79.21
Available: Ships in 7-12 days. Add to View Price
#3 PIECE 57122-13600	$5.73
Available: Ships in 7-12 days. Add to View Price
#4 COVER 57129-13601	$10.46
Available: Ships in 7-12 days. Add to View Price
#5 SCREW 02132-04105 Superseded by 02122-0410A	$1.21
Available: Ships in 7-12 days. Add to View Price
#6 SCREW 02112-05164	$2.23
Available: Ships in 7-12 days. Add to View Price
#7 LEVER 57421-13001	$14.41
Available: Ships in 7-12 days. Add to View Price
#8 BOLT 57431-05D00	$11.58
Available: Ships in 7-12 days. Add to View Price
#9 .NUT 08319-21068 Superseded by 08319-2106A	$1.88
Available: Ships in 7-12 days. Add to View Price
#10 SWITCH ASSY,HAN 37200-14A10 Superseded by 37200-44E00	$80.13
Available: Ships in 7-12 days. Add to View Price
#11 SCREW 02112-05166 Superseded by 02112-0516A	$1.40
Available: Ships in 7-12 days. Add to View Price
#12 SWITCH ASSY,FRONT BRAKE 57460-17C00 Superseded by 57460-14J02	$39.82
Available: Ships in 7-12 days. Add to View Price
#13 SCREW 57465-17C00	$1.94
Available: Ships in 7-12 days. Add to View Price
#14 COVER, KNUCKLE RH (BLUE) 57341-05D00-0NF	$35.26
Available: Ships in 7-12 days. Add to View Price
#15 SCREW 09125-05042	$1.94
Available: Ships in 7-12 days. Add to View Price
#16 WASHER (5.5X16X1.2) 09160-05017 Superseded by 09160-05043	$2.15
Available: Ships in 7-12 days. Add to View Price
#17 WASHER (6.5X16X1.6) 09160-06042 Superseded by 09160-06130	$1.88
Available: Ships in 7-12 days. Add to View Price
#18 .NUT 08319-21068 Superseded by 08319-2106A	$1.88
Unavailable
#19 BAND 09407-12402	$3.02
Available: Ships in 7-12 days. Add to View Price
